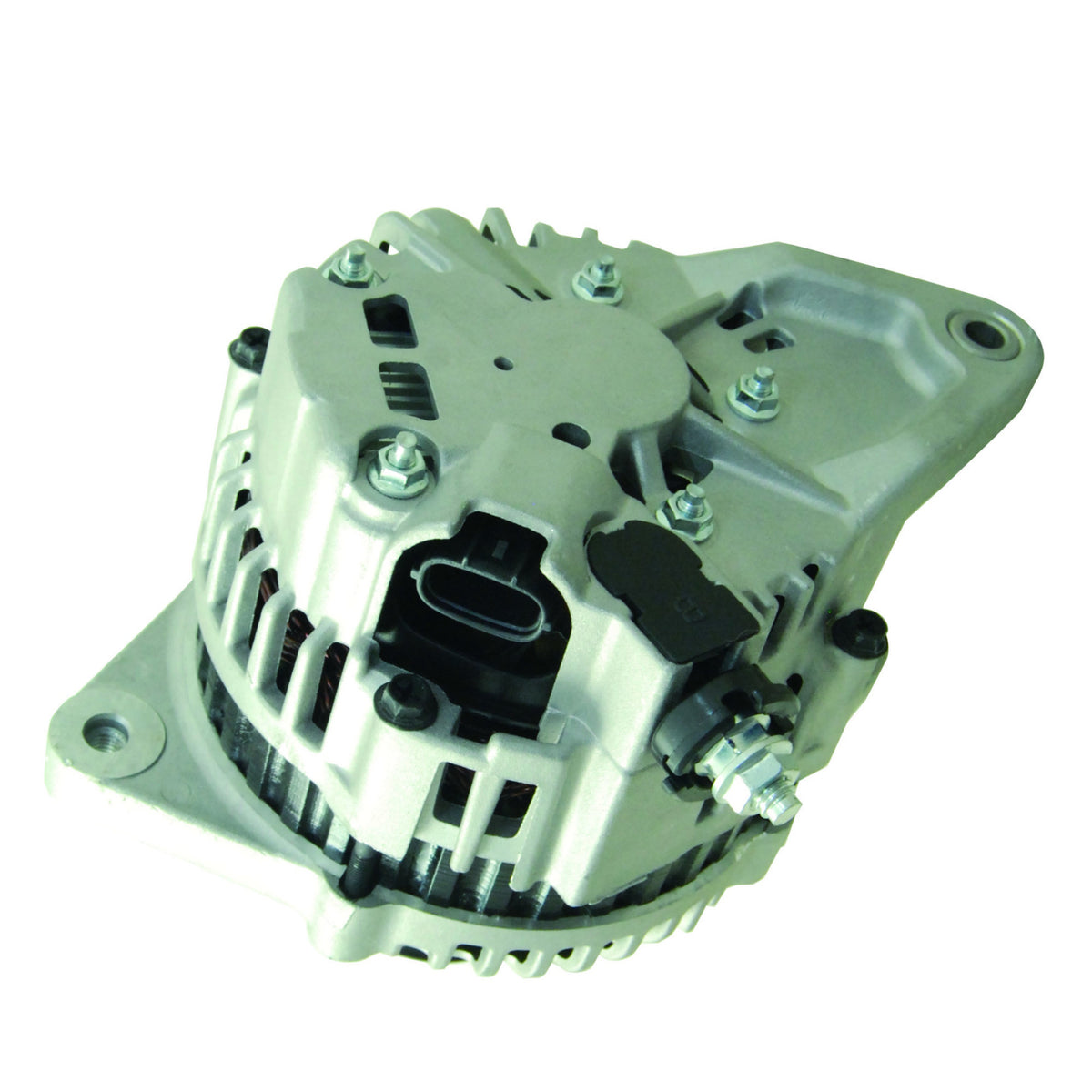

Alternator 2001 Legacy Outback 2.5L A/T Hitachi LR190-742 - 13829

Subaru
Legacy 2.5L 2458CC 2001 Base; Naturally Aspirated; EJ253; Hitachi; Automatic
Outback 2.5L 2458CC 2001 Base; Naturally Aspirated; EJ253; Hitachi; Automatic

Alternator Manufacturer and Factory #s
ACDelco 334-1371
Arrowhead AHI0086
Bosch Aftermarket AL4304X (Reman)
Hitachi ALR0048, LR190-742
Lester 13829
J&N 400-44036
Subaru 23700-AA31A
Wilson 90-25-1146

Manufacture Hitachi
Amperage Rating 90
Decoupled Or Clutch Pulley No
Design IR/IF
Fan Type Internal
Ground Type Negative
Oe Manufacturer Hitachi
Plug Clock Rear View Main Mounting Ear At 6 O Clock 11
Plug Code 319
Plug Type 319
Pulley Belt Type Serpentine
Pulley Diameter 55
Pulley Groove Quantity 5
Pulley Type S5
Regulator Type Internal
Rotation Direction Clockwise (Right)
Type Alternator
Voltage 12

Alternator Rebuild Kit 13829RK-A
6303-2RS C3 BEARING 1 W02X-11-1 54700 6-303-4W
B10-50D BEARING-10x27x11mm 1 W02X-31-1 1900905164 10-1050-4W
BRUSH-5x8x26mm 21H 2 W035-20
COVER 46-81407
HITACHI DIODE-NEG 50A AVL 23V 4 W045-04
HITACHI DIODE-POS 50A AVL 23V 4 W045-05

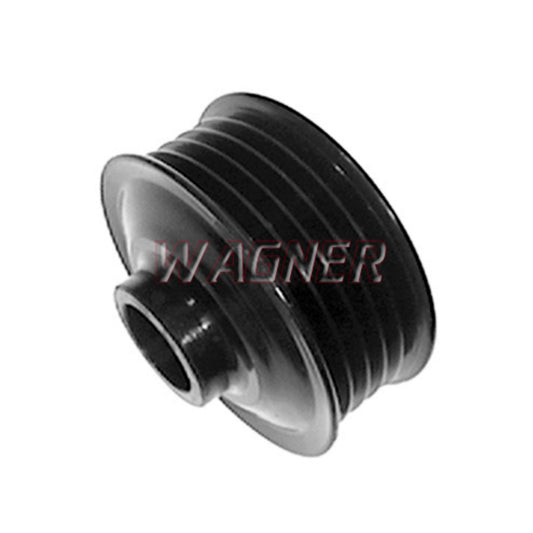

PULLEY 5GRV 55mm OD 1 W055-68 205-44000 L170-55002

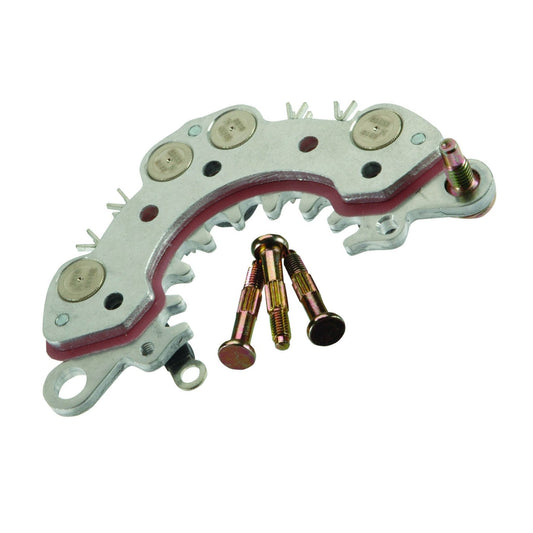

RECTIFIER M6 B+ 1 W065-187 IHR742

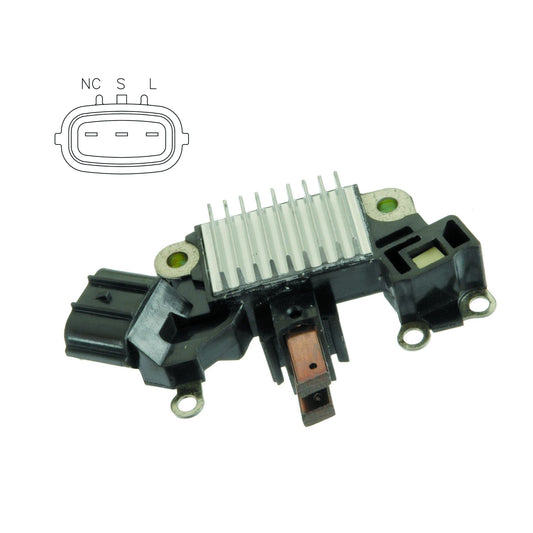

REGULATOR D-S-L 1 W085-231 IH742
STATOR-90A W/O EYE 1 W105-17 L190G2200 27-8108

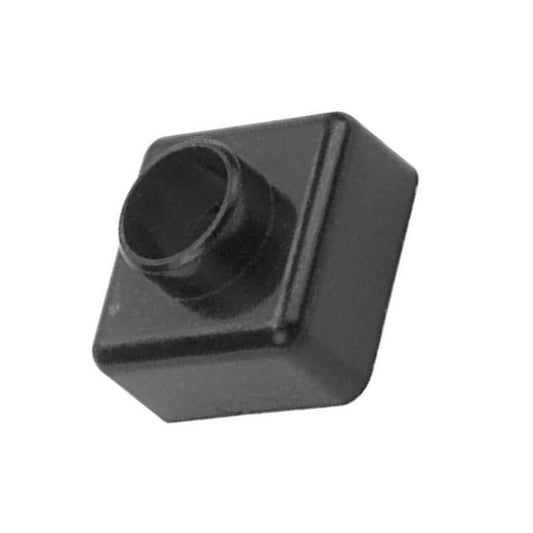

B+ POST INSULATOR 1 W115-135 42-81310
B+ EXTENDER SET 8mm 1 W115-170
BRG RETAINER 1 W115-94
B+ COVER-SNAP STYLE 1 W115-97
DE FRAME SUBARU 1 W135-04
Rotor L170-41002
SLIP RING 28-81856
