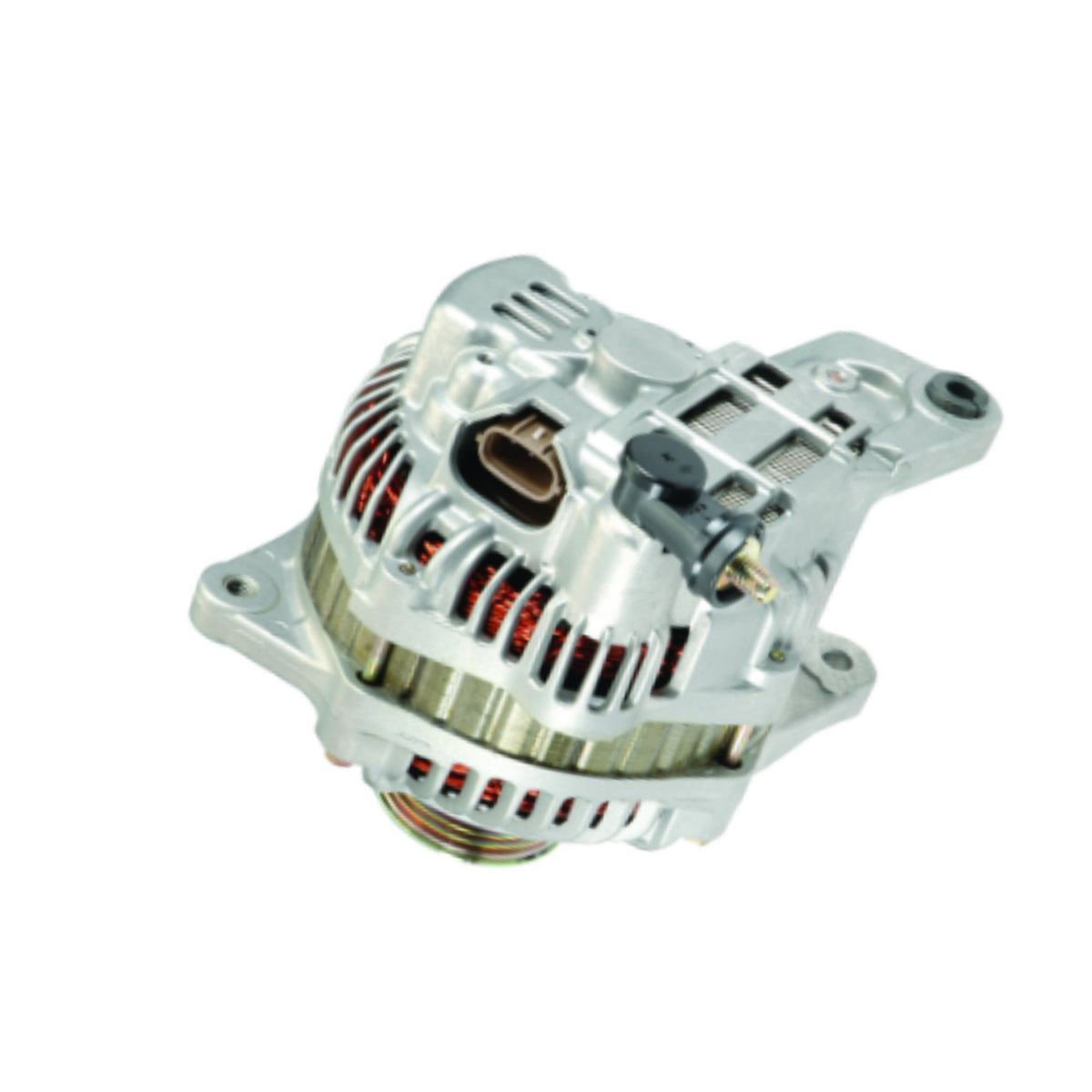

Alternator 2006-2009 Subaru Legacy Outback 2.5L w/Turbo, 2005 models without Turbo - 11024

Subaru Legacy H4 2.5L Turbo 2006-2009
Subaru Legacy H4 2.5L wo/Turbo 2005
Subaru Outback H4 2.5L Turbo 2006-2009
Subaru Outback H4 2.5L wo/Turbo 2005

Alternator Manufacturer and Factory #s
Bosch Remanufactured AL4309X
Excel 10849
Hollander 60923
Lester 11024
Lucas Electrical Europe LRA03102
Mitsubishi A003TG2391, A003TG2391ZC, A003TG2391ZSB, A3TG2391, A3TG2391ZC
Subaru 23700-AA55A
PIC# 203-424
PIC Old 203-417A

Manufacture Mitsubishi
Amperage Rating 110
Decoupled Or Clutch Pulley No
Design IR/IF
Family A3TG
Fan Type Internal
Ground Type Negative
Oe Manufacturer Mitsubishi
Plug Clock Rear View Main Mounting Ear At 6 O Clock 11
Plug Code 319
Plug Type 319
Pulley Belt Type Serpentine
Pulley Diameter 55
Pulley Groove Quantity 5
Pulley Type S5
Regulator Type Internal
Rotation Direction Clockwise (Right)
Type Alternator
Voltage 12

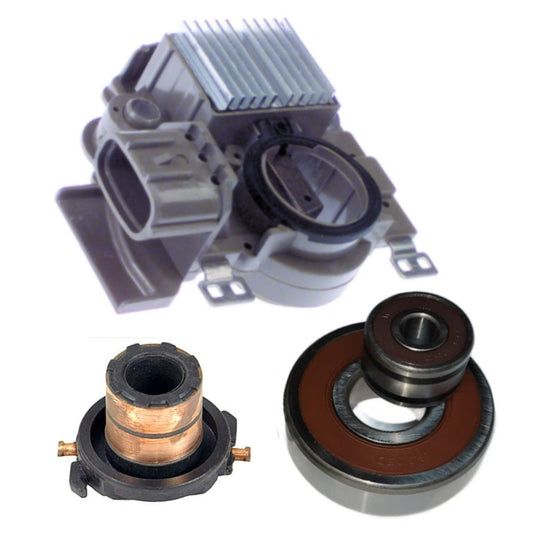

Alternator Rebuild Kit 11024RK-A
R6203-2RS C3 BEARING 1 W02X-07-1 54000 6-203-4
B8-23D BEARING-8x23x14mm 1 W02X-50-1 52312 10-800-4

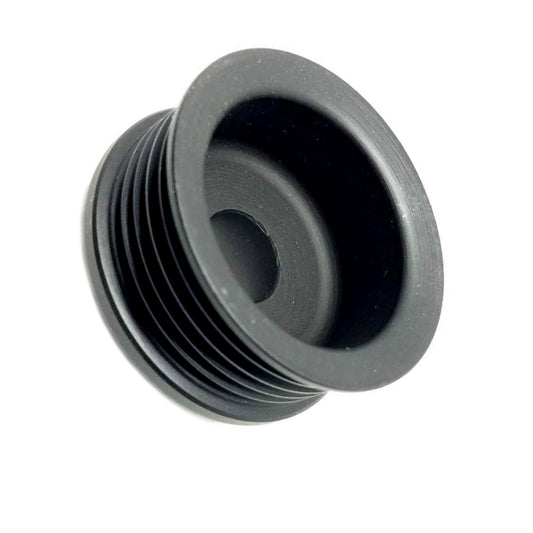

PULLEY 5GRV 55mm OD 1 W055-94

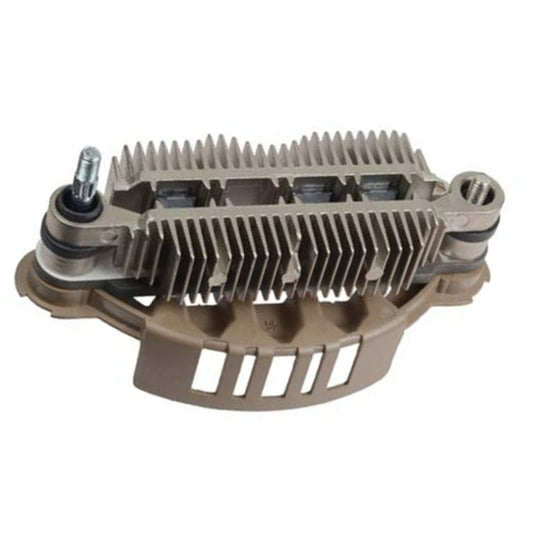

RECT SUBARU OUTBACK 1 W065-225 77033151

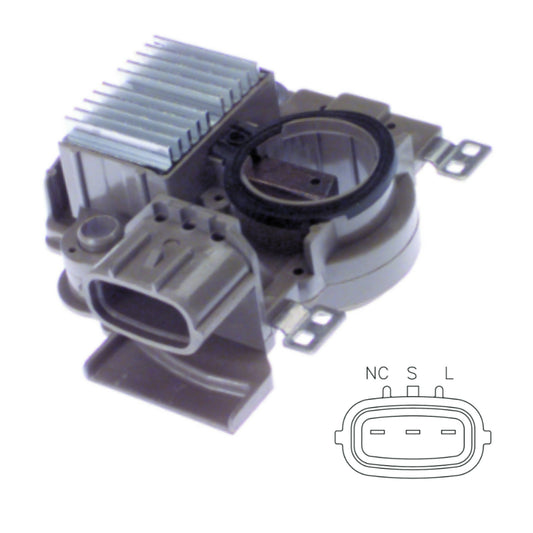

INT REG-13820 SUBARU D-S-L 1 W085-228 T52014 80033116
Plug 9801319

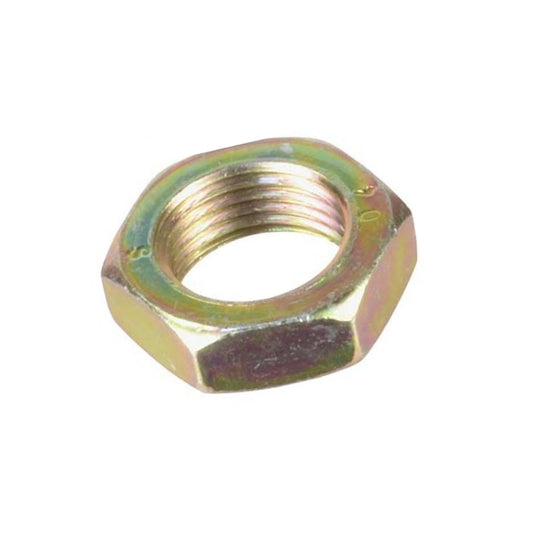

PULLEY NUT-17x1.5mm 1 W112-01

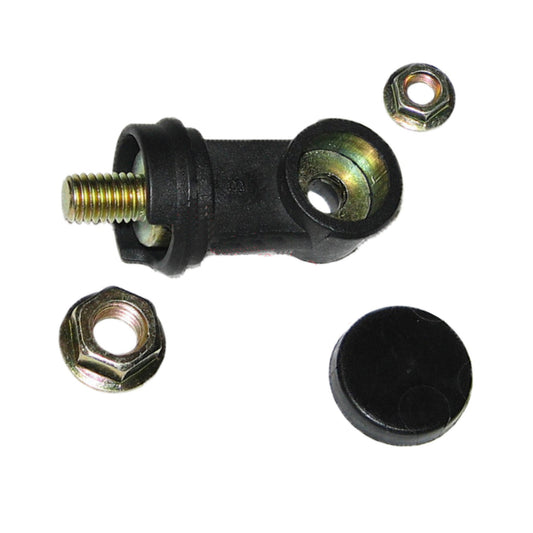

B+ TERM EXT SUBR M8 1 W115-197
SRE FRAME 1 W125-44
DE FRAME 1 W135-55
SLIP RING-13.5mm, 23mm OD 1 W165-10 710312
