Alternator 2006-2009 Milan Fusion 2.3L A3TJ0891, A3TJ0891ZC - 11172

Ford Fusion L4 2.3L 2006-2009
Mercury Milan L4 2.3L 2006-2009

Alternator Manufacturer and Factory #
Bosch Aftermarket AL7645X (Reman)
DENSO Auto Parts 210-4310
Ford 6E5T-10300-AB, 6E5T-10300-AD, 6E5Z-10346-AA, 6E5Z-10V34-6AAR, 6E5Z-10V346-ABRM, 6E5Z-10V346AA-RM, 7E5T-10300-AA, 7E5T-10300-AB, 6E5T-AB, 6E5T-AD, 7E5T-AA
HC CARGO 113781
Lester 11172
Mitsubishi Electric A003TJ0891, A003TJ0891ZC, A3TJ0891, A3TJ0891ZC
Motorcraft GL-668
JN 400-48215
PIC Picture ID 203-5081
Remy Light Duty 12662
Wilson 90-27-3347

Manufacture Mitsubishi
Amperage Rating 150
Decoupled Or Clutch Pulley No
Design IR/IF
Family A3TJ
Fan Type Internal
Ground Type Negative
OEM Manufacturer Mitsubishi
Plug Clock 3
Plug Clock Rear View Main Mounting Ear At 6 O Clock 3
Plug Code 337
Plug Type 337
Pulley Belt Type Serpentine
Pulley Diameter 52
Pulley Groove Od 52
Pulley Groove Quantity 6
Pulley Type S6
Regulator Type Internal
Rotation Direction Clockwise (Right)
Type Alternator
Voltage 12

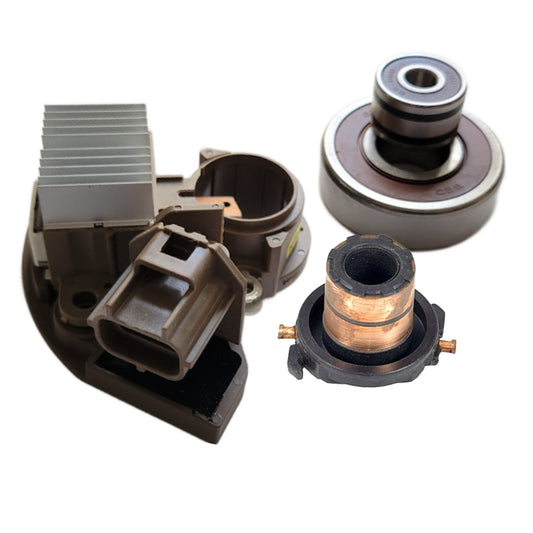

Alternator Rebuild Kit 11172RK-A
BEARING 10-800-4W 6-303-4W
NUT 85-2701
RECTIFIER IMR12800
REGULATOR & BRUSH HOLDER IM529

FORD REPAIR LEAD-6G F14-03
6303-2RS C3 BEARING W02X-11-1
B8-23D BEARING-8x23x14mm W02X-50-1
RECTIFIER FORD TR21001 W065-227
INT REGULATOR T52015 W085-259
PULLEY NUT-17x1.5mm W112-01
CAPACITOR PLATE CHRY W115-218

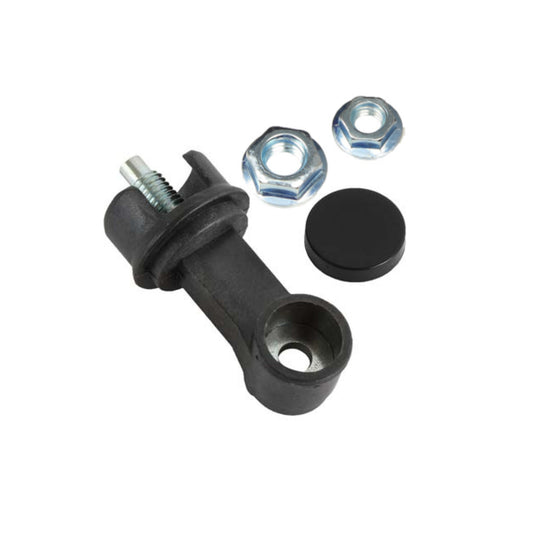

B+ TERM EXT-11270 FORD M8 W115-234
SLIP RING-13.5mm, 23mm OD W165-10
