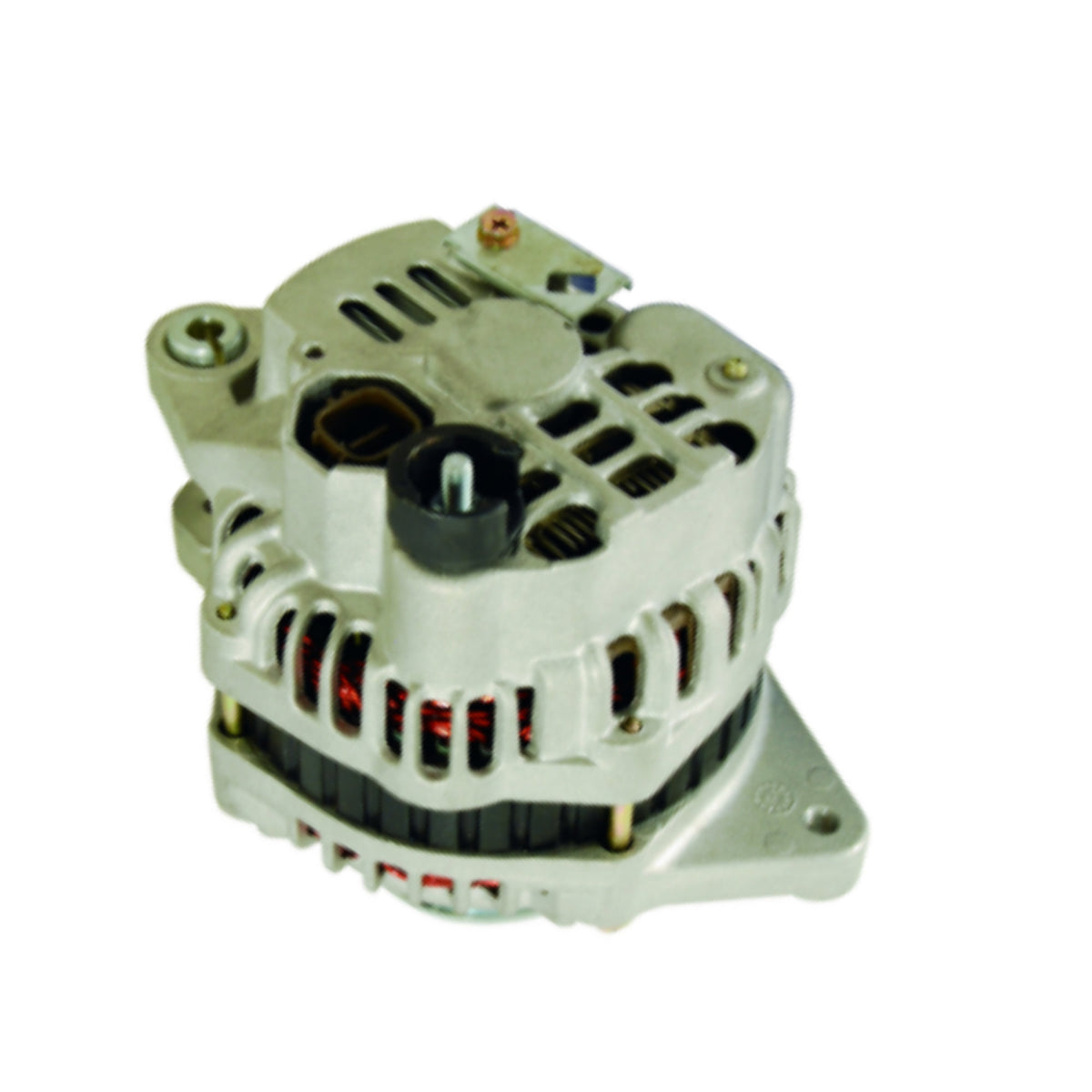

Alternator 2007-2008 Honda Fit A5TB1391 - 11177

Honda Fit L4 1.5L 1497CC 2007-2008

Alternator Manufacturer and Factory #s
Bosch Aftermarket AL1304X (Reman)
Bosch Service Europe 0-986-080-570, 0-986-UR0-403
Delco Reman Europe DRA0143
DENSO Aftermarket Auto Parts 210-4299
Honda 31100-RSH-004, AHGA69
Lester 11177
Lucas (Europe) LRA02544
Mitsubishi A005TB1391, A005TB1391ZC, A5TB1391

Manufacture Mitsubishi
Amperage Rating 80
Decoupled Or Clutch Pulley No
Design IR/IF
Family A5TB
Fan Type Internal
Ground Type Negative
Oe Manufacturer Mitsubishi
Plug Clock Rear View Main Mounting Ear At 6 O Clock 4
Plug Code 933
Pulley Belt Type Serpentine
Pulley Diameter 65
Pulley Groove Quantity 5
Pulley Type S5
Regulator Type Internal
Rotation Direction Clockwise (Right)
Type Alternator
Voltage 12

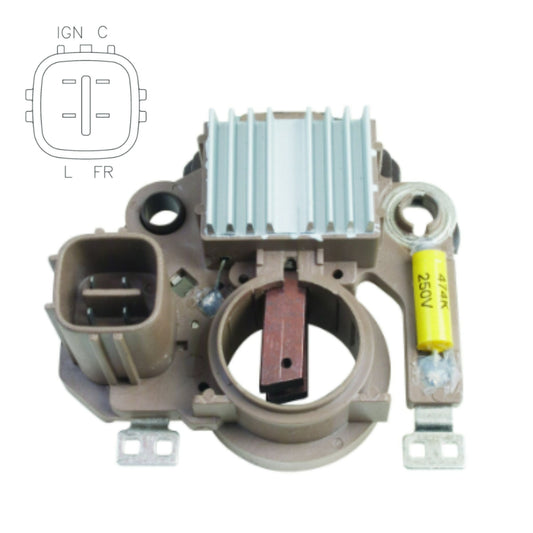

Voltage Regulator with Brushes - Specifications: 12 Volt, A-Circuit, G-C-L-FR Terminals, 14.6 Voltage Set Point, for Mitsubishi IR/IF Alternators, Standard lamp function - no output., G-terminal = IG, Soft start, LRC, System Voltage: 12 // Replaces: Honda 31150-RSH-004, Mitsubishi 582, 5828206C, 5828219G, Other: IM582, VRH2009-119, 230-48128, 80033117, W085-305, 196-105 - IM582

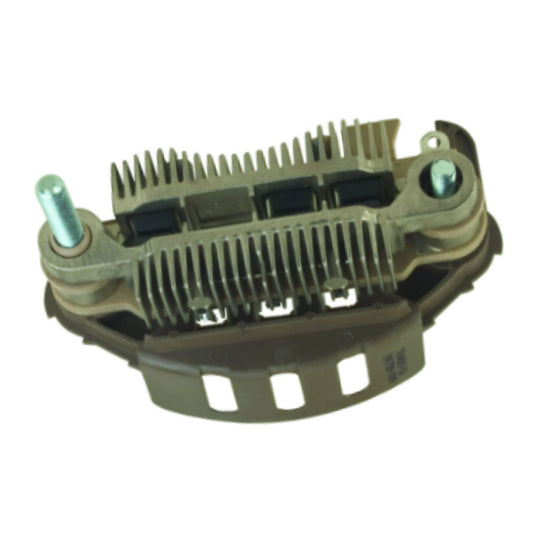

Rectifier W065-223
Drive End Bearing 54700 17x47x14mm 6303-2RS - 6-303-4W
SRE Rotor Bearing 52312 8x23x14mm B8-23D - 10-800-4
Slip Rings for Mitsubishi Alternators 13.5mm ID x 22.7mm OD Replaces: 710312, 313-48001, W165-10, 193-501 - 28-83852
BRUSHES-5x8x24mm CLIP W035-21 38-8307x2
Rectifier W065-223
PULLEY NUT-17x1.5mm IAT 14472 W112-01
SLIP RING SEAL-INFINITI W115-87
