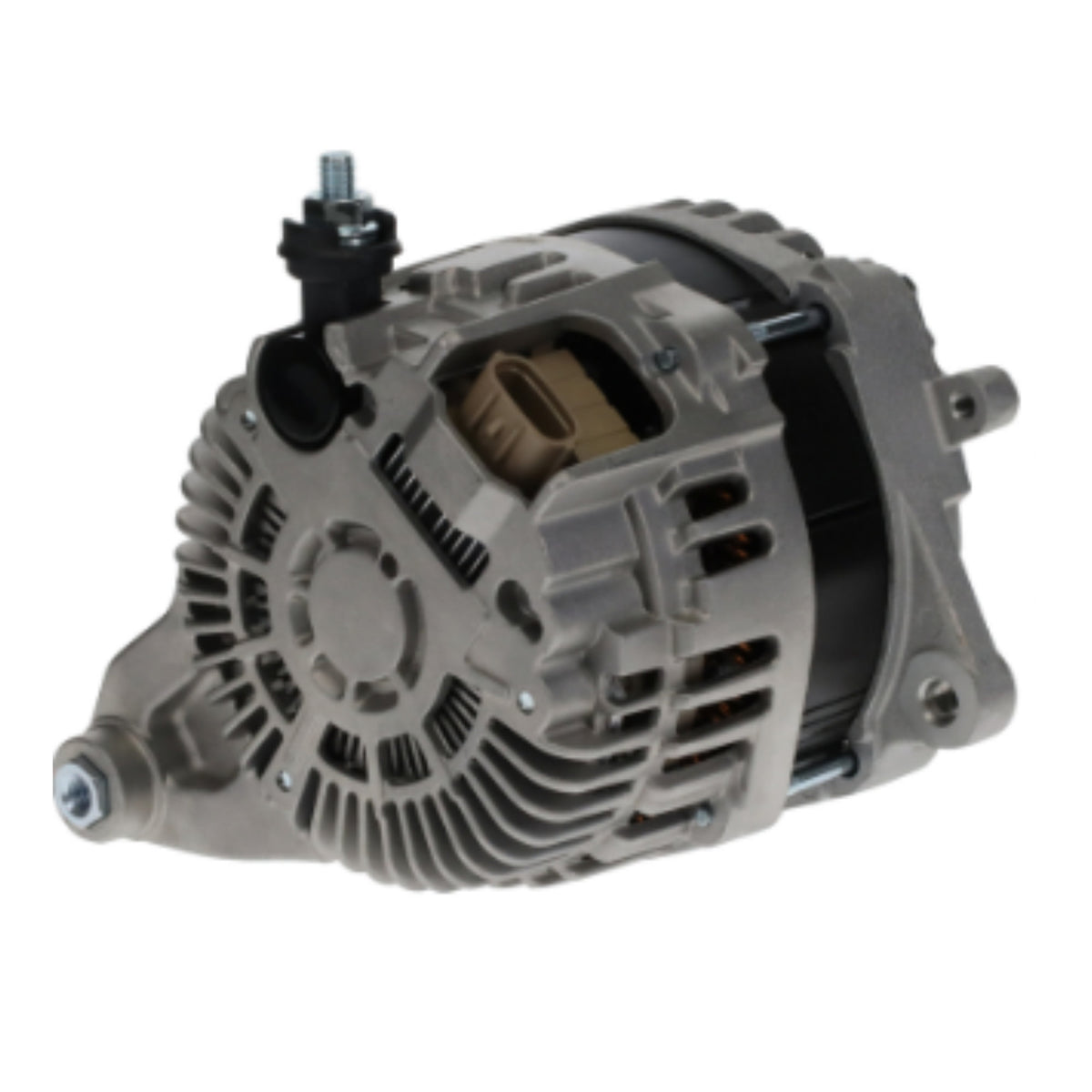

Alternator 3.0L 2008-2009 Legacy, 2006-2009 Outback, 2006-2007 B9 Tribeca 110 Amp A3TG0591 - 11225

Subaru Car
Legacy H6 3.0L 3000cc 2008-2009
Outback H6 3.0L 3000cc 2006-2009
Subaru Truck
B9 Tribeca H6 3.0L 3000cc 2006-2007

Alternator Manufacturer and Factory #s
Bosch Remanufactured AL4312X
Bosch Service Europe 0-986-UR0-322
DENSO Auto Parts 210-4245
Excel 10949
Hollander 60973
Lester 11225
Lucas Electrical Europe LRA02909
Mitsubishi A003TG0591, A003TG0591ZC, A3TG0591, A3TG0591ZC
Subaru 23700-AA510, 23700AA510
PIC# 203-425

Manufacture Mitsubishi
Amperage Rating 110
Decoupled Or Clutch Pulley No
Design IR/IF
Family A3TG
Fan Type Internal
Ground Type Negative
Oe Manufacturer Mitsubishi
Plug Clock Rear View Main Mounting Ear At 6 O Clock 11
Plug Code 325
Pulley Belt Type Serpentine
Pulley Diameter 55
Pulley Groove Quantity 6
Pulley Type S6
Regulator Type Internal
Rotation Direction Clockwise (Right)
Type Alternator
Voltage 12

Alternator Rebuild Kit 11225RK-A
R6203-2RS C3 BEARING 1 W02X-07-1 52312
B8-23D BEARING-8x23x14mm 1 W02X-50-1 54000
BRUSH-5x8x24mm CLIP 1 W035-21
REG-13888 SUBARU C-S-L W085-273 80033098B
Plug 9801325
PULLEY NUT-17x1.5mm 1 W112-01
Pulley 79033042
Stator 72038340
