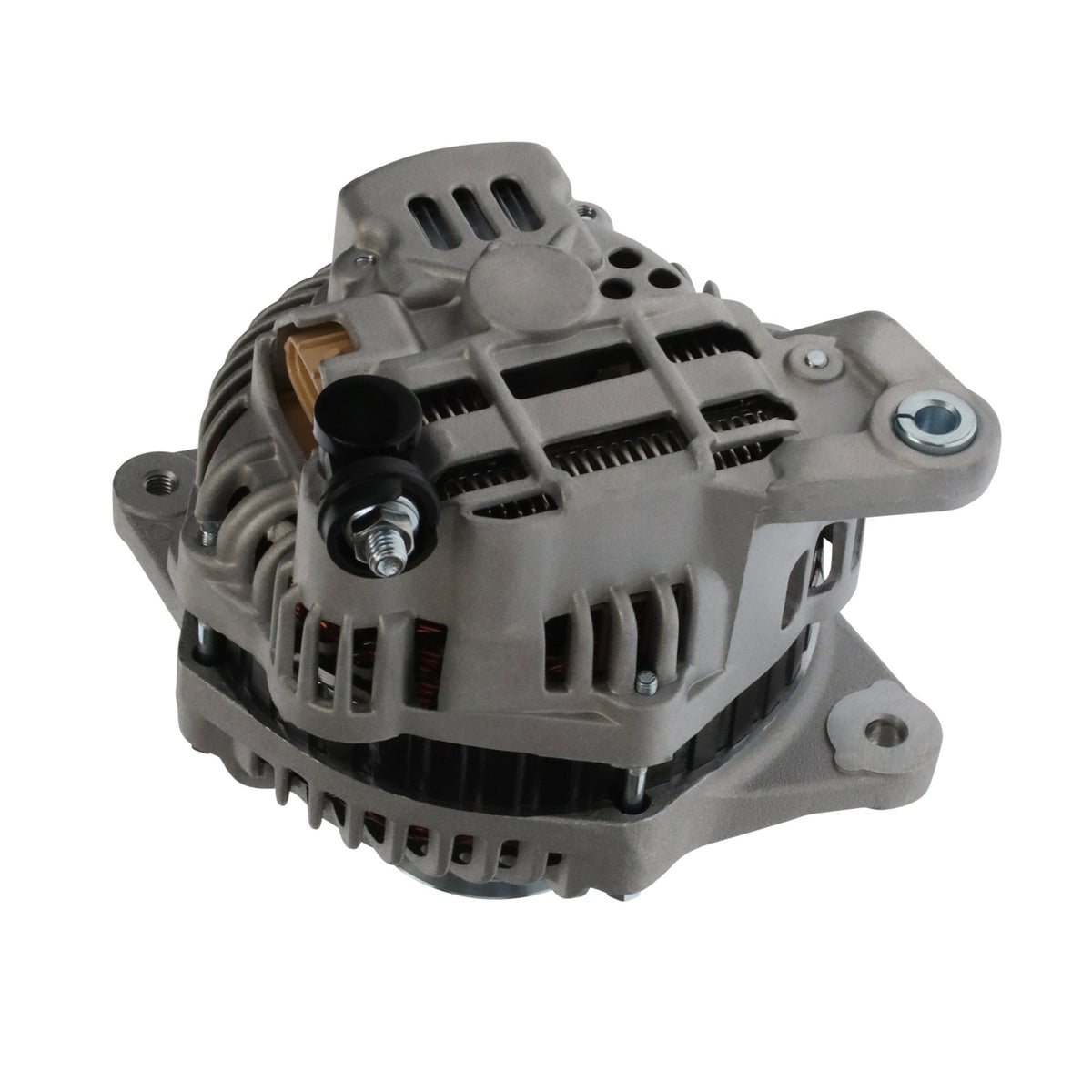

Alternator 2006-2010 Subaru Forester Impreza Turbo, 2005 Legacy Outback Turbo A3TG0491, A3TG4291 - 11226

Saab
9-2X H4 2.5L 2458CC 2006 110 Amp Aero EJ255
Subaru Car
Impreza H4 2.5L 2458CC 2006-2010 Turbocharged
Legacy H4 2.5L 2458CC 2005 Turbocharged
Outback H4 2.5L 2458CC 2005 Turbocharged
WRX H4 2.5L 2458CC 2013 Turbocharged
Subaru Truck
Forester H4 2.5L 2458CC 2006-2010 Turbocharged

Alternator Manufacturer and Factory #
Bosch Aftermarket AL4303X, AL9353X (Reman)
DENSO Auto Parts 210-4244, 210-4247
HC CARGO 115453
J&N 400-48152
Lester 11226
Lucas LRA02810, LEA0761
Mitsubishi A003TG0491, A003TG0491A, A003TG0491ZC, A3TG0491, A3TG0491A, A3TG0491ZC, A003TG4291, A3TG4291
Saab 32-01-0647
Subaru 23700-AA520, 23700-AA521, 23700-AA522, 23700-AA570


Manufacture Mitsubishi
Amperage Rating 110
Decoupled Or Clutch Pulley No
Design IR/IF
Family A3TG
Fan Type Internal
Ground Type Negative
Oe Manufacturer Mitsubishi
Plug Clock Rear View Main Mounting Ear At 6 O Clock 11
Plug Code 325
Pulley Belt Type Serpentine
Pulley Diameter 0
Pulley Groove Quantity 5
Pulley Type S5
Regulator Type Internal
Rotation Direction Clockwise (Right)
Type Alternator
Voltage 12

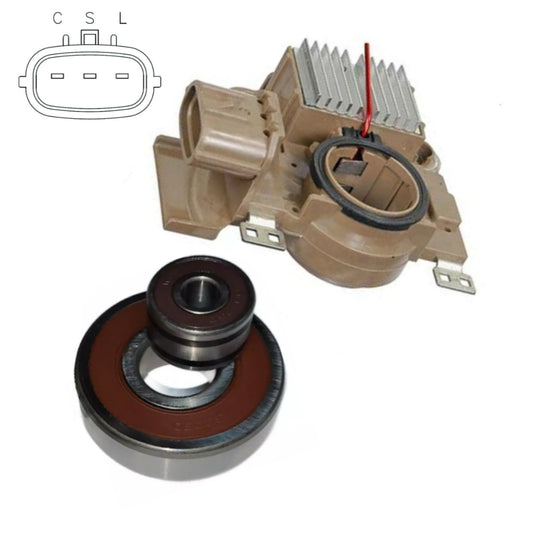

Alternator Rebuild Kit 11226RK-A
R6203-2RS C3 BEARING W02X-07-1 54000 A930X94170
B8-23D BEARING-8x23x14mm W02X-50-1 52312 S930P63670
BRUSH-5x8x24mm CLIP W035-21 38-8307x2 A647X50870
REGULATOR SUBARU C-S-L W085-273 80033098B A866X47272
Plug 9801325
PULLEY NUT-17x1.5mm W112-01 95001514 85-2701 A981X20771
Pulley 79033044 A630X88670
SLIP RING-13.5mm, 23mm OD W165-10 28-83852
Stator 72038340 A383X62070
Housing, DE OEM Version Includes Other Components 1 A640X85870
Housing, SRE OEM Version Includes Other Components 1 A642XD2870
Kit, Output Terminal 1 A450X31371
Rectifier 1 A860X87270
Rotor OEM Version Includes SRE Bearing 1 A880XA0770
Screw Set DE Bearing Retainer Attaching 1
