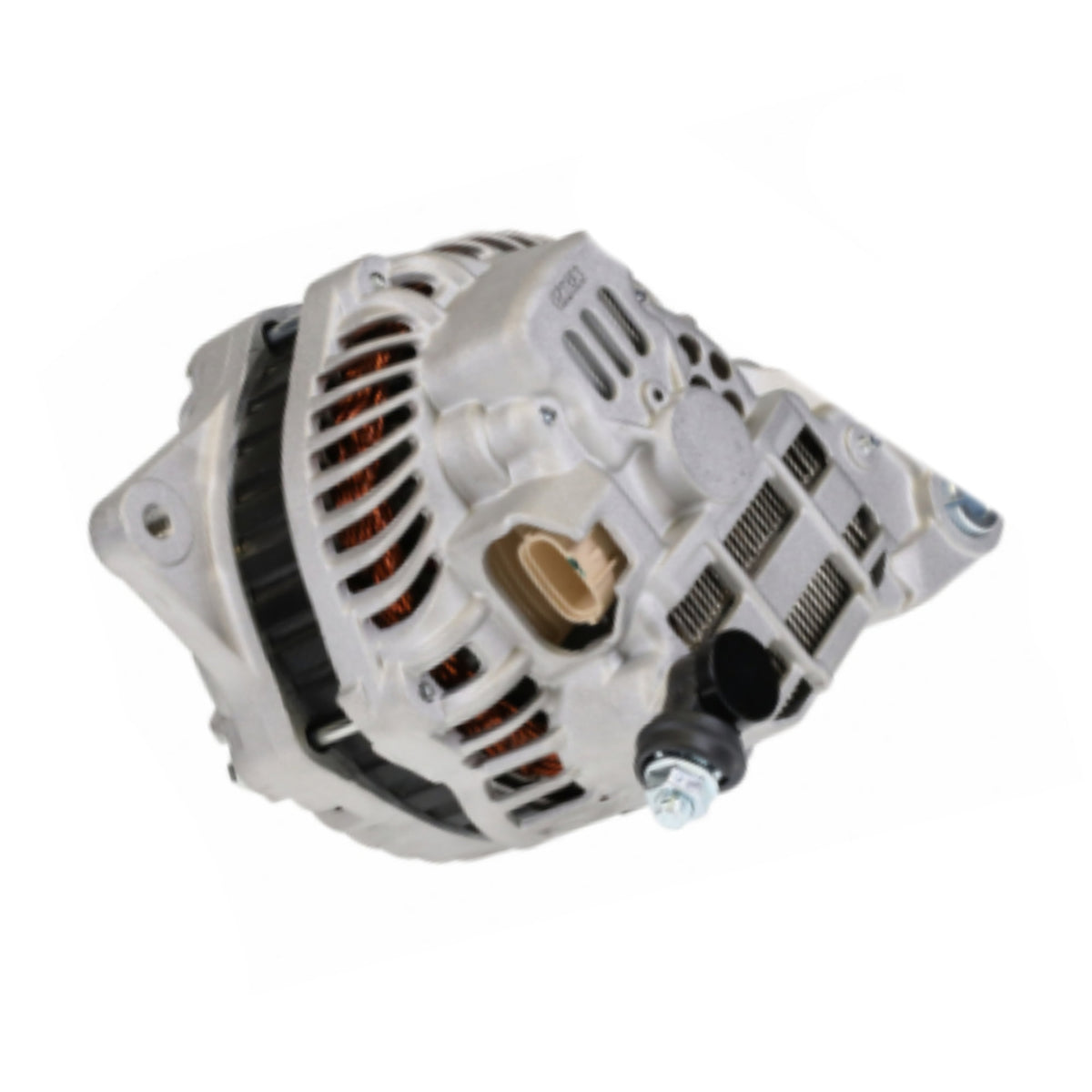

Alternator 2010-2011 Legacy Outback 2.5L A3TG6191 - 11409

Subaru Car
Legacy H4 2.5L 2458cc 2010-2011 T and NA
Outback H4 2.5L 2458cc 2010-2011

Alternator Manufacturer and Factory #
Bosch Aftermarket AL4317X (Reman)
DENSO Auto Parts Aftermarket 210-4309
Lester 11409
Mitsubishi A003TG6191, A003TG6191A, A003TG6191AC, A003TG6191ZC, A3TG6191, A3TG6191ZC, A3TG6191A, A3TG6191AC
Subaru 23700-AA63B, 23700-AA63A, 23700AA63B8A

Manufacture Mitsubishi
Amperage Rating 100-110
Design IR/IF
Family A3TG
Oe Manufacturer Mitsubishi
Plug Clock Rear View Main Mounting Ear At 6 O Clock 10
Plug Code 319
Plug Orientation SIDE
Pulley Diameter 56.4
Pulley Type S6
Rotation Direction CW
Type Alternator
Voltage 12

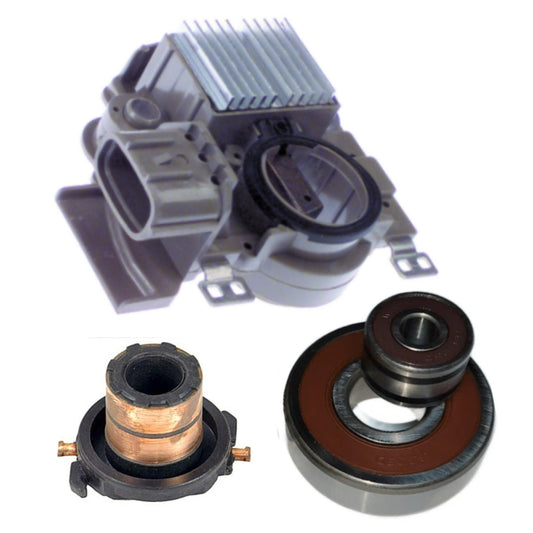

Alternator Rebuild Kit 13409RK-A
6303-2RS C3 BEARING W02X-11-1 54700
B8-23D BEARING-8x23x14mm W02X-50-1 52312

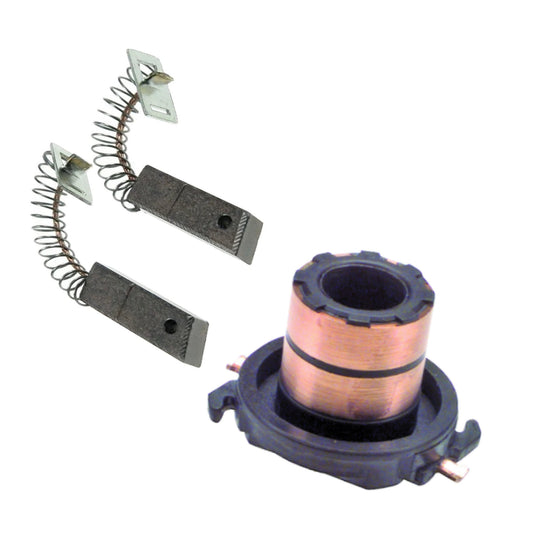

BRUSH-5x8x24mm CLIP W035-21 7303311 38-8307
RECTIFIER 100mm W065-213 77033157 IMR10049
REGULATOR SUBARU D-S-L W085-228, T52014 80033092 IM848
PULLEY NUT-17x1.5mm 1 W112-01 95001510
SLIP RING-13.5mm, 23mm OD 1 W165-10 28-83852
