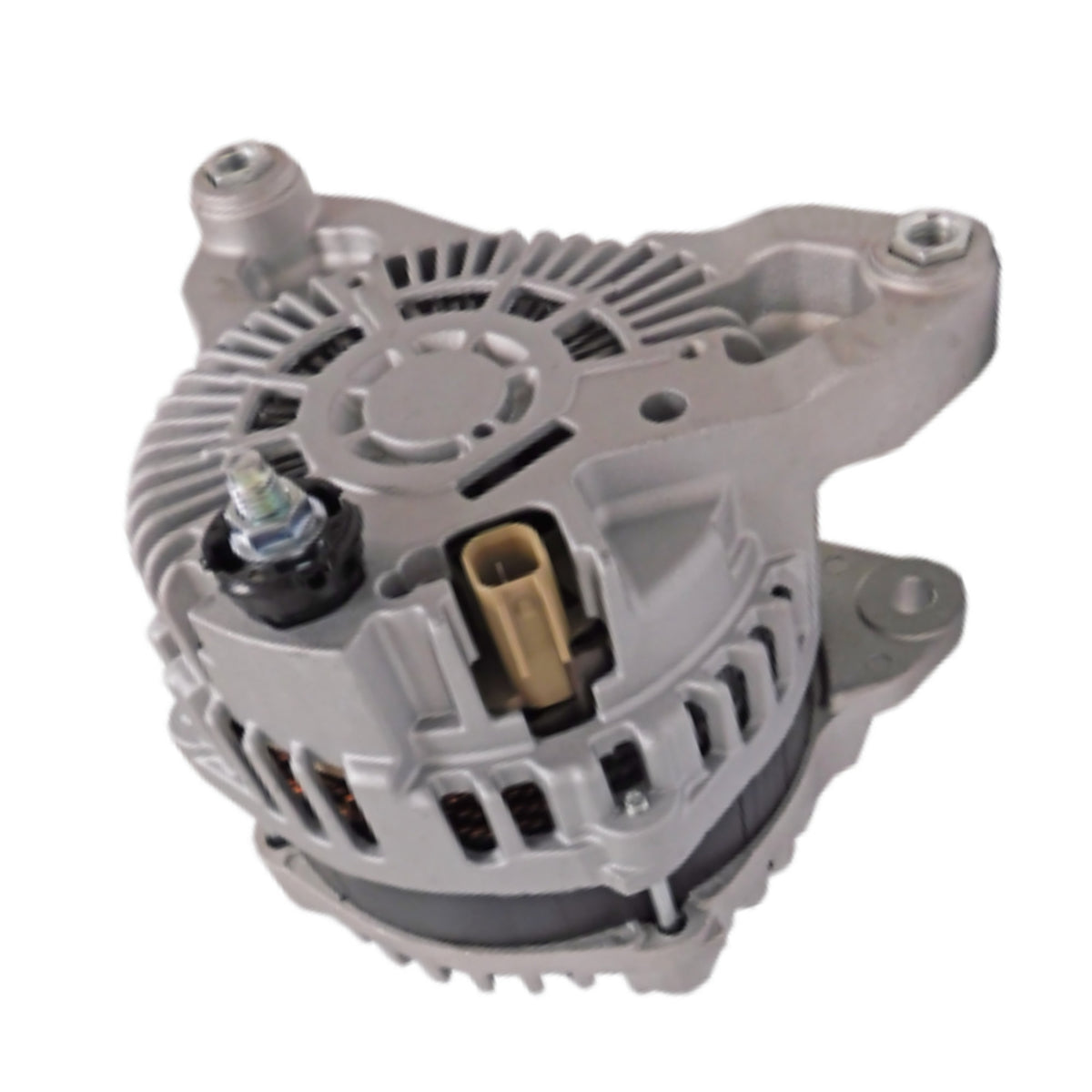

Alternator 180 Amp 2010-2024 RAM Truck V8 5.7L 6.4L A003TX0391 - 11477

Fits these models with 180 Amp A3TX0391, A3TX0391ZC. Please see the different options on these models if this isn't a match: 11299, 11967, 14027, 14033 - Thank you
Dodge Truck
Ram 2500 V8 5.7L 345cid 2010 Mitsubishi Unit 180 Amp
Ram Truck
1500 V8 5.7L 2012-2024
1500 Classic V8 5.7L 2019-2024
2500 V8 5.7L 2011-2018
2500 V8 6.4L 2024
2500 V8 6.4L 2014-2023 Dual Alternator (Primary), Mitsubishi Unit 180 Amp
3500 V8 5.7L 2011-2018
3500 V8 6.4L 2014-2024 Dual Alternator (Primary), Mitsubishi Unit 180 Amp
4500 V8 6.4L Chrysler ESB 2014-2022 180 Amp Dual Alternator Primary Unit
5500 V8 6.4L Chrysler ESB 2014-2022 180 Amp Dual Alternator Primary Unit

Alternator Manufacturer and Factory #s
Bosch Remanufactured AL6494X
Chrysler 04801769AA, 4801769AA, 4801769AB, 4801769AC, 4801769AD, R4801769AB
Mitsubishi A003TX0391, A003TX0391ZC, A3TX0391, A3TX0391ZC
J&N 400-48239
PIC Picture ID 203-5461
Remy Light Duty 11017
Wilson 90-27-3410

Product Attributes
Manufacture Mitsubishi
Amperage Rating 180
Decoupled Or Clutch Pulley No
Family A3TX
Fan Type Internal
Oe Manufacturer Mitsubishi
Outside Pulley Diameter 53.5
Plug Clock Rear View Main Mounting Ear At 6 O Clock 9
Plug Orientation Rear
Pulley Belt Type Serpentine
Pulley Groove Quantity 6
Regulator Type Internal
Rotation Direction Clockwise (Right)
Voltage 12

6303-2RS C3 BEARING W02X-11-1 6-303-4
B8-23D BEARING-8x23x14mm W02X-50-1 10-800-4
BRUSH-5x8x24mm W035-09 38-8305x2
BRUSH-5x8x24mm CLIP 2 W035-21 38-8307x2

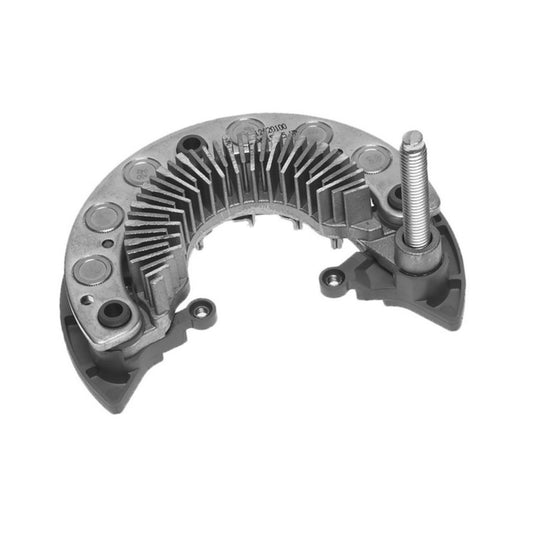

RECTIFIER M8 POST W065-292 77033179 IMR12830
Nut, M8-1.25 w/Attached conical washer- 9590003 85-2407

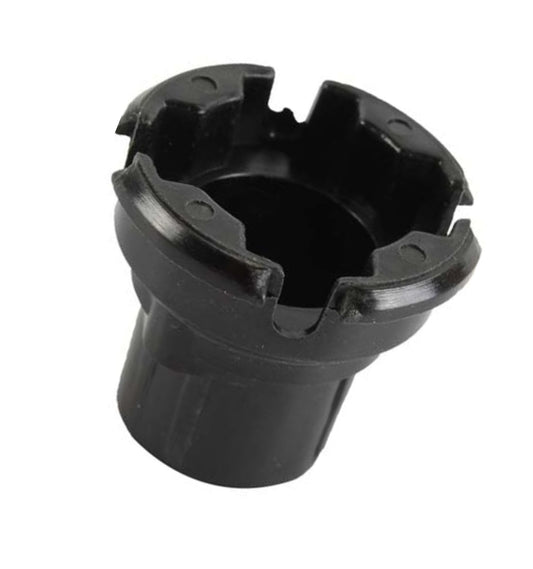

B+ INSULATOR 92033315 W115-209
B+ INSULATOR W115-229
BRUSH HOLDER Terminal Block W155-31 170-48001 150-48003 74033004 39-8305
Hardware Screws 2 x 19mm Long M5 x.8 Philips round head and flat washers
SLIP RING-13.5mm, 23mm OD W165-10 710312 28-83852
HEAT TRANSFER COMPND-5 TUBE W18X-00
