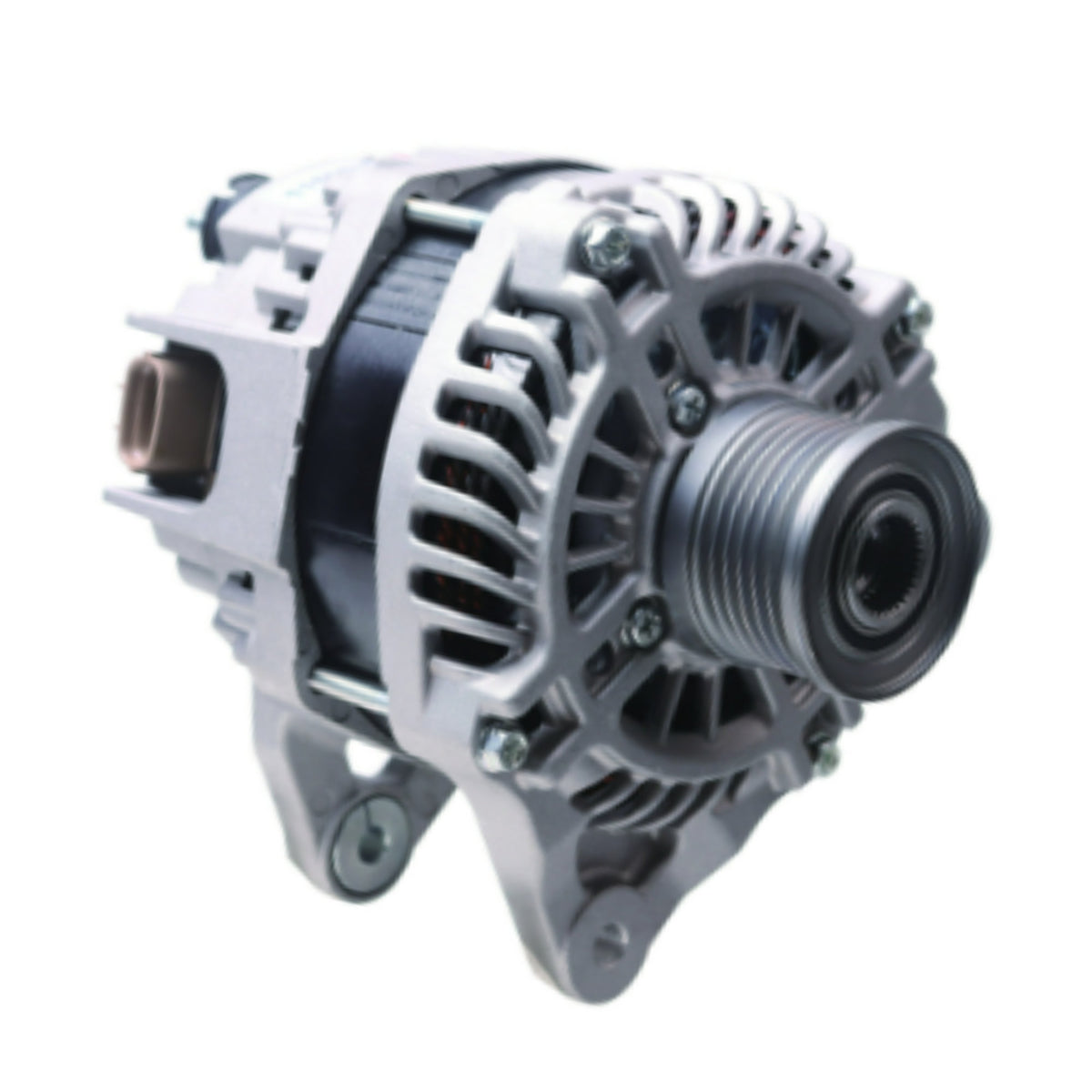

Alternator 2016-2021 Nissan NV200 2.0L A2TX4381 23100-3RZ1A - 11605

Nissan NV200 L4 2.0L 1997cc 2016-2021 w/ 150 Amp A2TX4381

Alternator Manufacturer and Factory #s
GM 19427542
Lester 11605
MFR Series - Family Type HAIRPIN
Mitsubishi A002TX4381, A002TX4381ZC, A2TX4381, A2TX4381ZC
Nissan, Infiniti 23100-3RZ1A, 23100-3RZ1ARE, 2310M-3RZ1ARW
PIC# 203-5488

Manufacture Mitsubishi
Amperage Rating 150
Decoupled Or Clutch Pulley Yes
Design IR/IF
Family A2TX
Fan Type Internal
Oe Manufacturer Mitsubishi
Outside Pulley Diameter 51.3
Plug Clock Rear View Main Mounting Ear At 6 O Clock 12
Plug Orientation Side
Pulley Belt Type Serpentine
Pulley Diameter 51.3
Pulley Groove Quantity 6
Pulley Type SC6
Regulator Type Internal
Rotation Direction Clockwise (Right)
Series HAIRPIN
Type Alternator
Voltage 12

Alternator Rebuild Kit 11605RK-A
6303-2RS C3 BEARING 1 W02X-11-1
B8-23D BEARING-8x23x14mm 1 W02X-50-1
CL PULLEY- 6GRV50 OE 1 W055-171N
RECT- FORD 150A 1 W065-259, T52020
INT REG- PCM 1 W085-400, W085-400A, T52010
SLIP RING-13.5mm, 23mm OD 1 W165-10
PULLEY TOOL KIT-CLUTCH DECOUPL 1 W19-18
