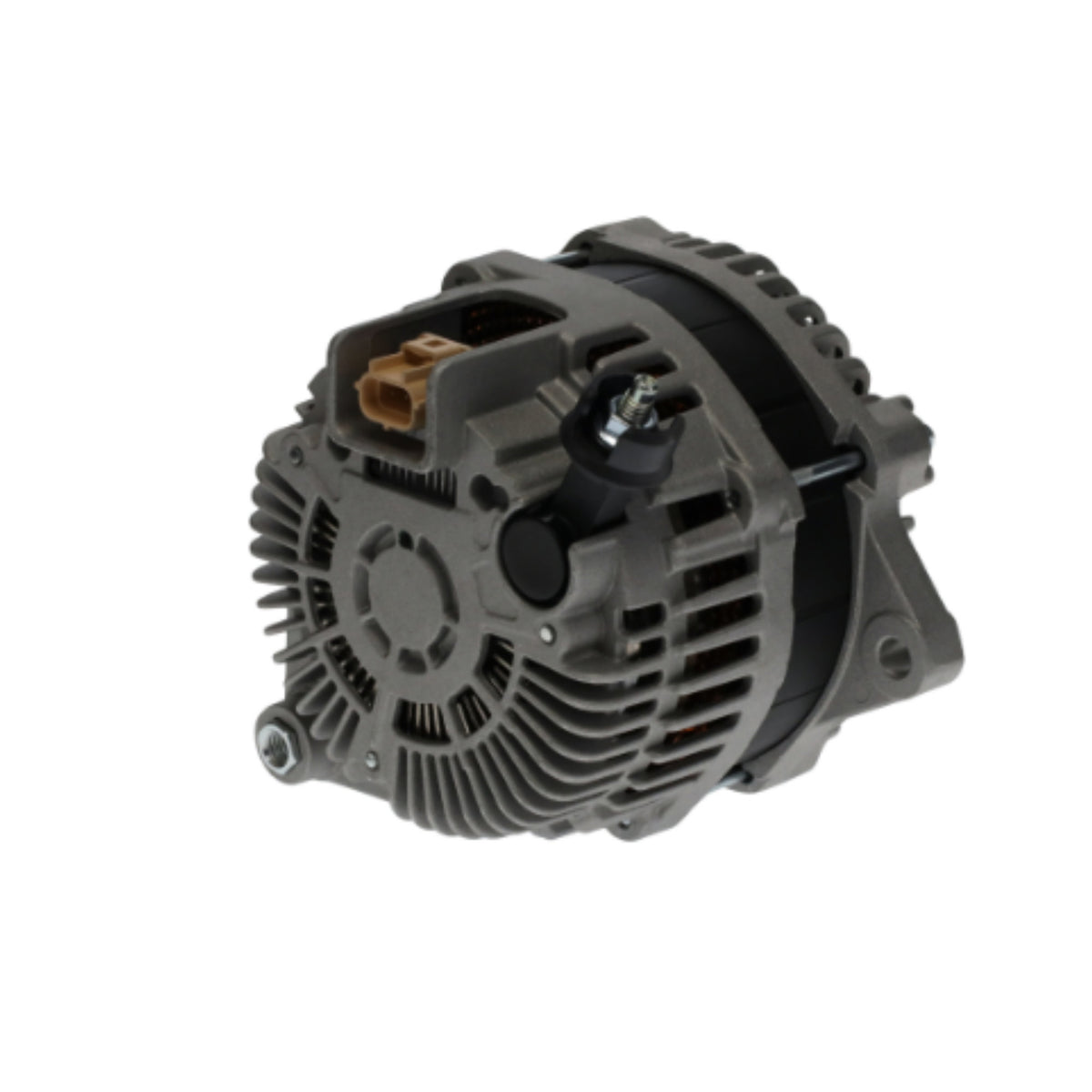

Alternator 200 Amp 3.5L 2013-2019 Taurus 3.5L, 2013-2015 Explorer 3.5L w/A4TX0191 - 11614

Ford Car
Police Interceptor Sedan V6 3.5L 2016-2017 w/ 200 Amp
Police Interceptor Sedan V6 3.7L 2016
Taurus V6 3.5L 2013-2019 w/ 200 Amp

Ford Truck
Explorer V6 3.5L 2013-2015 w/ 200 Amp
Flex V6 3.5L 2013-2019 w/ 200 Amp
Police Interceptor Utility V6 3.5L 2014-2015 w/ 200 Amp

Lincoln Car
MKS V6 3.5L 2013-2016 w/ 200 Amp

Alternator Manufacturer and Factory #s
Ford DG1T-10300-DA, DG1Z-10346-B, DG1T10300DA, DG1Z10346B, GL8665
Lester 11614
Mitsubishi A004TX0191, A4TX0191, A4TX0191ZC
Motorcraft GL-8665
J&N 400-48232
PIC Picture ID 203-5351A
Remy Light Duty 23023
Wilson 90-27-3446

TYPE Alternator
AMPERAGE 200
DESIGN IR/IF
MFR MITSUBISHI
MFR SERIES 9G
PLUG CLOCK 11
PLUG CODE 343
PLUG ORIENTATION REAR
PULLEY DESIGN S6
PULLEY GROOVE OD 58.54
ROTATION CW
VOLTAGE 12

Alternator Rebuild Parts List
Bearings 52312 54700
Frame, DE, 7603308
Frame, SRE, 7503316
Plug 9801337
Harness, Repair 98505013
Pulley 79033072
Rectifier 77033208

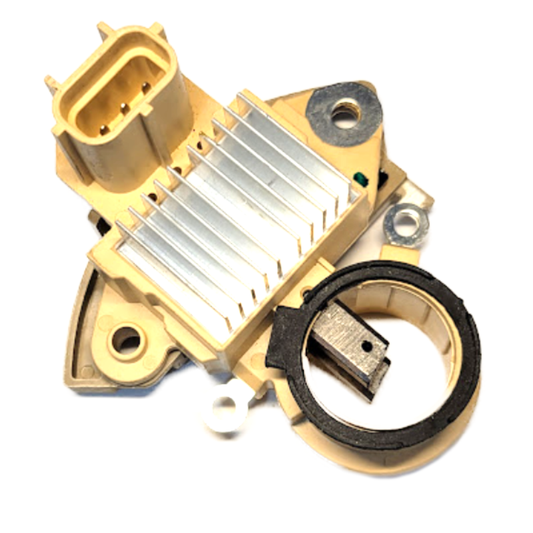

Regulator & Brush Holder 80033177 IM631
Rotor 70031005
Slip Ring, Rotor 710312
Stator 72038379
