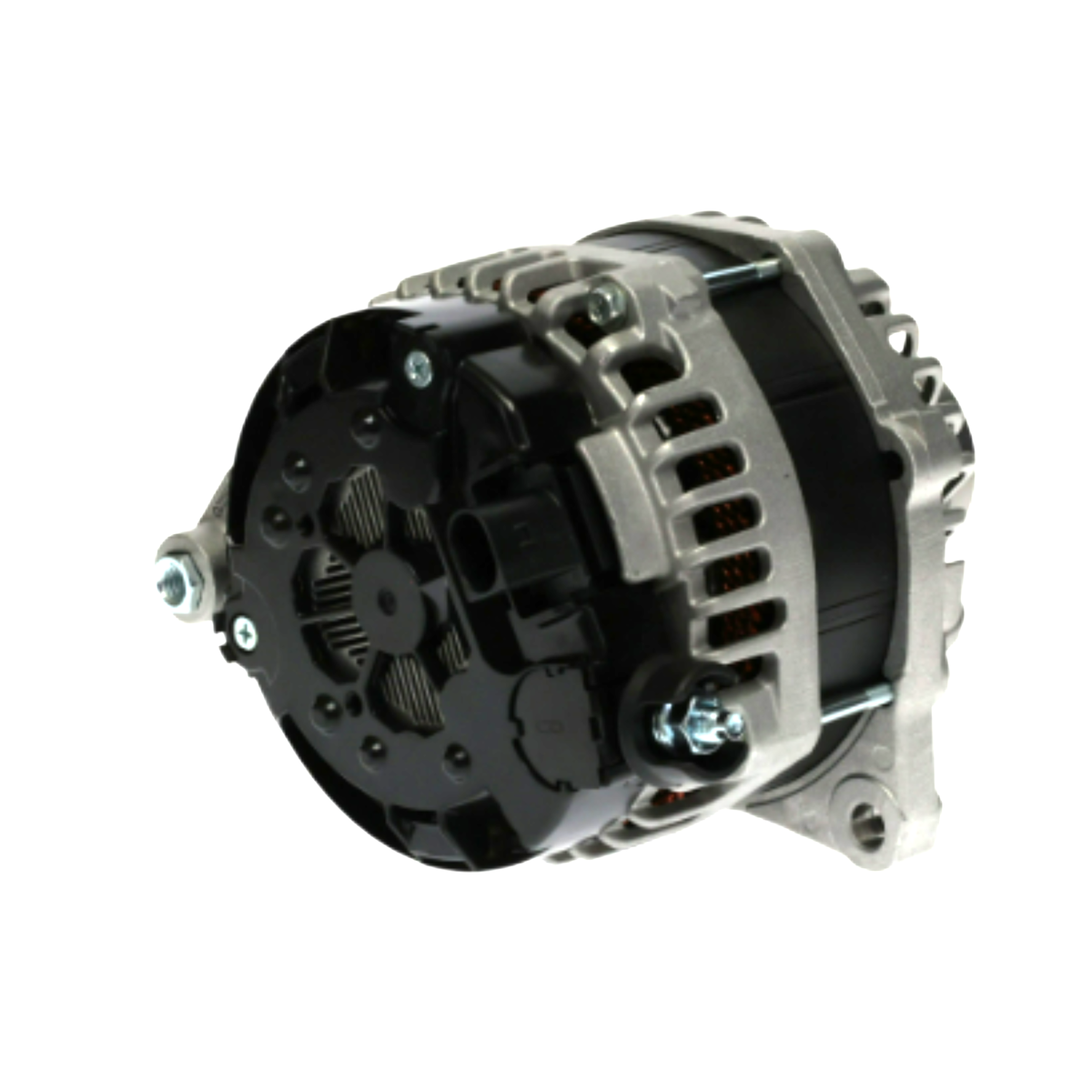

Alternator 250 Amp Police Interceptor 3.3L, Transit 3.5L with A003TV3881ZC - 11891

Ford Police Interceptor Utility V6 3.3L VIN B; Naturally Aspirated; FLEX 2020-2023
Ford Police Interceptor Utility V6 3.3L VIN W; Naturally Aspirated; FULL HYBRID EV-GAS (FHEV) 2020-2021

Ford Van
Transit-150 V6 3.5L 2020-2025
Transit-250 V6 3.5L 2020-2025
Transit-350 V6 3.5L 2020-2025
Transit-350 HD V6 3.5L 2020-2025

Possibly seen on 2021 Explorer 3.3L - Explorer Fitment Unverified as of Early 2026

Alternator Manufacturer and Factory #s
Ford L1MT-10300-RB, L1MZ-10346-F
Lester 11891
MFR Series - Family Type HAIRPIN
Mitsubishi A003TV3881ZC, A3TV3881ZC
Motorcraft GL8953
Rayloc 2139869

TYPE Alternator
AMPERAGE 250
DESIGN IR/IF
MFR MITSUBISHI
PLUG CLOCK 11:30
PLUG CODE 066
PLUG ORIENTATION REAR
PULLEY DESIGN SD6
PULLEY GROOVE OD 57.0
ROTATION CW
VOLTAGE 12

Alternator Rebuild Parts List
Bearings 5-3500 5-4700
Brush Holder 74033009 74033010 W155-32 191-306
Slipring W165-12 193-503
Cover - S.R.E. Frame 8403-130
Decoupler Pulley 79001088 WAI 24-83316-7D, Ford JL3E-10A352-BA, JL3Z-10344-A, Litens 920088, Mitsubishi A252C616IC, Motorcraft GP776, Wagner W055-175N
Plug 9801-066
Rectifier 7703-3283 IMR12831

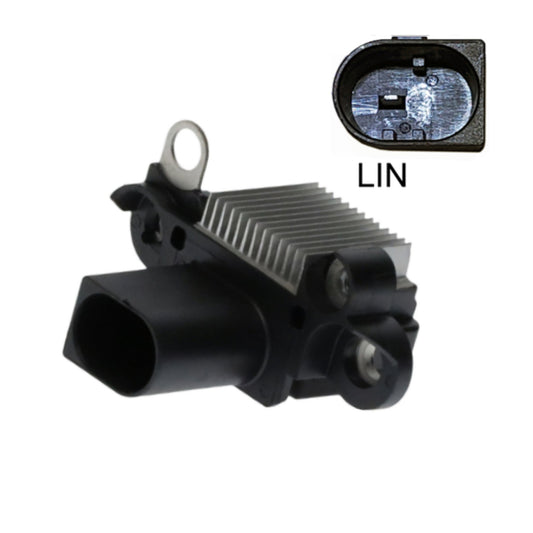

Voltage Regulator 8003-3239 IM1000
