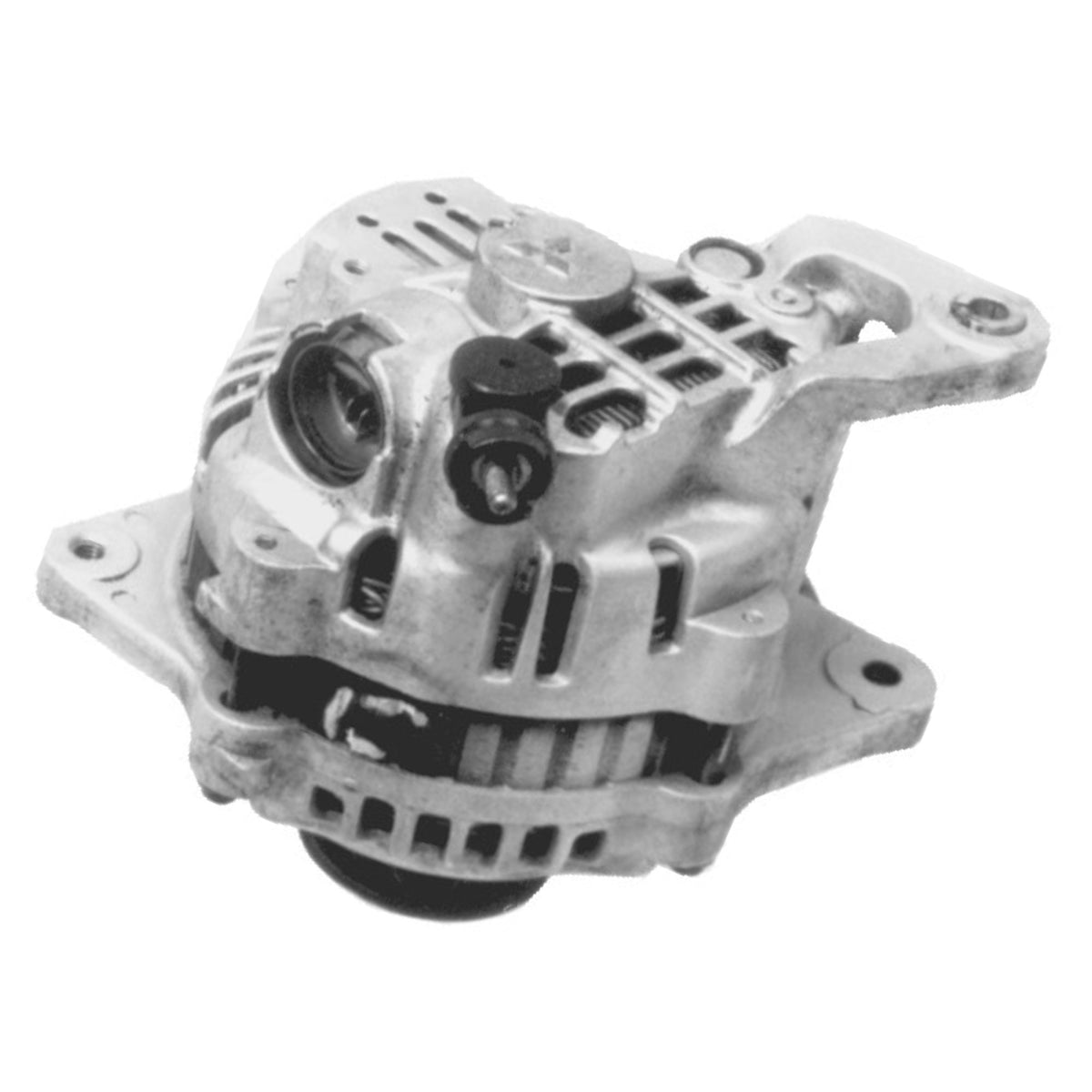

Alternator 1990-1994 Subaru Legacy 2.2L 70 Amp Mitsubishi - 13210

Subaru Legacy H4 2.2L 2212CC 1990-1994 w/ 70 Amp Mitsubishi

Alternator Manufacturer and Factory #s
Bosch Aftermarket AL4300X (Reman)
Industry 13210
Lester 13210
Lucas (Europe) LRB00268, LRB268
Mitsubishi Electric A002T09591, A2T09591
Subaru 23700-AA180, 23700AA180
WAS BOM 13210

Manufacture Mitsubishi
Amperage Rating 70
Decoupled Or Clutch Pulley No
Design IR/IF
Family A2T0
Fan Type Internal
Ground Type Negative
Oe Manufacturer Mitsubishi
Plug Clock 11
Plug Clock Rear View Main Mounting Ear At 6 O Clock 11
Plug Code 353
Plug Type 353
Pulley Belt Type Serpentine
Pulley Diameter 55
Pulley Groove Od 55
Pulley Groove Quantity 5
Pulley Type S5
Regulator Type Internal
Rotation Direction Clockwise (Right)
Type Alternator
Voltage 12

Alternator Rebuild Kit 13210RK-A

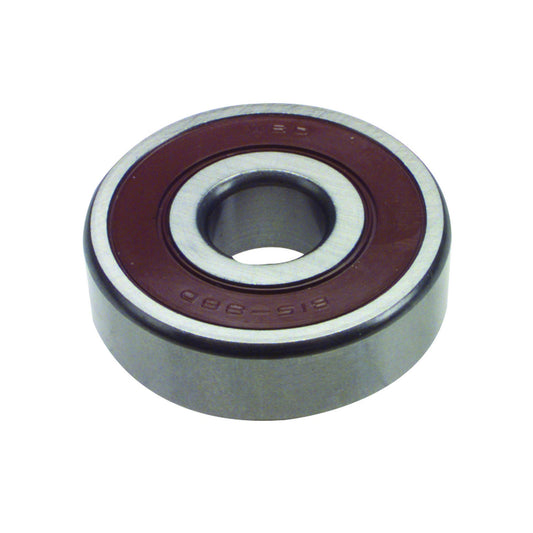

6303LU BEARING-15x47x14mm W02X-43-1 54712 10-3031-4W
B8-23D BEARING-8x23x14mm W02X-50-1 52312 10-800-4W

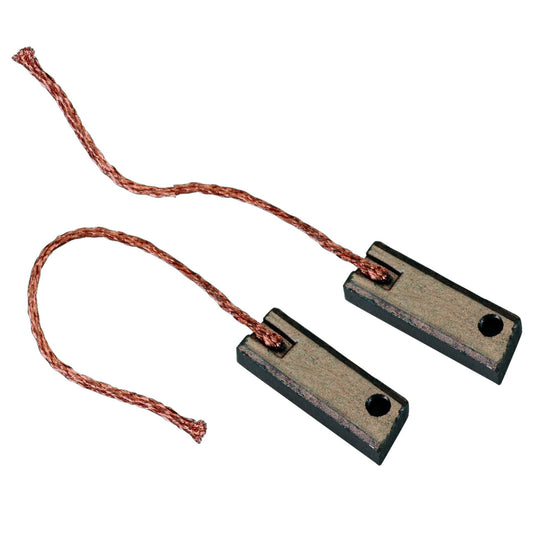

ALT BRUSH-5x8x24mm 2 W035-09 7303305 38-8305x2

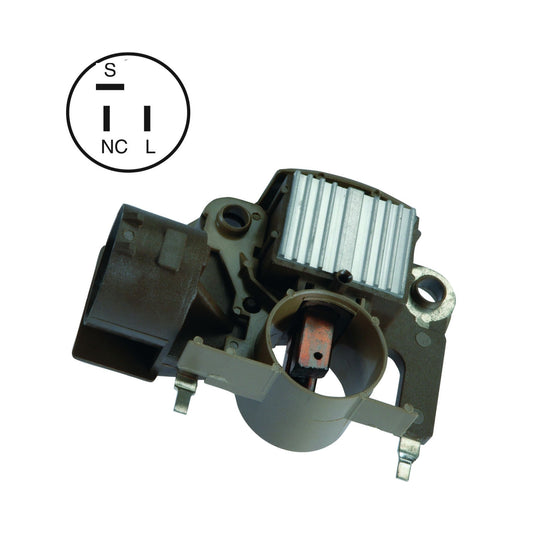

INT REG SUBARU DSDL 1 W085-172 80033082 IM852
Plug 9801353
INT FAN BRG SHIELD W115-129

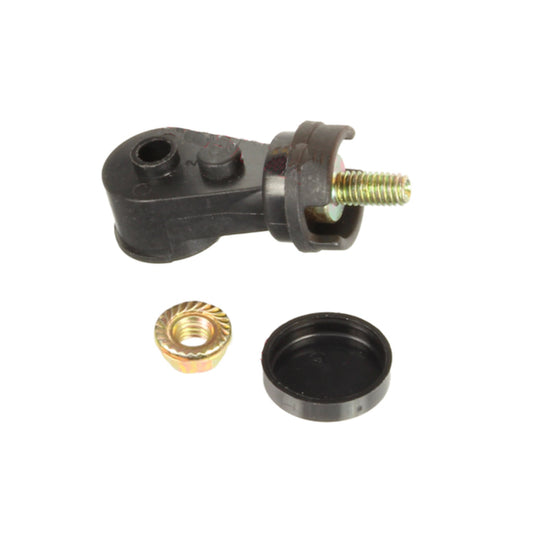

B+ TERM EXT SBRU M6 1 W115-148 W115-18 96030302 49-83501
REG INSULATOR-TOP 50mm 1 W115-49

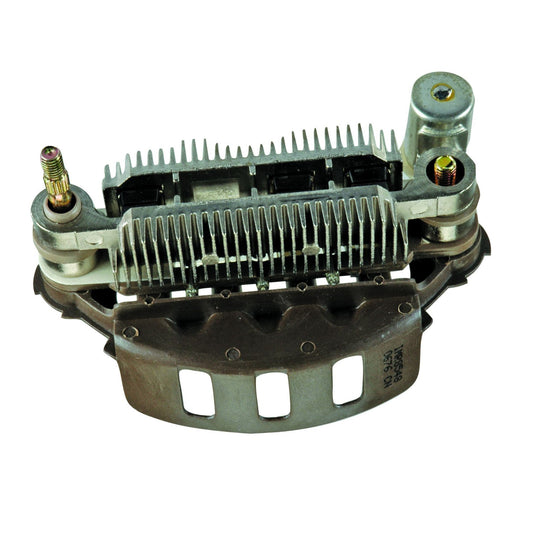

RECTIFIER 77033059 IMR8548
SLIP RING SHIELD 1 W115-67
SLIP RING-13189 12.5mm ID W165-02 710310 28-83851
STATOR 72038330 27-8314

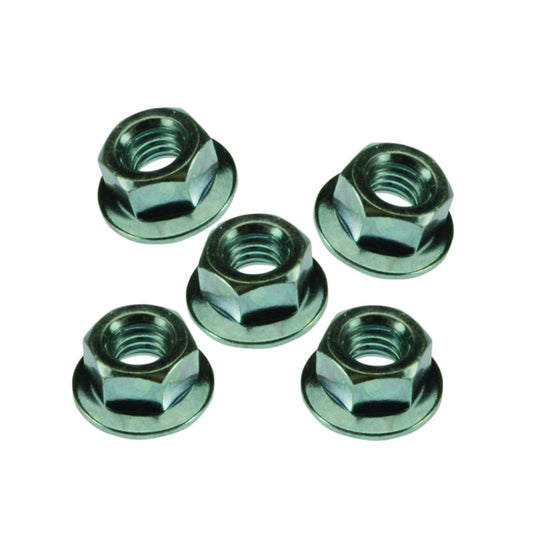

Nut 95001460
Rotor 70031023

Mitsubishi Version of 13275 - Internal Parts not interchangeable
