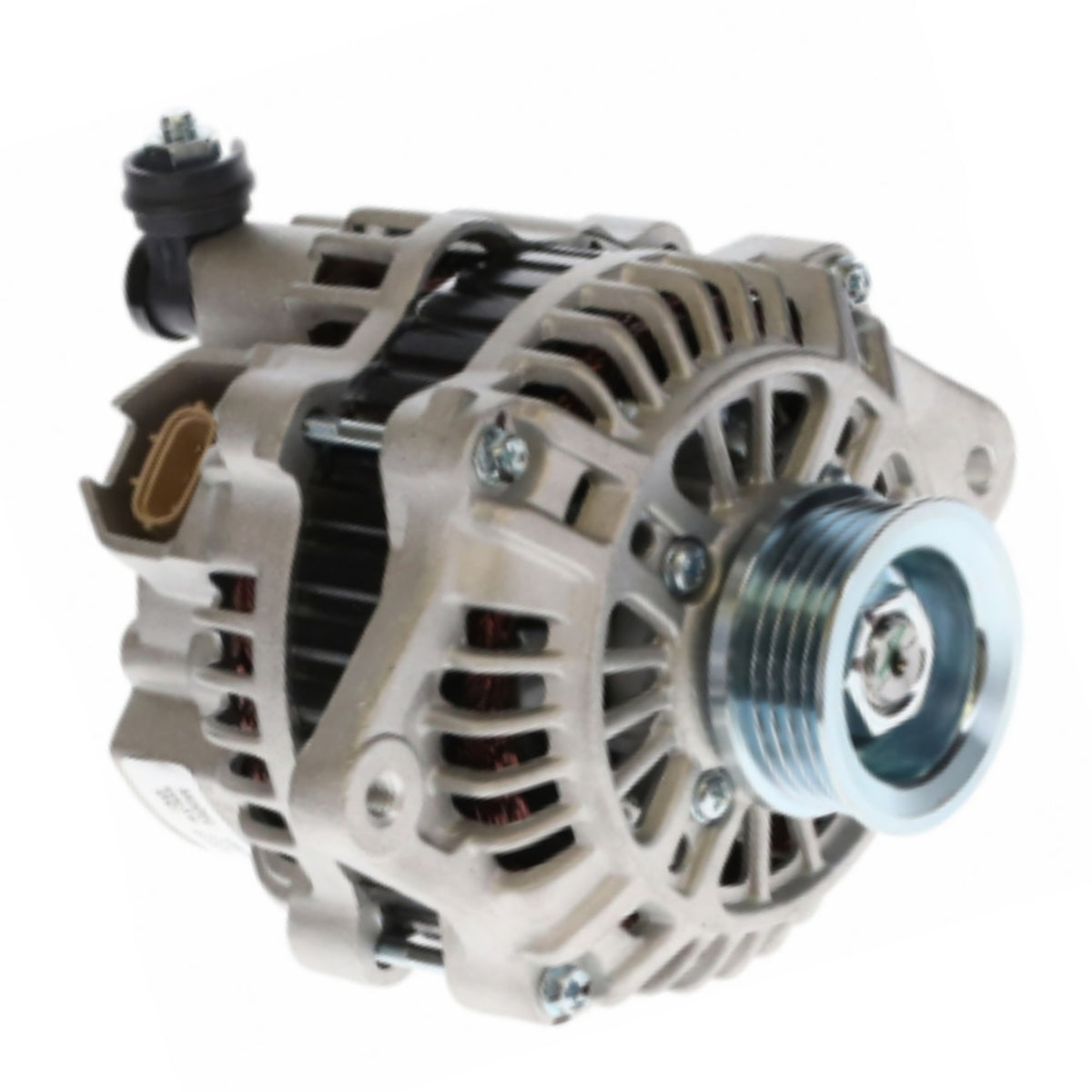

Alternator 1999-2002 Forester 1999-2001 Impreza 2000 Outback - 13820

Subaru Forester H4 2.5L 2458CC 1999-2002
Subaru Impreza H4 2.2L 2212CC 1999-2001
Subaru Impreza H4 2.5L 2458CC 1999-2001
Subaru Outback H4 2.5L 2458CC 2000

Alternator Manufacturer and Factory #s
ACDelco 334-1362
Bosch Aftermarket AL4302X (Reman)
Bosch Service Europe 0-986-UR0-184
DENSO Auto Parts Aftermarket 210-4141
Lester 13820
Lucas (Europe) LRA01713
Mitsubishi A002TB2991, A2TB2991
RELIANCE 41524
Subaru 23700-AA390


Manufacture Mitsubishi
Amperage Rating 75
Decoupled Or Clutch Pulley No
Design IR/IF
Family A2TB
Fan Type Internal
Ground Type Negative
Oe Manufacturer Mitsubishi
Plug Clock Rear View Main Mounting Ear At 6 O Clock 11
Plug Code 319
Plug Type 319
Pulley Belt Type Serpentine
Pulley Diameter 55
Pulley Groove Quantity 5
Pulley Type S5
Regulator Type Internal
Rotation Direction Clockwise (Right)
Type Alternator
Voltage 12

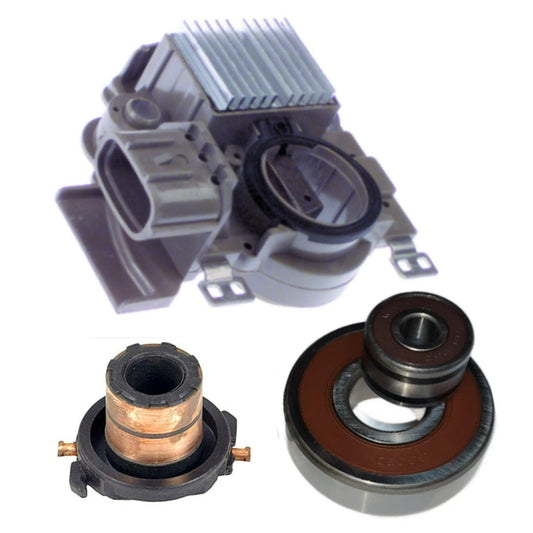

Alternator Rebuild Kit 13820RK-A
R6203-2RS C3 BEARING 1 W02X-07-1 54000 6-203-4
B8-23D BEARING-8x23x14mm 1 W02X-50-1 52312 10-800-4
BRUSH-5x8x24mm 2 W035-09
BRUSH-5x8x24mm CLIP 2 W035-21
MITSUBISHI DIODE-POS 30A SQ 3 W04X-24
MITSUBISHI DIODE-NEG 30A SQ 3 W04X-25
PULLEY 5GRV 55mm OD 1 W055-49 79033043

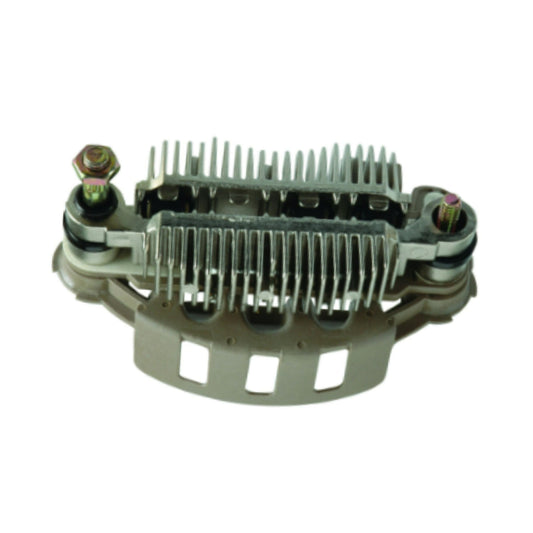

RECT SUBARU 85mmM6B+ 1 W065-182 77033106
REG SUBARU D-S-L 1 W085-228 T52014 IM848 80033092
Plug 9801319
REG INSERT SUBRU 1 W085-297
STATOR-75-90A126mm 1 W105-26 72031039
PULLEY NUT-17x1.5mm 1 W112-01
SLIP RING-13.5mm, 23mm OD 1 W165-10
Terminal Kit, Batt, Alt 92033020
Rotor 70031039
