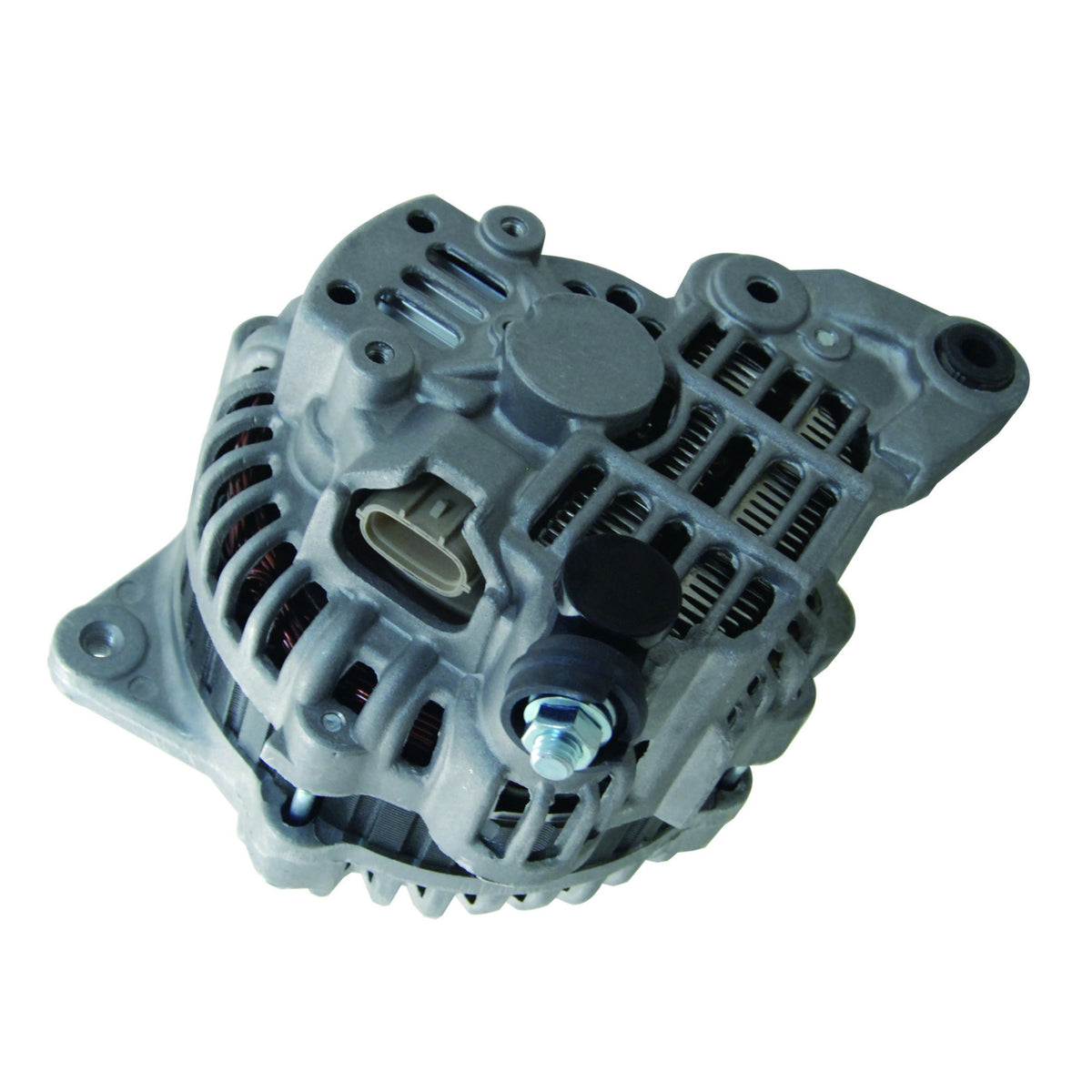

Alternator 2001-2005 Subaru Outback 3.0L 100 Amp A3TB1891, 23700-AA401 - 13888

Subaru Outback H6 3.0L 3000CC 2001-2005

Alternator Manufacturer and Factory #s
ACDelco 334-1422
Bosch Aftermarket AL4308X (Reman)
Bosch Service Europe 0-986-UR0-187
DENSO Auto Parts 210-4206
Lester 13888
Mitsubishi A003TB1891, A003TB1891ZC, A3TB1891, A3TB1891ZC
Subaru 23700-AA401

Manufacture Mitsubishi
Amperage Rating 100
Decoupled Or Clutch Pulley No
Design IR/IF
Family A3TB
Fan Type Internal
Ground Type Negative
Oe Manufacturer Mitsubishi
Plug Clock Rear View Main Mounting Ear At 6 O Clock 11
Plug Code 325
Pulley Belt Type Serpentine
Pulley Diameter 0
Pulley Groove Quantity 6
Pulley Type S6
Regulator Type Internal
Rotation Direction Clockwise (Right)
Type Alternator
Voltage 12

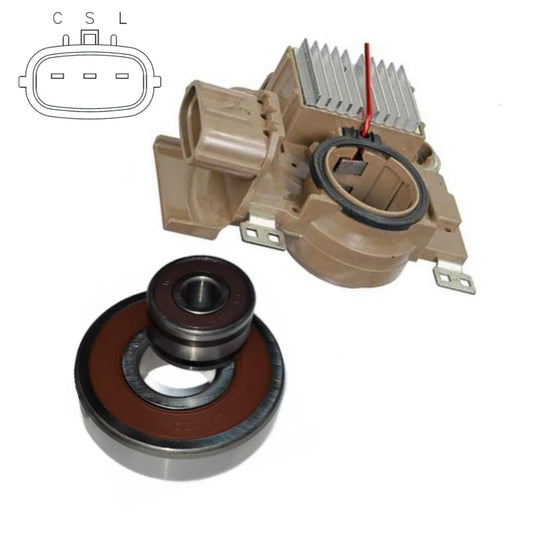

Alternator Rebuild Kit 13888RK-A
R6203-2RS C3 BEARING W02X-07-1 54700 6-203-4W A930X94170
B8-23D BEARING-8x23x14mm W02X-50-1 52312 10-800-4W S930P63670
BRUSH-5x8x24mm W035-09
BRUSH-5x8x24mm CLIP W035-21 38-8307x2 A647X50870

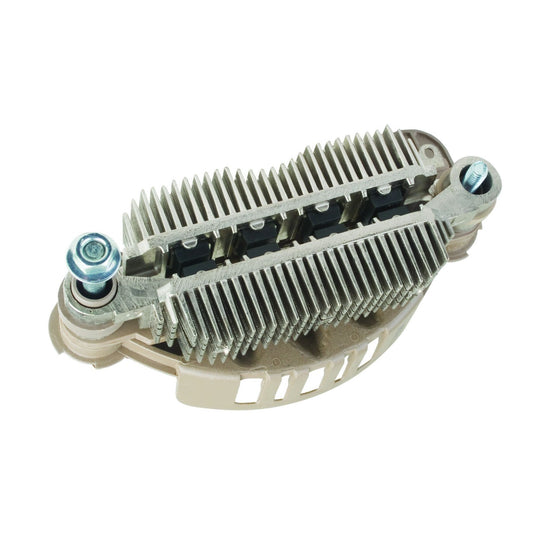

RECTIFIER W065-213 IMR10051 77033143 A860X66270
REGULATOR SUBARU C-S-L W085-273 IM472 A866X47272
Plug 9801325
STATOR-136mm 110A W105-24 27-8308 72038325 A383T44470
PULLEY NUT-17x1.5mm W112-01 A981X20771
SLIP RING-13.5mm, 23mm OD W165-10 28-83852
Housing, DE OEM Version Includes Other Components 1 A640X65270
Housing, SRE OEM Version Includes Other Components 1 A642XB7070
Pulley 1 A630X91370
Rotor OEM Version Includes Bearing 1 A880X86070
Screw Set DE Bearing Retainer, OEM Set Includes 4 1 A414X19371
Thru Bolt Set DE Housing, OEM Set Includes 4 1 A414X19271
