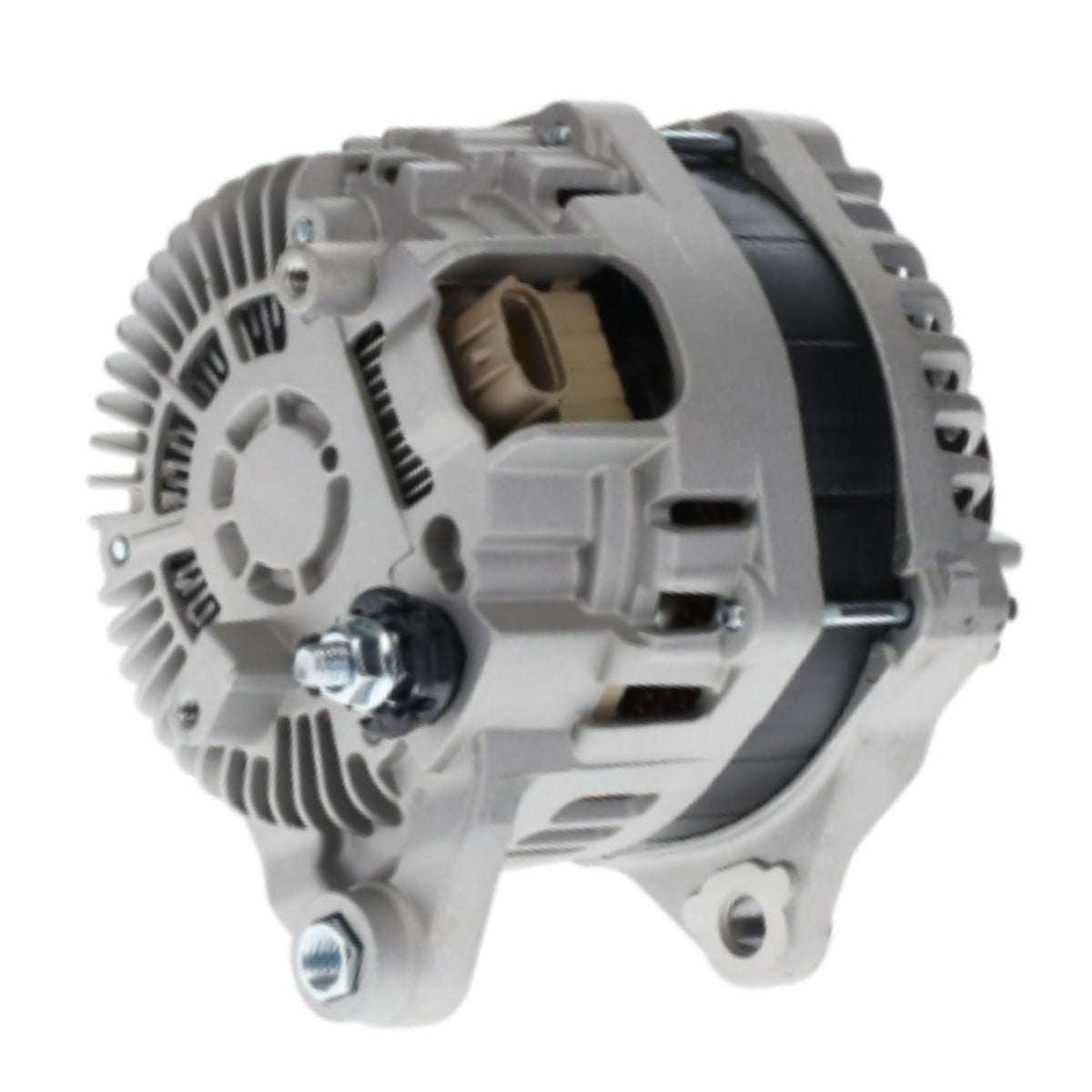

Alternator 2016-2019 Nissan Titan XD 5.0L 200 Amp A3TX2291 - 21386

Nissan Titan XD V8 5.0L 305cid 2016-2019 200 Amp

Alternator Manufacturer and Factory #s
Bosch Remanufactured AL2434X
Bosch Service Europe 0986UR6444, 0-986-UR6-444
Lester 21386
MFR Series - Family Type HAIRPIN
Mitsubishi A003TX2291, A003TX2291ZX, A003TX22291, A3TX2291, A3TX2291ZX
Nissan, Infiniti 23100-EZ40A, 2310M-EZ40ARW
PIC# 203-5576


Manufacture Mitsubishi
Amperage Rating 200
Clock Position 3
Design IR/IF
Family A3TX
Fan Type Internal
Oe Manufacturer Mitsubishi
Plug Clock Rear View Main Mounting Ear At 6 O Clock 3
Plug Code 325
Plug Orientation Side
Pulley Belt Type Serpentine
Pulley Diameter 64.6
Pulley Groove Quantity 6
Pulley Type S6
Regulator Type Internal
Rotation Direction Clockwise (Right)
Series HAIRPIN
Stator Type Hairpin
Type Alternator
Voltage 12

Alternator Rebuild Kit 21386RK-A
6303-2RS C3 BEARING W02X-11-1 54700
B8-23D BEARING-8x23x14mm W02X-50-1 52312
REGULATOR W085-400A T52010 IM625 80033218
Rectifier 77033276
PULLEY NUT-17x1.5mm W112-01
B+ INSULATOR W115-209
INT B+ INSULATOR INT W115-229
Insulator 92033315
Slip Ring 710312 28-83852
