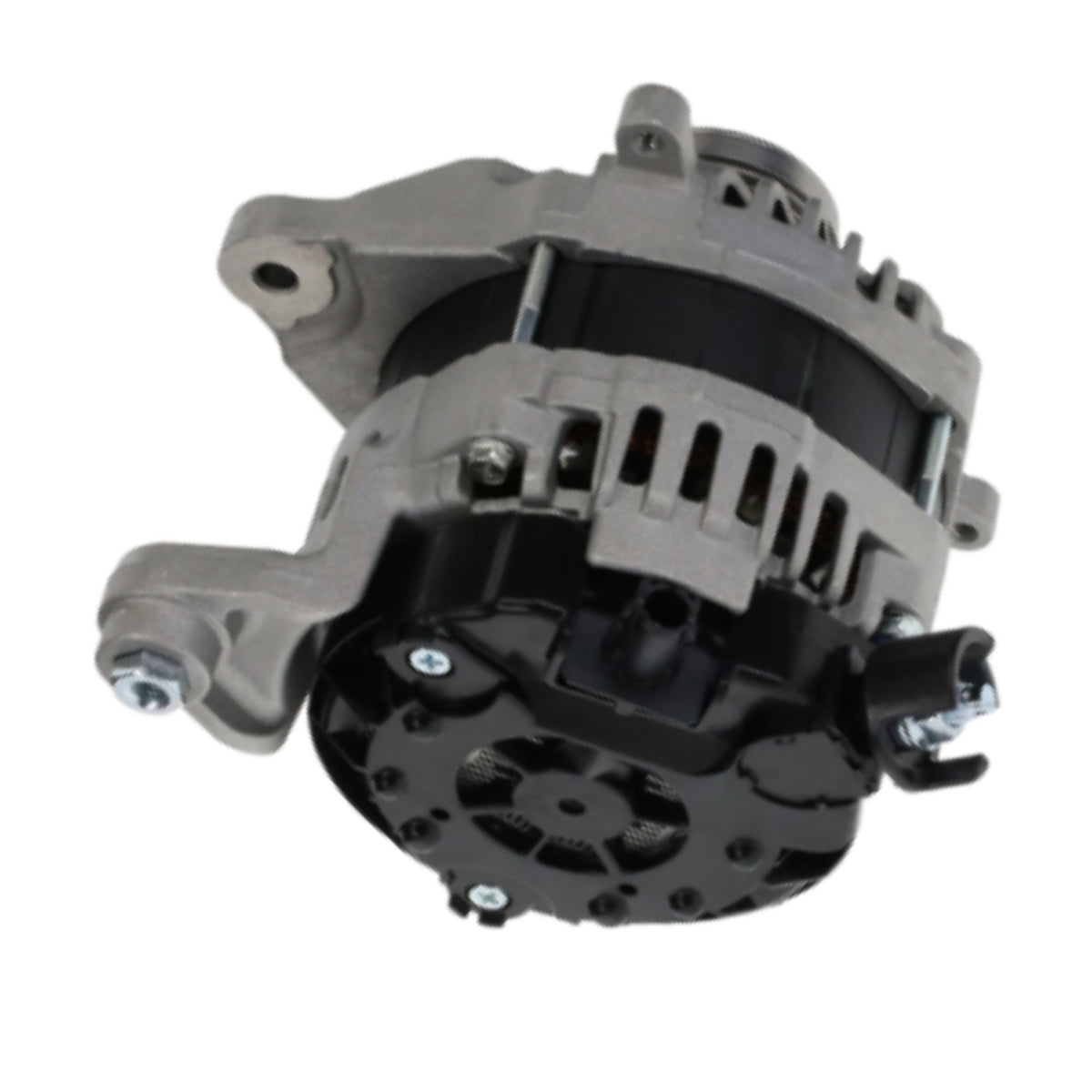

Alternator 2018-2019 Legacy Outback 2.5L A5TV0781 - 21580

Subaru Legacy H4 2.5L 2498cc 2018-2019
Subaru Outback H4 2.5L 2498cc 2018-2019

Alternator Manufacturer and Factory #s
Lester 21580
Lucas Electrical Europe LRA04431
Mitsubishi A005TV0781, A005TV0781ZC, A5TV0781, A5TV0781ZC
Subaru 23700-AB01A, 23700AB01A
PIC# 203-246

Manufacture Mitsubishi
Amperage Rating 130
Design IR/IF
Family A5TV
Oe Manufacturer Mitsubishi
Plug Clock Rear View Main Mounting Ear At 6 O Clock 8:45
Plug Code 500
Plug Orientation SIDE
Pulley Diameter 52.56
Pulley Type SD6
Rotation Direction CW
Series HAIRPIN
Type Alternator
Voltage 12

COVER-A5TV 1 W015-129 8403131
6202-2RS BEARING-15x35x11mm 1 W02X-05-1 53500
6303-2RS C3 BEARING 1 W02X-11-1 54700
DCP PULLEY 6GRV53 OE 1 W055-151N 79001036
RECTIFIER M6 1 W065-297 77033266 77033299 77033312 77033323 IMR11201
REGULATOR SUBARU 1 W085-433 80033219 IM723
Plug 9801500
BRUSH HOLDER-11916 1 W155-32 74033010
HAIRPIN SLIP RING-11873 1 W165-12
