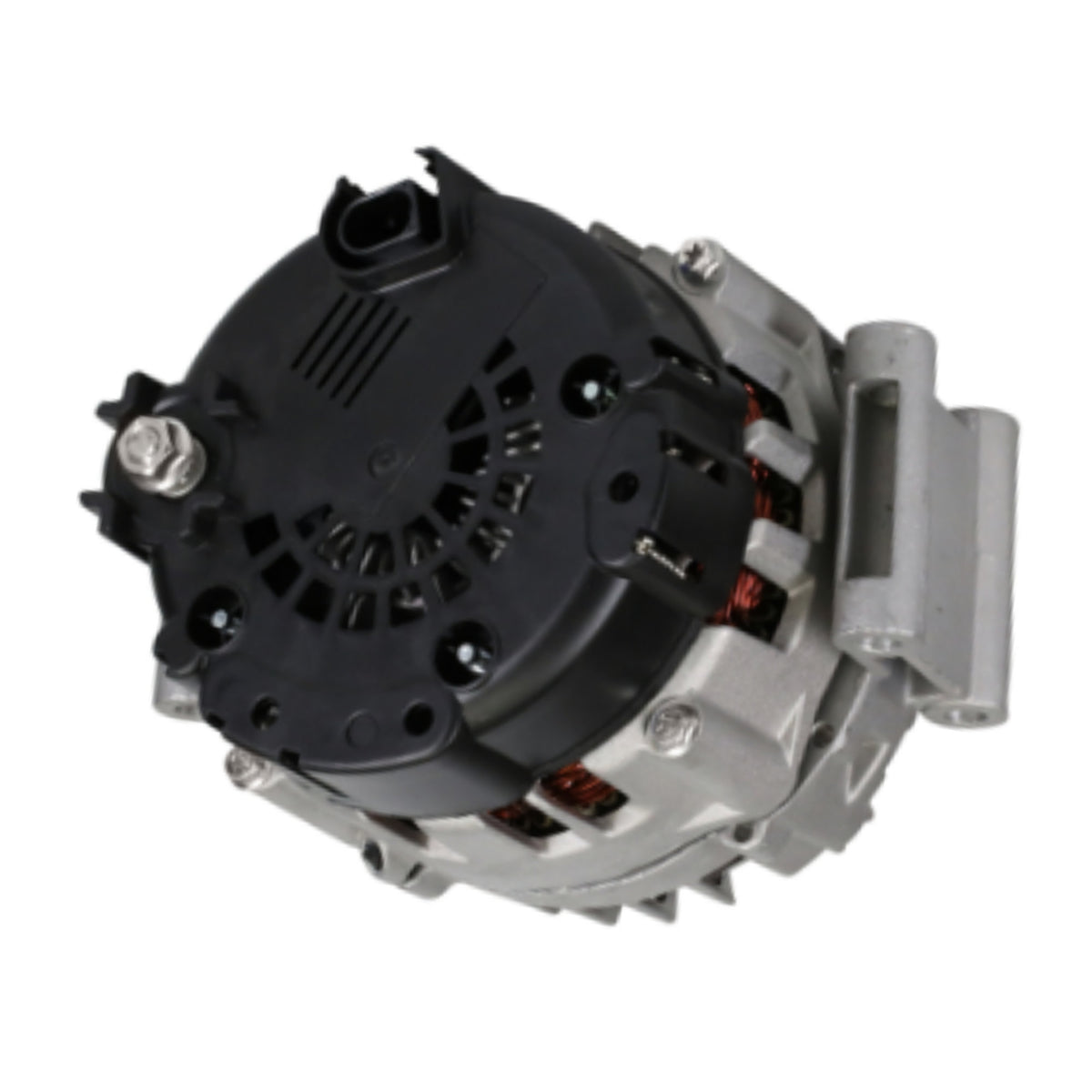

Alternator Audi 3.0L 2013-16 S4 S5 Q5 SQ5 FGN20S037 FG20S017 - 11800

Audi Car
S4 V6 3.0L 2995cc 2013-2016 Valeo FGN20S037, FG20S017
S5 V6 3.0L 2995cc 2013-2016 Valeo FGN20S037, FG20S017
Audi Truck
Q5 V6 3.0L 2995cc 2013-2017 Valeo FGN20S037, FG20S017
SQ5 V6 3.0L 2995cc 2014 Valeo FGN20S037, FG20S017
SQ5 V6 3.0L 2995cc 2016-2017 Valeo FGN20S037, FG20S017

Alternator Manufacturer and Factory #s
Audi 06E-903-019-E, 06E-903-019-EX, 06E-903-019E, 06E-903-019EX, 06E-903-018-L, 06E-903-018-LX, 06E-903-018L, 06E-903-018LX, 06E903019E, 06E903018LX Lester 11800, Valeo FGN20S037, FG20S017, 439795, 2715181B, 440435

Manufacture Valeo
Amperage Rating 180
Decoupled Or Clutch Pulley Yes
Design IR/IF
Family FG20
Fan Type Internal
Ground Type Negative
Oe Manufacturer Valeo
Plug Clock Rear View Main Mounting Ear At 6 O Clock 9
Plug Code 065
Plug Orientation REAR
Pulley Belt Type Serpentine
Pulley Diameter 60
Pulley Groove Quantity 6
Pulley Type SC6
Regulator Type Internal
Rotation Direction Clockwise (Right)
Type Alternator
Voltage 12

Alternator Rebuild Kit 11800OERK-A
VALEO ALT-11800 AUDI S4 OE 1 439795
VALEO RECT COVER AUDI OE 1 W012-70N
6202-2RS BEARING-15x35x11mm 1 W02X-05-1
6303-2RS C3 BEARING-PFI 1 W02X-11-1
ALT BRUSH-4.6x6.5x14mm 2 W032-00
AVL DIODE-NEG 50A-22V 1 W04X-51
AVL DIODE-POS 50A-22V 1 W04X-52

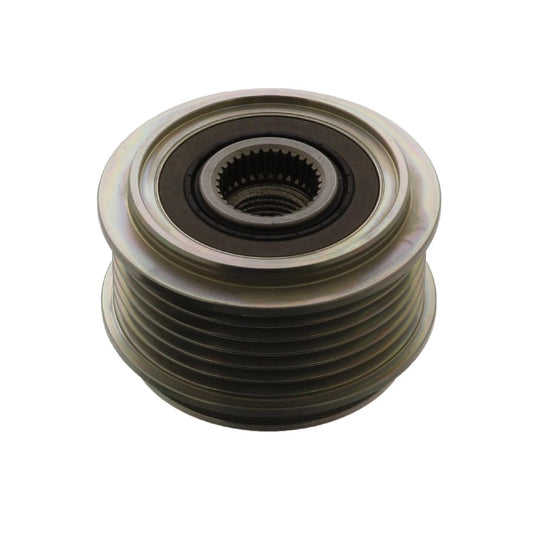

CL PULLEY 6GRV60mm OE 1 W052-58N 79010006
INT REG AUDI OEM 1 W082-131N 599237
BEARING CAP-A13VI SG TG 1 W112-13
BRG RETAINER-FG, SG OE 1 W112-41N
BRG RETAINER SCREW-M5 OE 4 W112-42N
SLIP RING-14.9mm OE 1 W162-05
