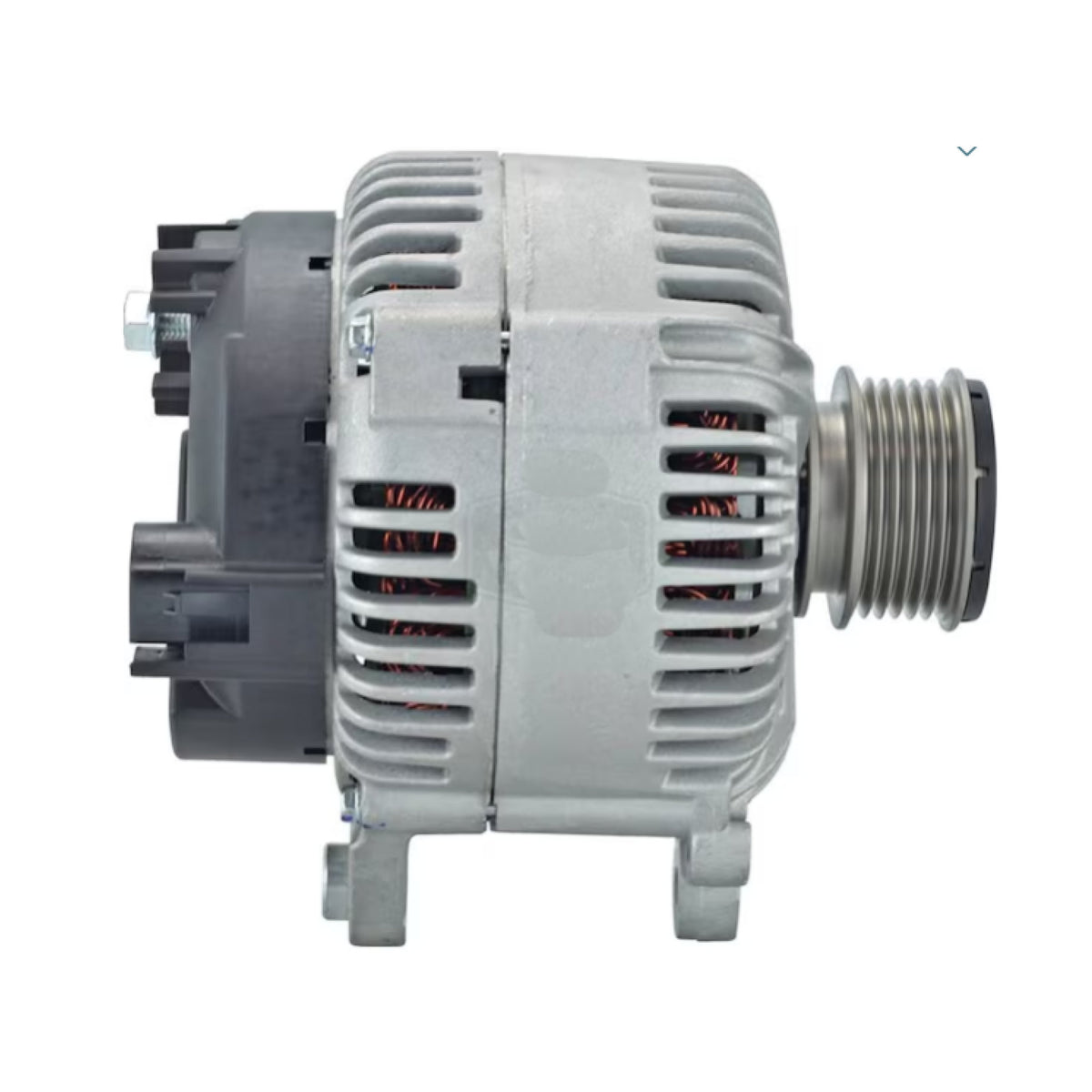

Alternator for 2008 Passat 3.6L 2009-2011 VW CC 3.6L w/180A Valeo TG17C066 - 11803

** for parts you must match the 180 Amp Valeo FG18T062, FG18T115, TG17C066 Option
Volkswagen Car
CC V6 3.6L 3597cc 219cid 2009-2011 with 180 Amp Valeo
Passat V6 3.6L 3597cc 219cid 2008 with 180 Amp Valeo
** Also options on these models
for 180 Amp Bosch see Alternator # 11714
for 140 Amp Valeo see Alternator # 11425
for 140 Amp Bosch see Alternator # 11463
for 140 Amp Bosch see Alternator # 24231

Alternator Manufacturer and Factory #s
Audi, Volkswagen 03G-903-023-G, 03G-903-023-GX, 03G-903-023G, 03G-903-023GX
Excel 11013
Lester 11803
Valeo 2543567, 2609876C, 2617860A, FG18T062, FG18T115, TG17C066
PIC Picture ID 208-892
Wilson 90-22-5691

TYPE Alternator
AMPERAGE 180
DESIGN IR
MFR VALEO
PULLEY DESIGN SC6
PULLEY GROOVE OD 0
ROTATION CW
VOLTAGE 12

DE FRAME ASSY-11257 TG17 1 593901 77011281
RECT COVER-TG SERIES OE 1 W012-107N
RECT COVER-11257 VW OE 1 W012-97N 8408161
6202-2RS BEARING-15x35x11mmPFI 1 W02X-05-1 53500
6303-2RS C3 BEARING-PFI 1 W02X-11-1 54700
DIODE-NEG 70A-22V 3 W04X-53
DIODE-POS 70A-22V 3 W04X-54
CL PULLEY-11643 6GRV50mmINA 1 W050-43N 79202232 24-91304
ROTOR-180A 1 W072-15N 70081001
Regulator 1 W082-124N 80084059
Plug 9801073
BEARING CAP-A13VI SG TG 1 W112-13
VIBRATION DAMPENER-TG15C 4 W112-29
RETAINER-FG, SG OE 1 W112-41N
RETAINER SCREW-M5 OE 4 W112-42N
SLIP RING-14.9mm OE 1 W162-05
Stator 72087357
