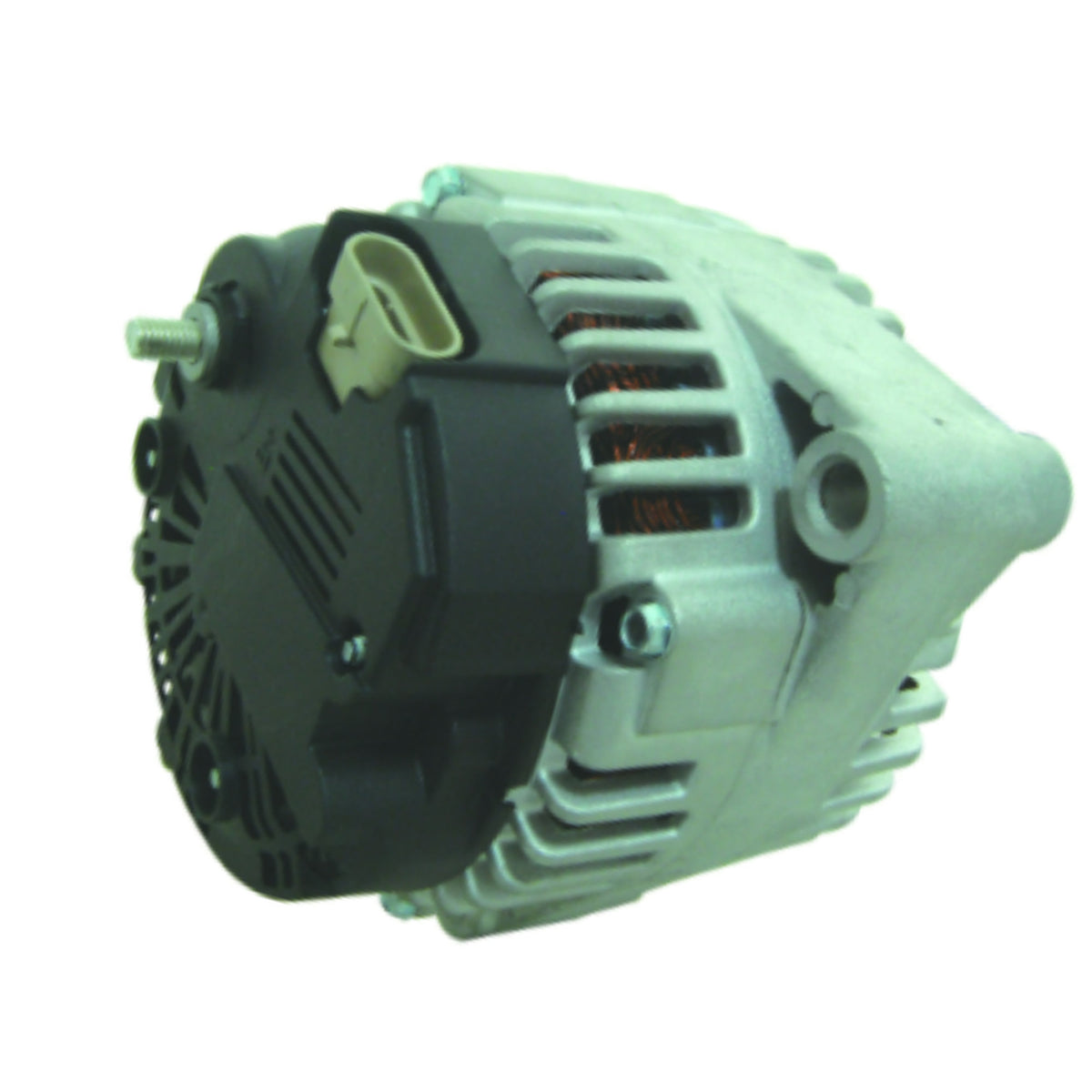

Alternator 145 Amp 2005-2013 Corvette TG15C046, TG15C089, TG15C107, TG15C139, TG15C150, TG15S051 - 13969A

Corvette V8 6.0L 364CID 2005-2007 Base
Corvette V8 6.2L 376CID 2008-2013 ZR1
Corvette V8 7.0L 427CID 2006-2013 Z06

Alternator Manufacturer and Factory #s
ACDelco 334-1493
Bosch Aftermarket AL8800X (Reman)
DENSO Auto Parts 211-6020
General Motors 10327514, 15791160, 15841234, 25888917, 25888970, 2605917A
Lester 13969A
Valeo 2540073, 2605916, 2605916A, 2650151, 2650151A, 2650152A, 2650164, 2650164A, 2650380, 2650380A, 2650381A, 2650491, 2650492, 26505916A, TG15C046, TG15C089, TG15C107, TG15C139, TG15C150, TG15S051, 849023, 420151

Manufacture Valeo
Amperage Rating 145
Decoupled Or Clutch Pulley Yes
Family TG15
Fan Type Internal
Ground Type Negative
Oe Manufacturer Valeo
Plug Clock Rear View Main Mounting Ear At 6 O Clock 1
Pulley Belt Type Serpentine
Pulley Groove Quantity 6
Regulator Type Internal
Rotation Direction Clockwise (Right)
Voltage 12

Alternator Parts List

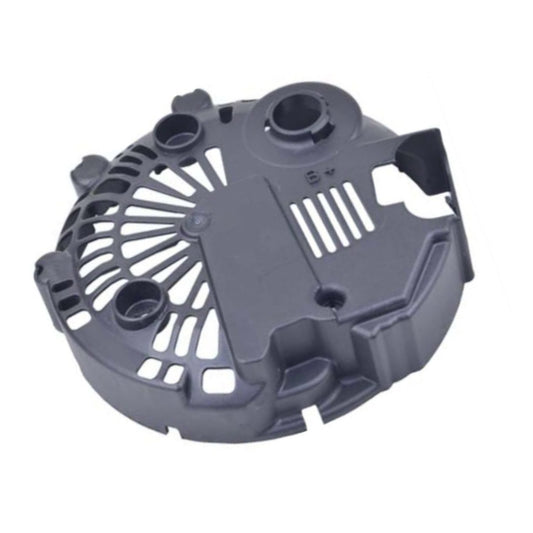

COVER 8408114 8408154 1 W012-26N
6202-2RS BEARING-15x35x11mm 53500 1 W02X-05-1
6303-2RS C3 BEARING- 54700 1 W02X-11-1
BRUSH-4.6x6.5x14mm 2 W032-00

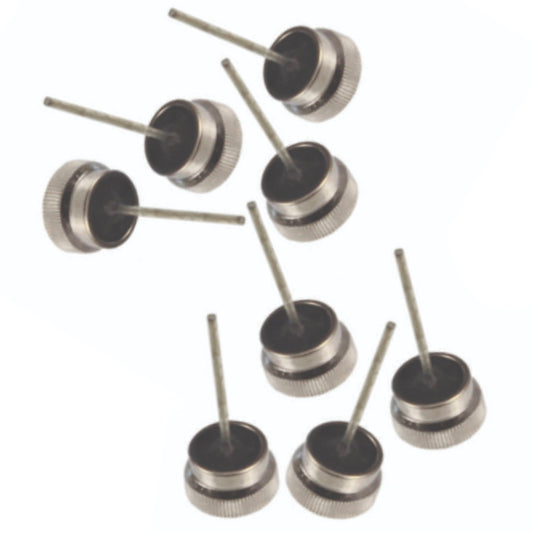

AVL DIODE-NEG 50A-22V 3 W04X-51
AVL DIODE-POS 50A-22V 3 W04X-52

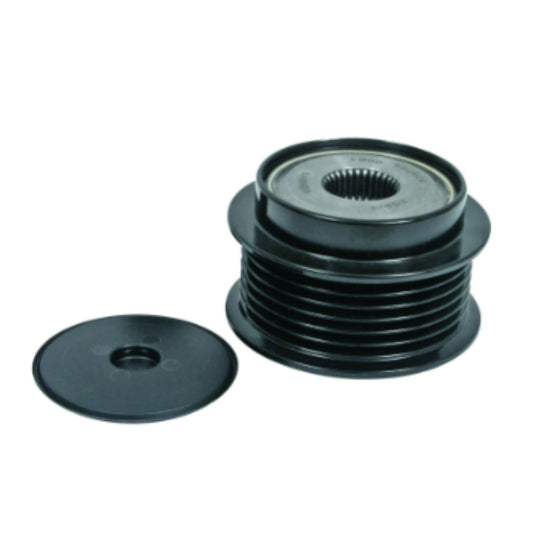

DCP PULLEY-11487 6GRV61mm 1 W052-14N
RECT-13969 CORVETTE OE 1 W062-54N
ROTOR-TG15 12V150A 70015143 1 W072-09N

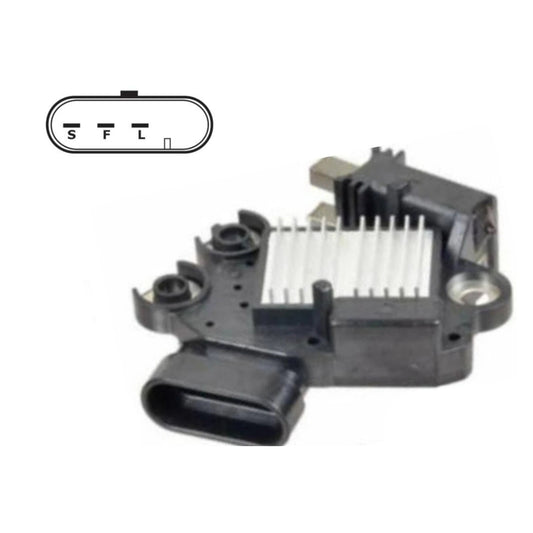

REGULATOR-13969 S-F-L 80084470 1 W082-23N W082-23 T8520
Plug 9801322
STATOR-150A CHEV TG15C 1 W102-09N

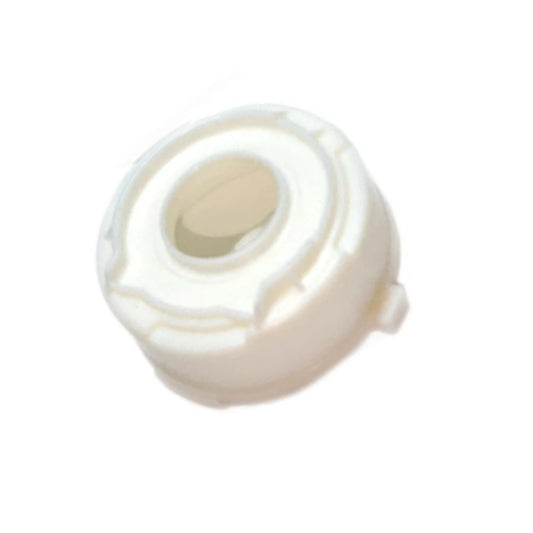

EARING CAP-A13VI SG TG 1 W112-13
VIBRATION DAMPENER-TG15C 4 W112-29
SEAL-132x136x1.5 1 W112-36
ALIGNMENT PIN-SG,TG OEM 1 W112-39N
ETAINER-FG, SG OE 1 W112-41N
RETAINER SCREW-M5 OE 4 W112-42N
LITENS DECPL PULLEY CAP-52mm 1 W115-228N

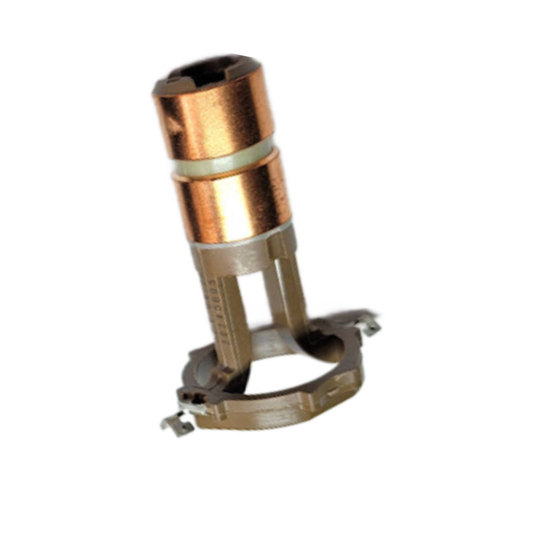

VALEO SLIP RING-14.9mm OE 1 W162-05
