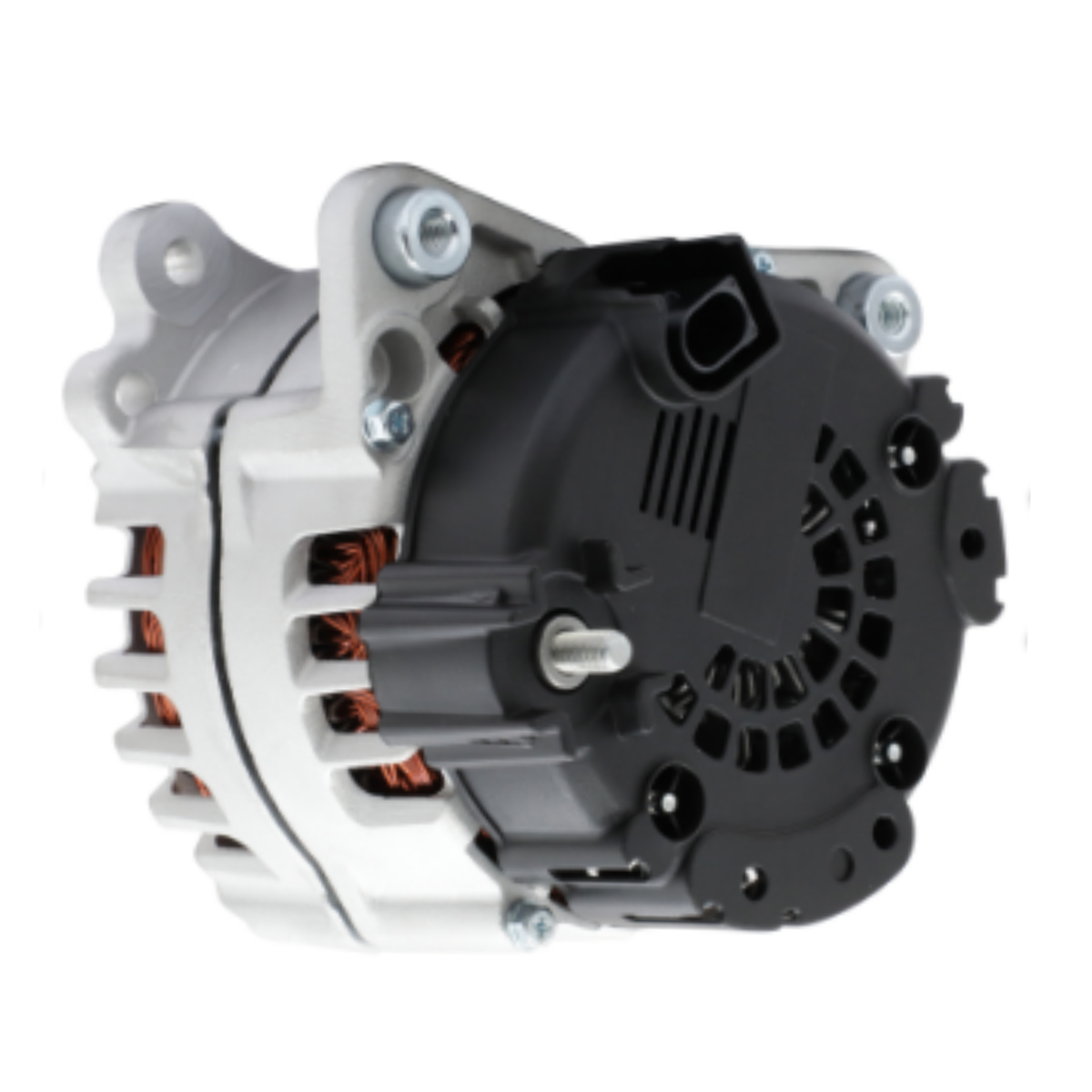

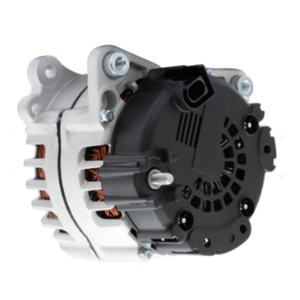

Alternator Audi Q7 DSL 2013-2015 059903019F, FG23S066, FGN23S066 - 20648_208-5204

Audi Q7 V6 3.0L 2013-2015 2967cc DSL Turbocharged

Alternator Manufacturer and Factory #s
Audi 059-903-019-F, 059-903-019F, 059903019F, Valeo FG23S066, FGN23S066, 439817, 440471, 2616575B, 208-5204 // Other 20648

Manufacture Valeo
Amperage Rating 220
Decoupled Or Clutch Pulley Yes
Design IR/IF
Family FG23
Family FGN2
Fan Type Internal
Oe Manufacturer Valeo
Outside Pulley Diameter 56
Plug Clock Rear View Main Mounting Ear At 6 O Clock 3
Plug Orientation Rear
Pulley Belt Type Serpentine
Pulley Diameter 56
Pulley Groove Quantity 6
Pulley Type SC6
Regulator Type Internal
Rotation Direction Clockwise (Right)
Type Alternator
Voltage 12

VALEO Alternator 1 439817
Cover AUDI OE 1 28307, 593921, 2606459, 8408194 - W012-70N
6202-2RS BEARING-15x35x11mmPFI 1 W02X-05-1 53500
6303-2RS C3 BEARING-PFI 1 W02X-11-1 54700
DIODE-NEG 50A-22V 1 W04X-51
DIODE-POS 50A-22V 1 W04X-52

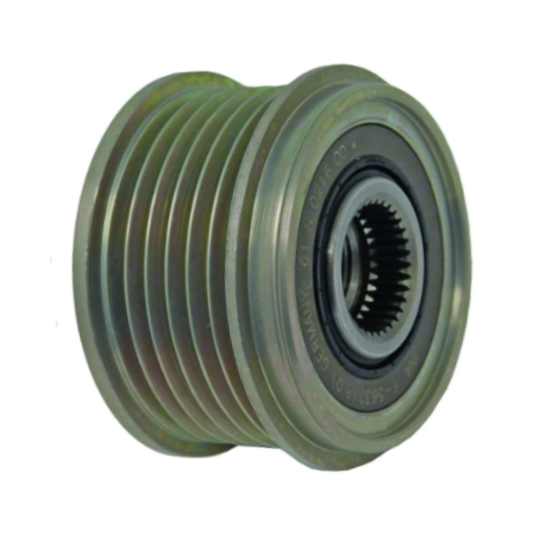

6GRV54mm OE 1 W052-30N 24-94284-3
RECT-Frame 1 W062-51N 77084638
Rectifier, Pos 77084638A
ROTOR-FG23S 12V 107.4mm 1 W072-18N
Regulator OE 1 W082-120N 80085556
Plug 9801065
STATOR-220A 12V FG23S OE 1 W102-24N
BEARING CAP-A13VI SG TG 1 W112-13 85010003
BEARING CAP-FG15S SERIES 1 W112-28N
ALIGNMENT PIN-SG,TG OEM 1 W112-39N
BRG RETAINER-FG, SG OE 1 W112-41N
BRG RETAINER SCREW-M5 OE 4 W112-42N
SLIP RING-14.9mm OE 1 W162-05 710111
