Alternator Rebuild Kit 3.6L 220 Amp 2018-2023 Wrangler, 2020-2023 Gladiator 220A 421000-7221 - 21024RK-A

Jeep Gladiator V6 3.6L VIN G 2020-2023 220 Amp Option
Jeep Wrangler V6 3.6L  VIN G 2018-2023 220 Amp Option

Alternator Manufacturer and Factory #s
Chrysler 56029765AA
Denso 421000-7221, MX421000-7221
Lester 21024
Pic 290-5820

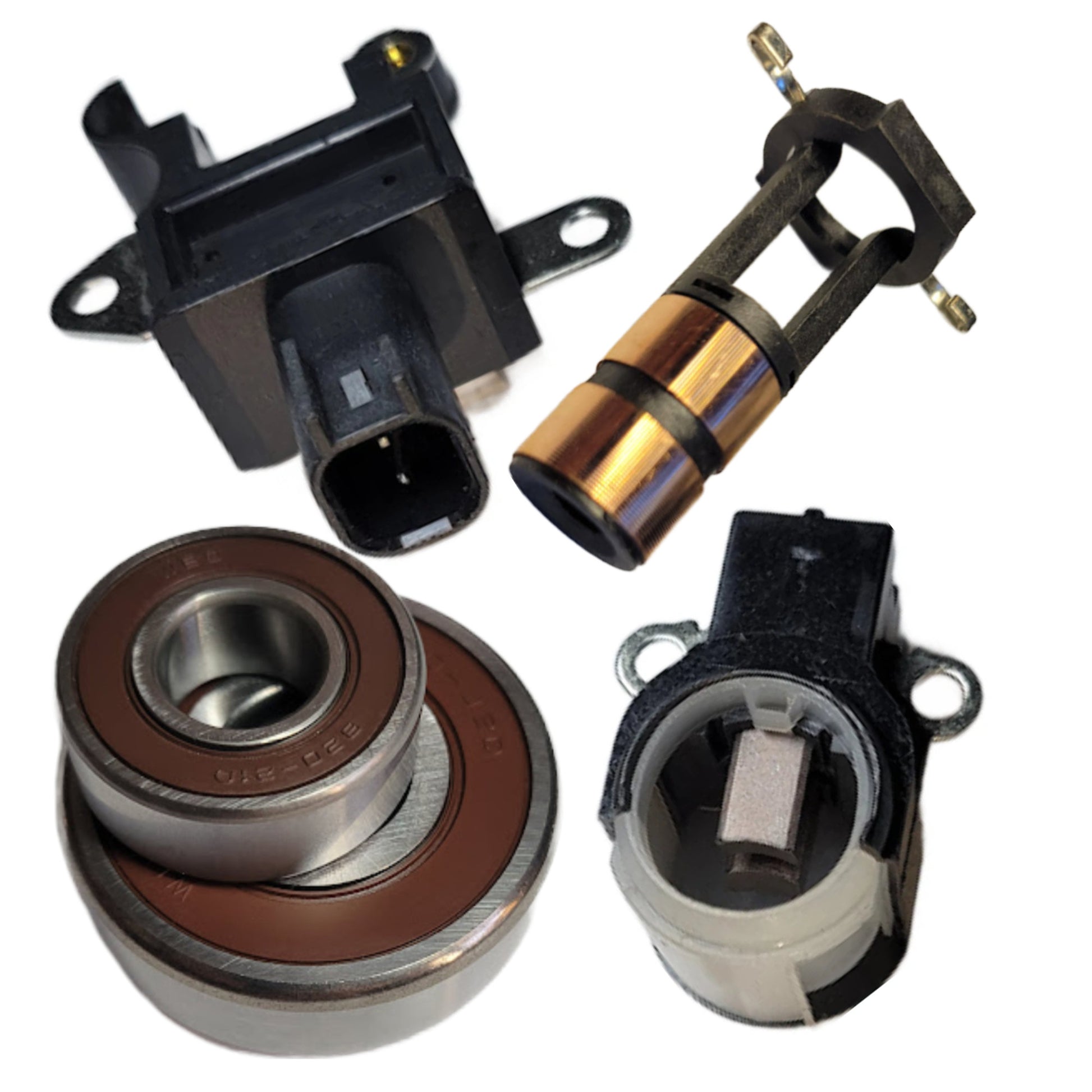

• Alternator Terminal Connector, Specifications: ECU Operated Terminal, F (FLD), B+ Terminals, Denso 136-160A Alternators, provides an interface between the alternator and vehicle ECU. The design incorporates an EMI 4.7uF capacitor, a rectifier B+ terminal with series resistor, and a field circuit terminal, :B+ terminal with 2.4 kOhm resistor, EMI capacitor Replaces 211-608, 170-52006, W115-202, 99901009, TBND165 - 46-82208

• SRE Rotor Bearing 15x35x13mm 279, Replacing 949100-2790, 949100-3980, 949100-4440, 53514 - 10-2021-4W

• Drive End Bearing 55222 17x52x16mm Ref# 949100-3330, 949100-4370, 949100-5010 - 10-3042-4W

• Brush Holder Assembly with Brushes, Replacing 021620-3030 - 39-8206

• Slip Ring for Hairpin Denso 5.8mm ID • 14.3mm OD Slip Ring • 11mm LL - 28-82854
