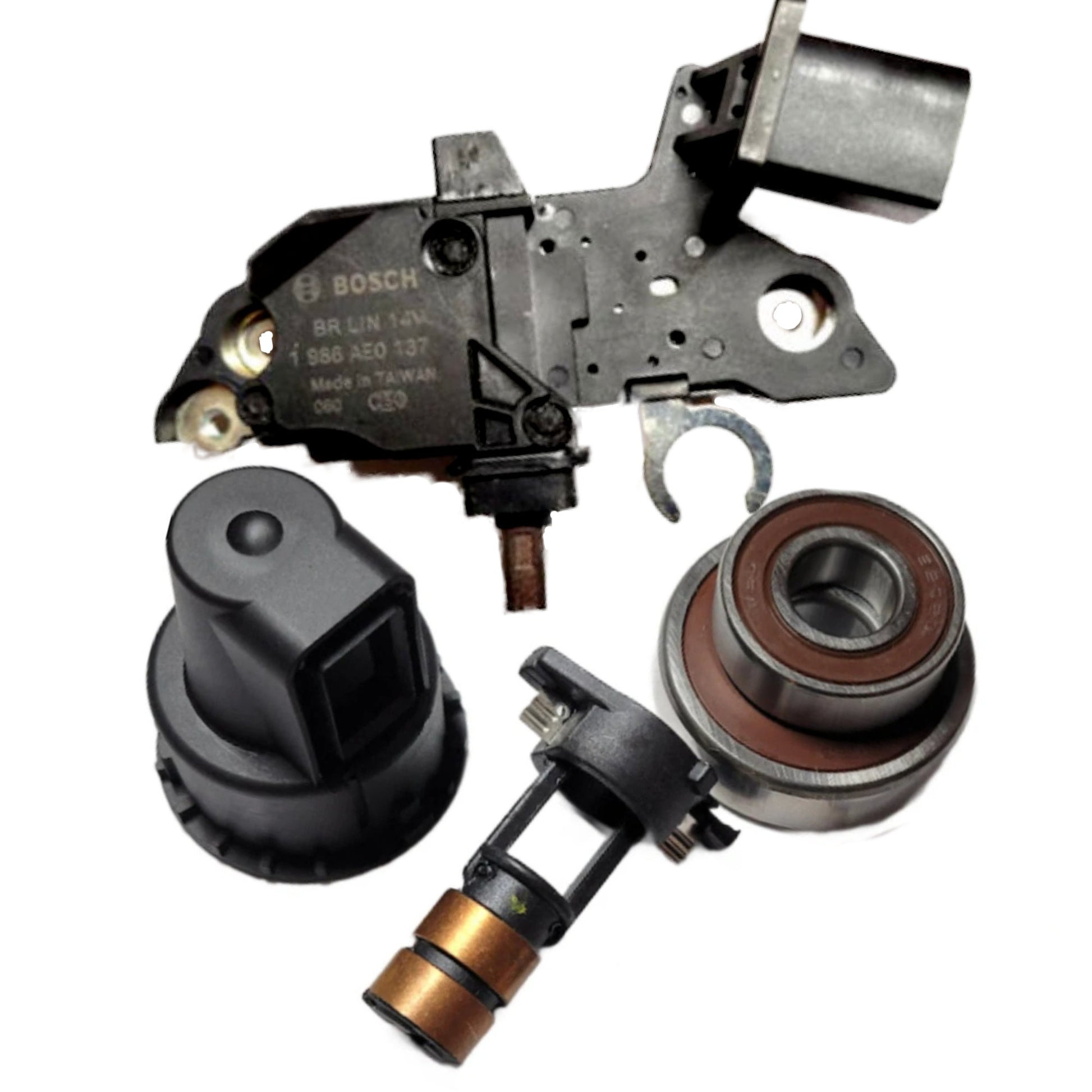

Alternator Kit with OEM Bosch Mercedes C230 C280 C350 E350 SLK280 SLK300 SLK350 - 11215OERK-A

• OEM Genuine Bosch Voltage Regulator with Brushes - 1986AE0137 // Specifications: 12 Volt System, B-Circuit, 10.7 - 16.0 Voltage Set, High Side Drive Regulator for Bosch IR/IF Alternator on Mercedes, Terminal Identification: LIN, LIN (COM) Regulator, Computer Controlled (LIN) Regulator, Lin or Stator Activated, Field Rating 5 Amps, Voltage Set Point is Selectable from 10.6V to 16.0V, With Field Short Circuit Protection, With Soft Start and LRC Function // Replaces: Bosch 1986AE0137, F00M144157, F00M145309, F00M145377, F00M145699, F00M145885, Mercedes-Benz 003 154 43 06, 003 154 74 06, 003 154 99 06, 003-154-61-06, A 003 154 43 06, A 003 154 74 06, A 003 154 99 06, A 003-154-61-06, A0031544306, A0031547406, A0031549906, A0031546106 Other: W080-56N, GNR-B321, IB885, 09140, 176-050, BO-1174, VRB885, 80201225

• Drive End Bearing 54700 17x47x14mm 6303-2RS Replacing 1120905001, 1120905004, 1120905021, 1120905037, 1120905039, 1120905068, 1120905074, 1120905516, 1120905518, 1120905533, 1900905304, 1900905326, 1900905331, 1900905376, 1900905378, 1900905379, F00M990410, F00M990411, F00M990412 - 6-303-4W

• SRE Rotor End Bearing 53507 17x35x10mm 6003-2RS Replacing F00M990405, F00M990405370, F00M990432 - 6-103-4N

• Slip Ring 52mm L, 7.1mm ID, 16.1mm OD Replacing Bosch 1124303007, F00M143019 Other 7120202, 313-24002 - 28-91852

• Plastic Bearing Tolerance Ring, 35mm ID, 44mm OD x 50mm, Replacing Bosch F00M146900 Other, 130-07023, 92202019, W110-61 - 46-91553

These Applications with 150Amp Option matching a reference # below. Please contact us if you have a 180 Amp or different one for a correct link. Thank you

Mercedes-Benz Car
C230 V6 2.5L 2496cc 2006-2009
C280 V6 3.0L 2996cc 2006-2007
C300 V6 3.0L 2996cc 2008
C350 V6 3.5L 3498cc 2006-2011
CLK350 V6 3.5L 3498cc 2006-2009
E350 V6 3.5L 3498cc 2010-2011
SLK280 V6 3.0L 2996cc 2006-2008
SLK300 V6 3.0L 2996cc 2009-2011
SLK350 V6 3.5L 3498cc 2005-2009

Alternator Manufacturer and factory #s
Bosch 0 124 525 054, 0 124 525 055, 0124525054, 0124525055, 0986047150, 0986047157, AL0818N, AL0818X, 0 124 525 161, 0 124 525 195, 0 399 604 015, 0124525161, 0124525195, 0399604015,
ERA 209341
Excel 10846
Hollander 60961
Lester 11215
Mercedes-Benz 272-154-00-02, A272-154-00-02, 2721540002, 014-154-37-02, 272-154-00-02, 636-154-01-02, A014-154-37-02, A636-154-01-02
Remy Light Duty    12751
Wilson 90-15-6512
JANNCO 400-24169N
Bosch 0124525054, 0124525055, 0986047150, 0986047157, AL0818N, AL0818X
PIC Picture ID 220-5464, 220-5656, 220-5690, 220-6116
Youtech/PartRef 325382
