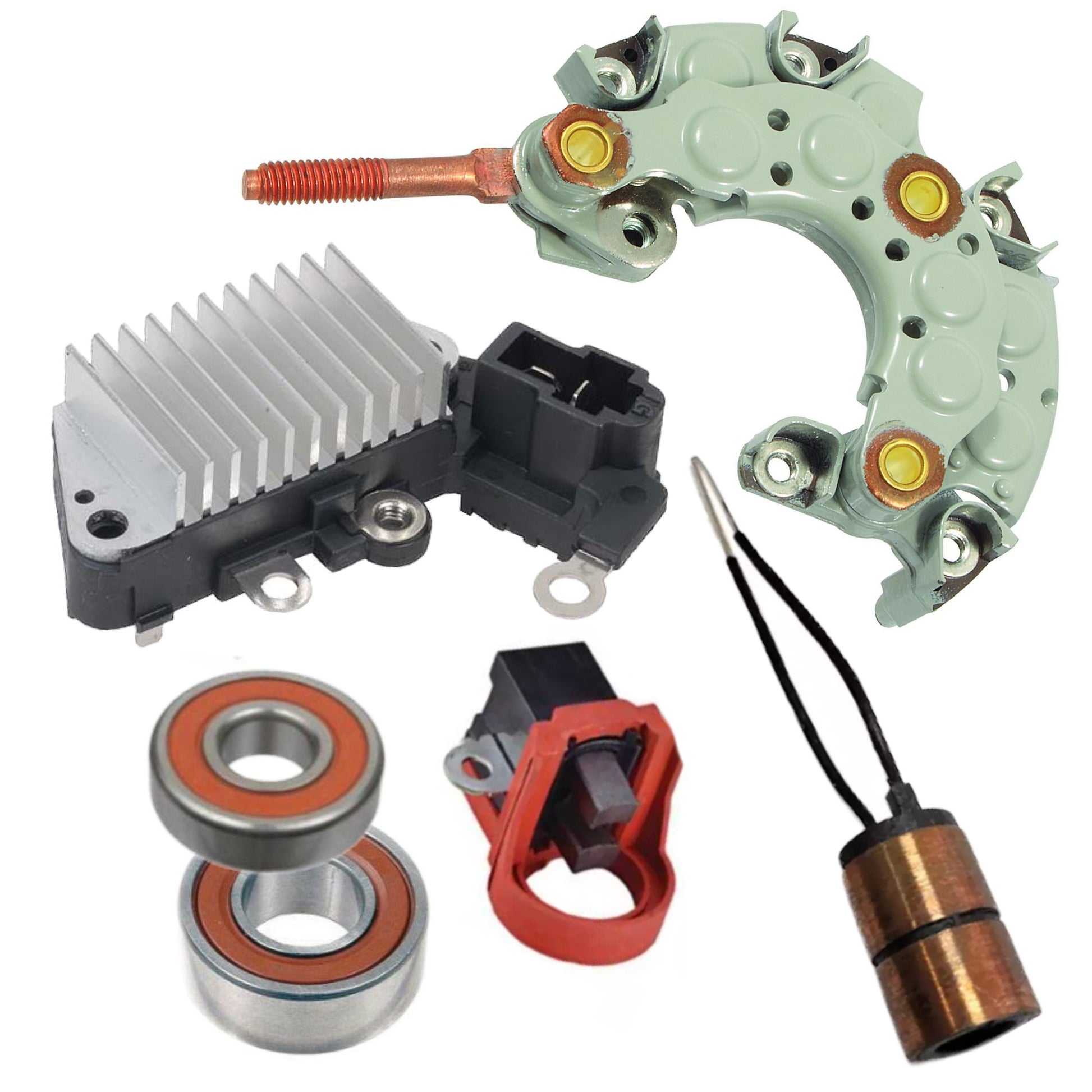

Alternator Premium Rebuild Kit Kubota Mower Utility Tractor V1505 w/101211-8770, -8771, -8772, -8773 - 12534PRK-A

Need to rebuild your vehicle's alternator? This premium rebuild component kit is engineered to meet or exceed original factory specs, ensuring a perfect fit and long-lasting charging performance.

🚘 Vehicle Application Details

• Kubota 4-Wheel Drive Tractor:
  • B2650HSD L4 1.5L 91cid (V1505) (2010-2013)
  • B2650HSDC L4 1.3L 81cid (D1305) (2013-2024)
  • B2650HSDC L4 1.5L 91cid (V1505) (2010-2024)
  • B3000HSDC L4 1.5L 91cid (V1505) (2010-2013)
  • B3030HSDC L4 1.5L 91cid (V1505) (2010-2013)
  • B3350HSD L4 1.5L 91cid (V1505) (2013-2024)
  • B3350HSDC L4 1.5L 91cid (V1505) (2013-2019)
  • B3350SUHSD L4 1.5L 91cid (V1505) (2013-2024)
  • LX2610HSDCC L4 1.3L 81cid (D1305) (2019-2025)
  • LX3310HSD / LX3310HSDCC L4 1.5L 91cid (V1505) (2019-2025)
• Kubota Commercial Zero-Turn Mower:
  • ZD1511LF / ZD1511RL / ZD1511RLF L4 1.5L 91cid (V1505) (2017-2025)
• Kubota Compact Utility Tractor:
  • B3000HSDCC / B3030HSDCC L4 1.5L 91cid (V1505) (2010-2013)
• Kubota Riding Rotary Turf Mower:
  • F3990 L4 1.5L 91cid (V1505) (2014-2020)
• Kubota Utility Vehicle:
  • RTV-X1120 Deluxe / RTV-X1120D (1123cc) (2014-2023)
  • RTV-X1140 / RTV-X1140 Worksite / RTV1140CPX (1123cc) (2011-2024)
  • RTV-X900 General Purpose / RTV-X900 Worksite / RTV900 (898cc D902E-UV) (2004-2023)
• Kubota Zero-Turn Mower:
  • ZD1511LF-3 / ZD1511RL-3 / ZD1511RLF-3 L4 1.5L 91cid (V1505) (2017-2025)

🔍 Cross-Reference Alternator Assemblies (Fits These Units)

• Denso OE: 101211-8770, 101211-8771, 101211-8772, 101211-8773
• Kubota OE: K7561-61910, K7561-61911, K7561-61912, K7561-61913, K7561-61914, K7561-61920
• Lester / PIC References: Lester 12534 | PIC 290-5169
• Other Crossovers: J&N 400-52121R, Wilson 70-29-12534, 90-29-5529

📐 Component-Specific Technical Data

⚡ Voltage Regulator Specs

• Technical Specifications: A-Circuit, IG-L, L Terminal, 14.6 Volt Set Point, 57.5mm Center to Center Mounting Holes (L Terminal drives choke)
• Replaces OEM: Daihatsu 27700-87209-000 | Denso 126000-0970, 126000-0971, 126000-0990, 126000-1380, 126000-278, 126000-2780, 126000-2781 | Iseki 6281-271-002-0 | Mitsubishi MD604751
• Aftermarket Crossovers: 230-52025, VRH2005-15, MFVR01890, W085-121, 216-008, GNR-N002, VR0570, 80904444, 80904405, IN255

⚡ Rectifier Diode Assembly Specs

• Technical Specifications: B+ Terminal M6 x 1.0 Post, 88.2mm OD
• Replaces OEM: Chengdu Huachuan Denso (CHCD) JT084-53 | Daihatsu 27357-87704-000 | Denso 021580-3030, 021580-3340 | Honda 31127-PE9-941 | Kubota 17369-64851 | Mitsubishi MD604585
• Aftermarket Crossovers: 211-267, 77904056, INR737

⚡ Brush Holder Assembly Specs

• Replaces OEM: Denso 021620-2010, 021620-2180, 021620-2200, 021620-2201, 021620-2630, 021620-2750
• Interchange Numbers: 39-8200

⚡ Drive End Bearing (Front) Specs

• Industry Number: 53500 / 6202-2RS (EMQ Quality)
• Dimensions: 15mm ID x 35mm OD x 11mm W
• Replaces OEM: Denso 949100-0070, 949100-0160, 949100-0330, 949100-0340, 949100-2950, 949100-2951, 949100-3160, 949100-3161, 949100-3630, 949100-3730, 949100-3731
• Interchange Numbers: 6-202-4N

⚡ Rotor SRE Bearing (Rear) Specs

• Industry Number: 53207 / W6002-2RS (EMQ Quality)
• Dimensions: 15mm ID x 32mm OD x 11mm W
• Replaces OEM: Denso 949100-2940, 949100-3170, 949100-3660, 949100-3670
• Interchange Numbers: 6-3102-4W

⚡ Slip Ring Specs

• Dimensions: 8.9mm ID x 14.6mm OD x 23.9mm Length
• Interchange Numbers: 7190904A, 313-52001, 14520W, 213-500, ND-492, 28-82853

❤️ Our Worry-Free Promise

Because automotive electrical parts are highly specific, we want you to buy with total confidence. If you tear down your alternator and realize you need a different size or configuration, don't sweat it. We offer easy, no-hassle returns and fast refunds. We are here to help your DIY build succeed!
