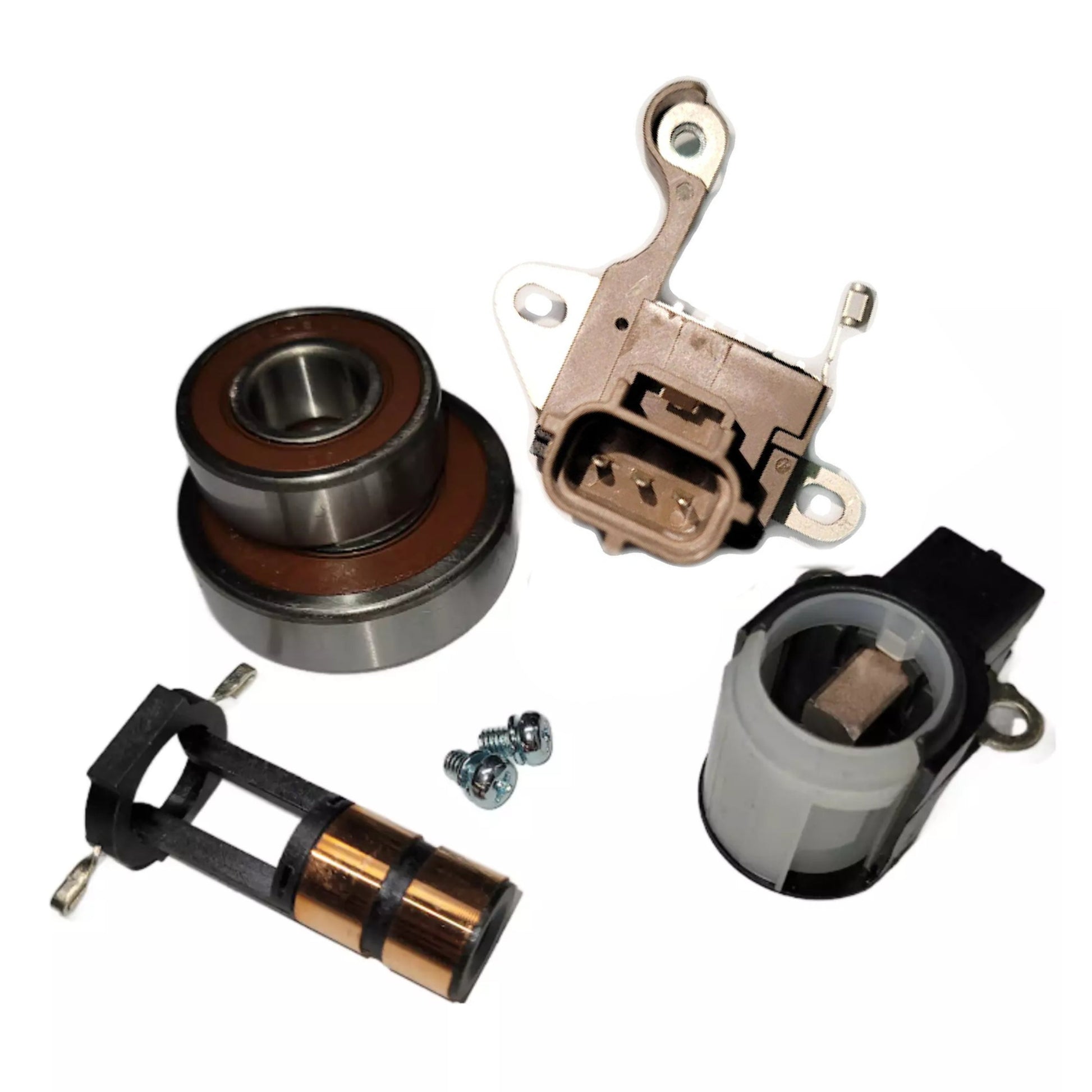

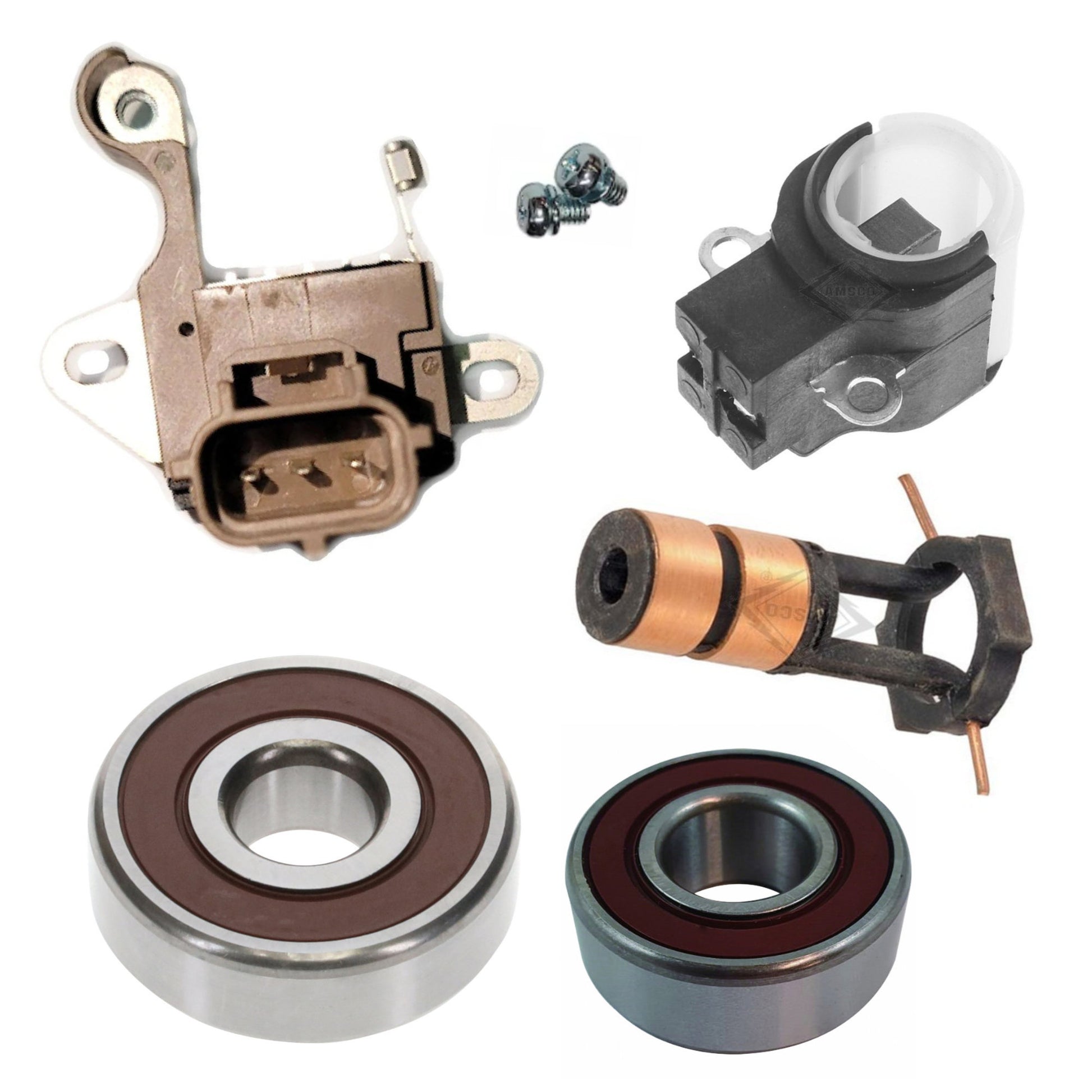

Alternator Rebuild Kit 170A Fusion Taurus MKC MKZ 104210-6560, -6561, 104211-0310, -0311 - 11665RK-A

🚘 Vehicle Application Details

• Ford: Edge L4 2.0L (2015-2016), Fusion L4 2.0L (2013-2020), Fusion L4 2.5L (2013-2020), Taurus L4 2.0L (2013-2017), Special Service Police Sedan L4 2.0L (2016)
• Lincoln: MKC L4 2.0L (2015-2019), MKC L4 2.3L (2015-2019), MKZ L4 2.0L (2013-2020)

🔍 Cross-Reference Alternator Assemblies (Fits These Units)

• Arrowhead: AND0588
• Bosch Aftermarket / Service Europe: AL7691X, 0-986-CR6-201, 0-986-UR6-201
• Denso: 104210-656, 104210-6560, 104210-6561, 104211-031, 104211-0310, 104211-0311, 104211-078, 104211-0780, TN104211-0310, 210-0615, 210-1102
• Ford OE: 2015142, DG1T-10300-BF, DG1T-10300-GA, DG1Z-10346-E, FJ7T-10300-AA, FJ7Z-10346-A, G2GT-10300-BA, G2GT-1300B-A, G2GZ-10346-C, G2GZ-10346-J
• Lester / PIC: Lester 11665 | PIC 290-6312
• Motorcraft: GL-8671, GL-8841, GL8847

📐 Component-Specific Technical Data

⚡ Voltage Regulator Specs

• Technical Specifications: 14.0 Volts Default Set Point, PCM Controlled (RVC Technology)
• Replaces OEM: Denso 126600-3600, 126600-3960, 126600-4210, 3600, 4210, GC5B4210
• Aftermarket Crossovers: IN6368, 230-52158, 230-52184, AND6173, VRH2005-177, VRH2005-213, W085-353, 216-105, 26535, GNR-N336

⚡ Slip Ring Specs

• Design: For Hairpin Denso Alternators
• Dimensions: 5.8mm ID x 14.3mm OD x 11mm LL
• Interchange Numbers: 28-82854

⚡ Brush Holder Assembly & Hardware Specs

• Design: Brush Holder Assembly with Brushes
• Replaces OEM: 021620-3030
• Interchange Numbers: 39-8206
• Included Hardware: 2x Attaching Bolts (M4 x 0.7 x 5.7mm L | Part # 85-1205 x2)

⚡ Drive End Bearing (Front) Specs

• Included Bearings: Includes 2 different size Drive End bearings to cover all factory variations of this alternator:
• Option 1 (Industry # 54700 / 6303-2RS): 17mm ID x 47mm OD x 14mm W | Ref# 949100-1010, 949100-2820 | Part # 6-303-4W
• Option 2 (Industry # 55222): 17mm ID x 52mm OD x 16mm W | Ref# 949100-3330, 949100-4370, 949100-5010 | Part # 10-3042-4W

⚡ Rotor SRE Bearing (Rear) Specs

• Industry Number: 53514 / 279
• Dimensions: 15mm ID x 35mm OD x 13mm W
• Interchange Numbers: 949100-2790, 949100-3980, 949100-4440, 10-2021-4W

❤️ Our Worry-Free Promise

Because automotive electrical parts are highly specific, we want you to buy with total confidence. If you tear down your alternator and realize you need a different size or configuration, don't sweat it. We offer easy, no-hassle returns and fast refunds. We are here to help your DIY build succeed!
