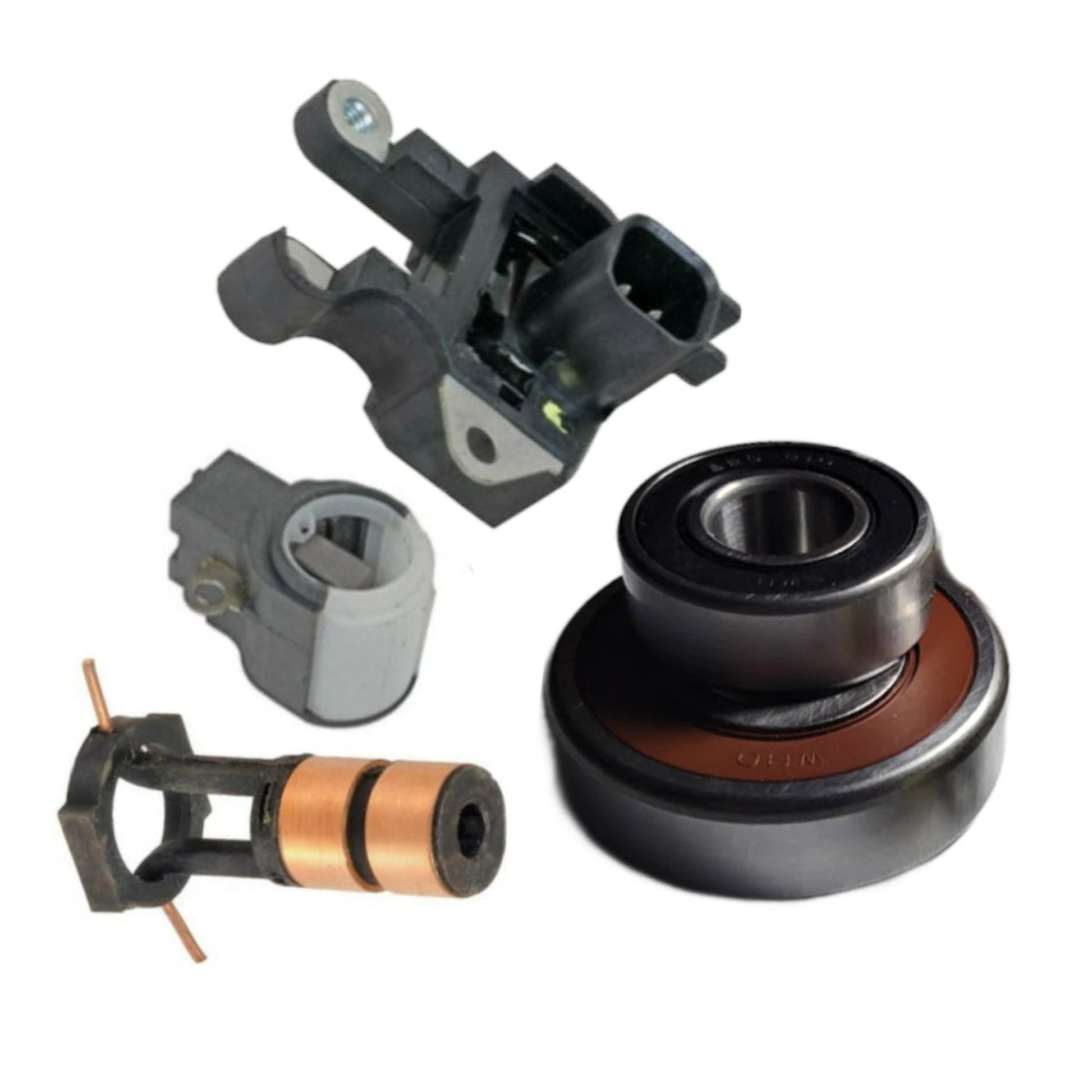

Alternator Rebuild Kit 180 Amp 3.6L Charger Challenger Durango Grand Cherokee Ram - 11598RK-A

Dodge Chrysler 300 V6 3.6L 2011-2023 180 Amp option
Dodge Challenger V6 3.6L 2015-2023 180 Amp option
Dodge Charger V6 3.6L 2011-2023 180 Amp option
Dodge Durango V6 3.6L 2011-2020 180 Amp option
Jeep Grand Cherokee V6 3.6L 2011-2020 180 Amp option
Ram 1500 V6 3.6L 2013-2015 180 Amp option

Alternator Manufacturer and Factory #
Bosch Remanufactured AL6490X
Chrysler 4801778AF, 4801778AI, P04801778AF, R4801778AF, 56029789AA, R6029789AA,04801778AI, 4801778AI, P04801778AI
Denso 421000-7040, 421000-7041, MX421000-7041, 421000-7200, 421000-7042
Lester 11598
PIC# 290-5619, 290-5725

• Terminal Block Alternator PCM Harness Connection: (an interface, not a regulator - provides an interface between the alternator and vehicle ECU. The design incorporates an EMI capacitor, a rectifier B+ terminal with series resistor and a field circuit terminal. • B+ terminal with 2.4 kOhm resistor • EMI capacitor - Replaces / Interchanges: 170-52005, 46-82207, AND1631, Denso 126220-0311, 9990-1007, TB-ND163 - 46-82207

• Rotor SRE Bearing 53514 15x35x13mm 279, Replacing 949100-2790, 949100-3980, 949100-4440 - 10-2021-4W

• Drive End Bearing 55222 17x52x16mm Ref# 333-2RS, Replacing 949100-3330, 949100-4370, 949100-5010 -10-3042-4W

• Brush Holder Assembly with Brushes, Replacing 021620-3020, 021620-3030 - 39-8206

• Slip Ring for Hairpin Denso 5.8mm ID • 14.3mm OD Slip Ring • 11mm LL - 28-82854
