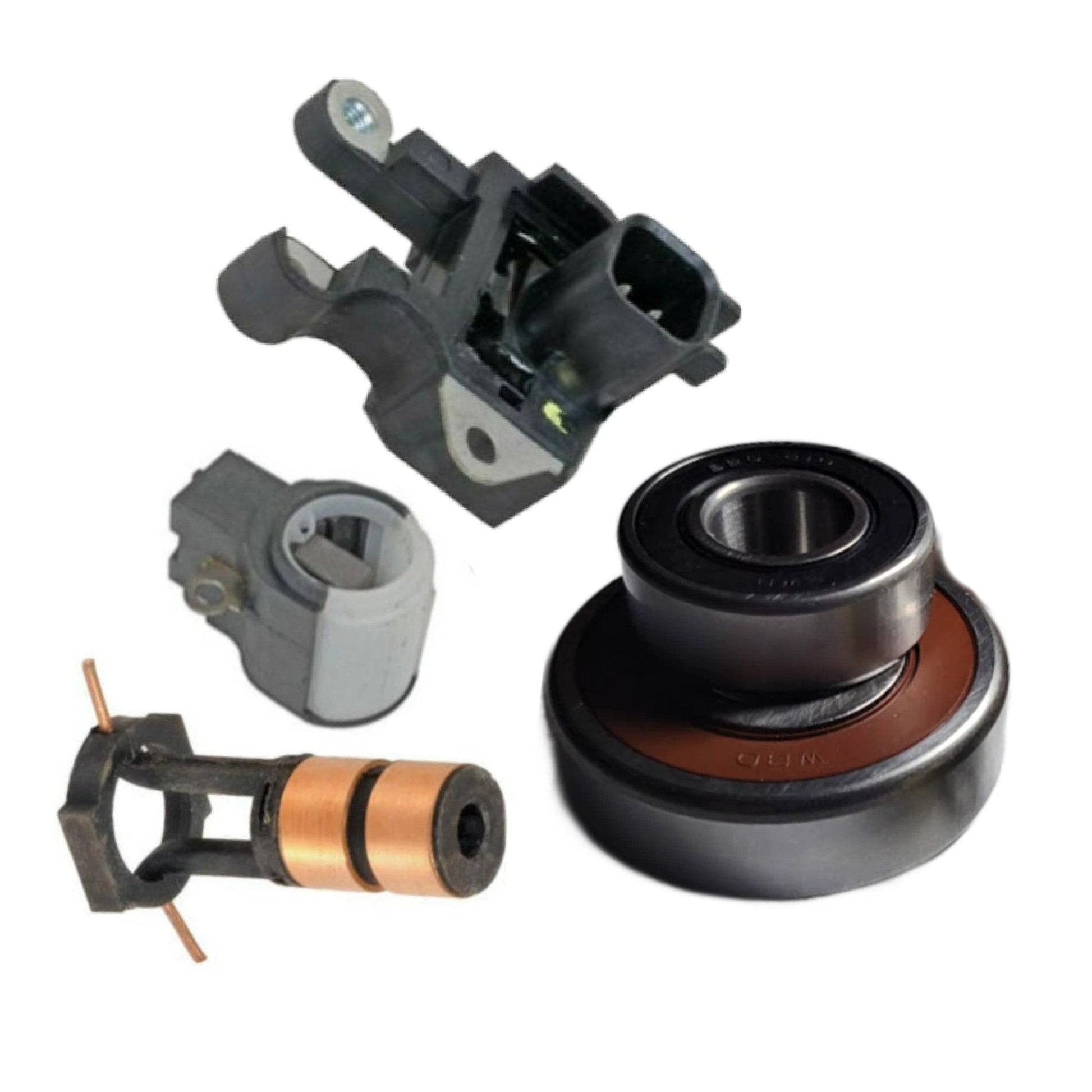

Alternator Rebuild Kit 180 Amp Chrysler 300 5.7L Challenger Durango Gr Cherokee - 11575RK-A

Need to rebuild your vehicle's alternator? This premium rebuild component kit is engineered to meet or exceed original factory specs, ensuring a perfect fit and long-lasting charging performance.

🚗 Vehicle Application Details

• Models: Fits the following models equipped with the 180 Amp option:
• Chrysler 300: V8 5.7L (2011-2023)
• Dodge Challenger: V8 5.7L (2015-2023)
• Dodge Charger: V8 5.7L (2011-2023)
• Dodge Durango: V8 5.7L (2011-2020)
• Jeep Grand Cherokee: V8 5.7L (2009-2020)

🔍 Cross-Reference Alternator Assemblies (Fits These Units)

• Chrysler OEM: 04801833AB, 4801833AB, P04801833AB
• DENSO: 421000-702, 421000-7020, 421000-7021, TN421000-7021, 210-0828, 210-1218
• Bosch Aftermarket: AL6488X (Reman)
• Lester / PIC References: Lester 11575

📐 Component-Specific Technical Data

⚡ Terminal Block Alternator PCM Harness Connection Specs

• Technical Specifications: Provides an interface between the alternator and vehicle ECU. The design incorporates an EMI capacitor, a rectifier B+ terminal with series resistor, and a field circuit terminal. B+ terminal features a 2.4 kOhm resistor.
• Interchange Numbers: 170-52005, 46-82207, AND1631, Denso 126220-0311, 9990-1007, TB-ND163

⚡ Brush Holder Assembly Specs

• Design: Complete Brush Holder Assembly with Brushes
• Replaces OEM: 021620-3020, 021620-3030
• Aftermarket Crossover: 39-8206

⚡ Slip Ring Specs

• Design: For Hairpin Denso Alternators
• Dimensions: 5.8mm ID x 14.3mm OD x 11mm LL
• Interchange Number: 28-82854

⚡ Drive End DE Bearing (Front) Specs

• Industry Number: 54700 / 6303-2RS
• Dimensions: 17mm ID x 47mm OD x 14mm W
• Interchange Numbers: 1900905164, 6-303-4W

⚡ Rotor SRE Bearing (Rear) Specs

• Industry Number: 53514 / 279
• Dimensions: 15mm ID x 35mm OD x 13mm W
• Interchange Numbers: 949100-2790, 949100-3980, 949100-4440, 10-2021-4W
