Alternator Rebuild Kit 190 Amp 2012-2025 Wrangler, 2020-2025 Gladiator 421000-7210 421000-7211 - 11597RK-A

Need to rebuild your vehicle's alternator? This premium replacement component kit is engineered to meet or exceed original factory specs, ensuring a perfect fit and long-lasting charging performance.

🚘 Vehicle Application Details

• Jeep Truck / SUV:
• Gladiator V6 3.6L (2020-2025),
• Wrangler V6 3.6L (2012-2025)

🔍 Cross-Reference Alternator Assemblies (Fits These Units)

• Chrysler: 56029597AA, 56029597AB
• Denso: 421000-7210, 421000-7211
• Lester / Other References: 11597
• Unit Specifications: 190 Amp / 12 Volt, CCW, for Denso Hairpin ER/IF, SD6

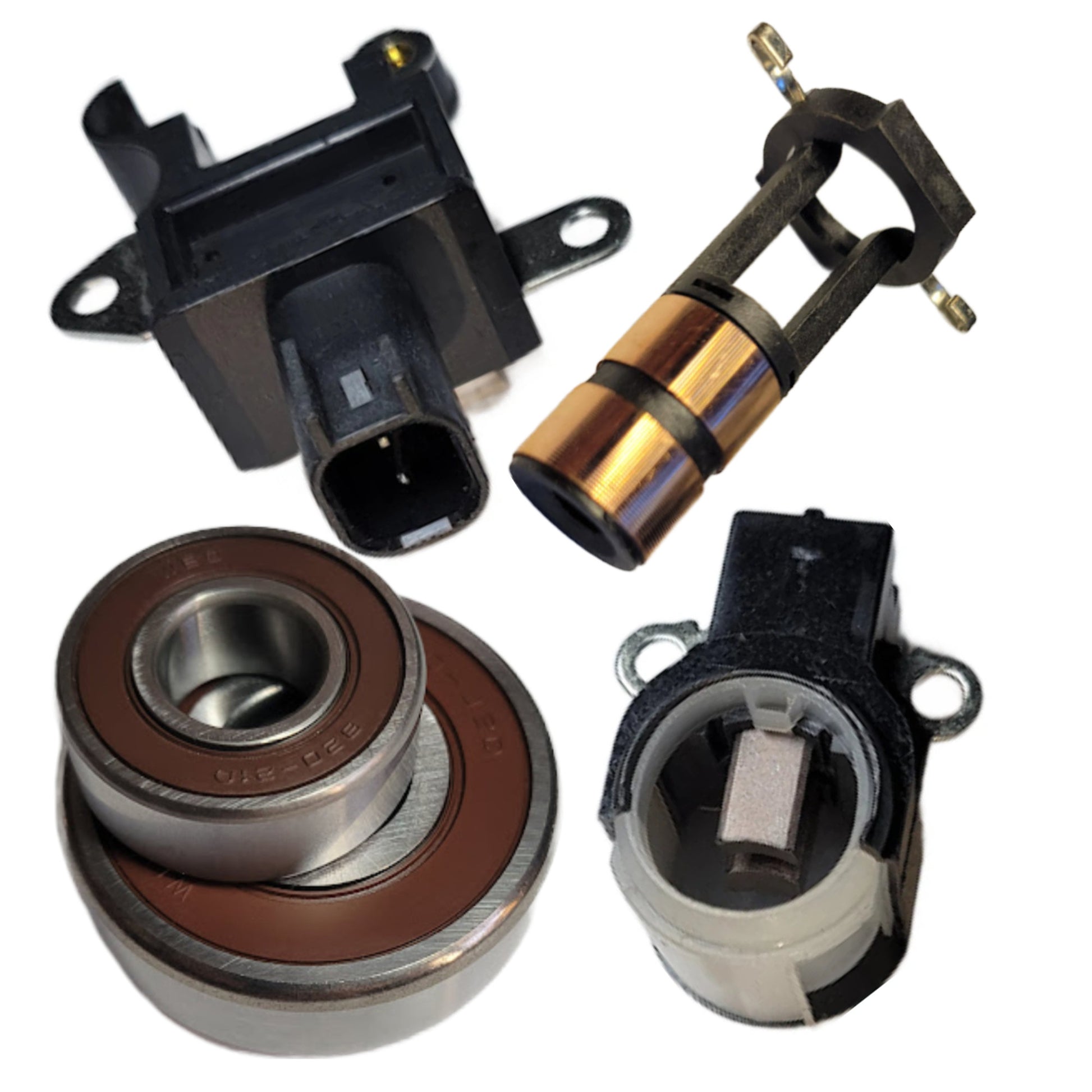

📐 Component-Specific Technical Data

⚡ Alternator Terminal Connector Specs

• Technical Specifications: ECU Operated Terminal, F (FLD) and B+ Terminals, for Denso 136-160A Alternators. Design incorporates an EMI 4.7uF capacitor, a rectifier B+ terminal with a series 2.4 kOhm resistor, and a field circuit terminal.
• Aftermarket Crossovers: 211-608, 170-52006, W115-202, 99901009, TBND165, 46-82208

⚡ Drive End Bearing (Front) Specs

• Industry Number: 55222
• Dimensions: 17mm ID x 52mm OD x 16mm W
• Interchange Numbers: 949100-3330, 949100-4370, 949100-5010, 10-3042-4W

⚡ Rotor SRE Bearing (Rear) Specs

• Industry Number: 53514 / 279
• Dimensions: 15mm ID x 35mm OD x 13mm W
• Interchange Numbers: 949100-2790, 949100-3980, 949100-4440, 10-2021-4W

⚡ Brush Holder Assembly with Brushes Specs

• Interchange Numbers: 021620-3030, 39-8206

⚡ Slip Ring Specs

• Design: For Hairpin Denso Alternators
• Dimensions: 5.8mm ID x 14.3mm OD x 11mm LL
• Interchange Numbers: 28-82854
