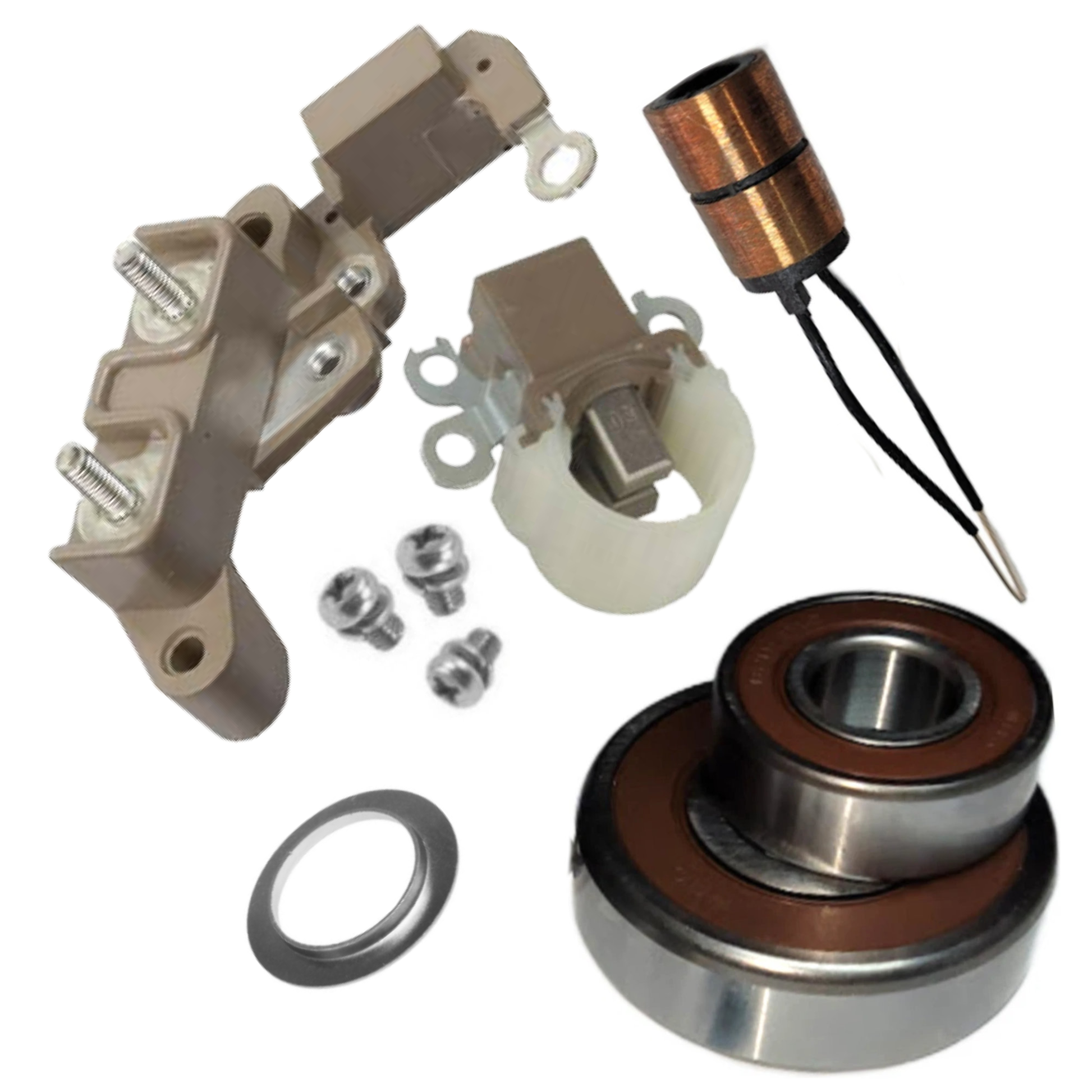

Alternator Rebuild Kit 1994-1998 Ram 2500 3500 5.9L Dsl 120 Amp 121000-4150, 121000-4151 - 13302RK-A

Dodge Truck
Ram 2500 L6 5.9L Dsl 359cid 1994-1998
Ram 3500 L6 5.9L Dsl 359cid 1994-1998
Ram 2500 Van V8 5.2L 5211cc 318cid 1997
D250 L6 5.9L 359cid Diesel 1990-1993
D350 L6 5.9L 359cid Diesel 1990-1993
W250 L6 5.9L 359cid Diesel 1990-1993
W350 L6 5.9L 359cid Diesel 1990-1993

Alternator Manufacturer and Factory #s
Bosch Remanufactured AL6510X
Chrysler 56027221, 5234374, R5234374
Denso 121000-4080, 121000-4150, 121000-4151, 210-0148, 210-0150, 9712109-408
Excel 10003
Hollander 682A
Lester 13302
Lester Old 13567
JANNCO 400-52006R

• Terminal Block with built in capacitor 0.50uF / Specifications: for Denso ER/EF, ER/IF Alternators on Chrysler, Terminal Thread: M4 X 0.7 // Replaces: Chrysler 5227349, 5233482, Denso 126220-0050, 126220-0051, 211-600, 15505, W115-24, ND-475, 99901000, 170-52000, TBND168 - 46-82200

• SRE Rotor Bearing 53514 15x35x13mm Ref# 279, Replacing 949100-2790, 949100-3980, 949100-4440 - 10-2021-4W

• Drive End Bearing 55222 17x52x16mm Ref# 333-2RS, Replacing 949100-3330, 949100-4370, 949100-5010 -10-3042-4W

• Brush Holder Assembly (Ref 021620-2430) Includes 2 Brushes (Ref 021660-0390, 021660-0460, 021660-0510) - 150-52002, 39-8202

• Slip Ring 8.9 ID 14.6 OD 23.9 Length 7190904A, 313-52001 - 28-82853

• Attaching Screw x3, Rectifier Brush Holder Screw M4 x 0.7 x 5.7mm L for Denso 949006-5460, 949007-3370, 949007-3930, 949007-6280 - 96909016, 85-1205 x3

• Rotor Bearing Cover 15mm ID x 20mm OD x 2.2mm T -W115-208, ND-486  - 46-82700
