Alternator Rebuild Kit 1995-1997 Lexus LS400 27060-50190 101211-9150 - 13669RK-A

Lexus LS400 V8 4.0L 1995-1997

Alternator Manufacturer and Factory #s
Bosch Remanufactured AL3288X
Delphi RM4083
Denso 101211-9150, 9651219-915
Excel 10488
Hollander 58593
Lexus 27060-50190, 27060-50190-84
Other 13669

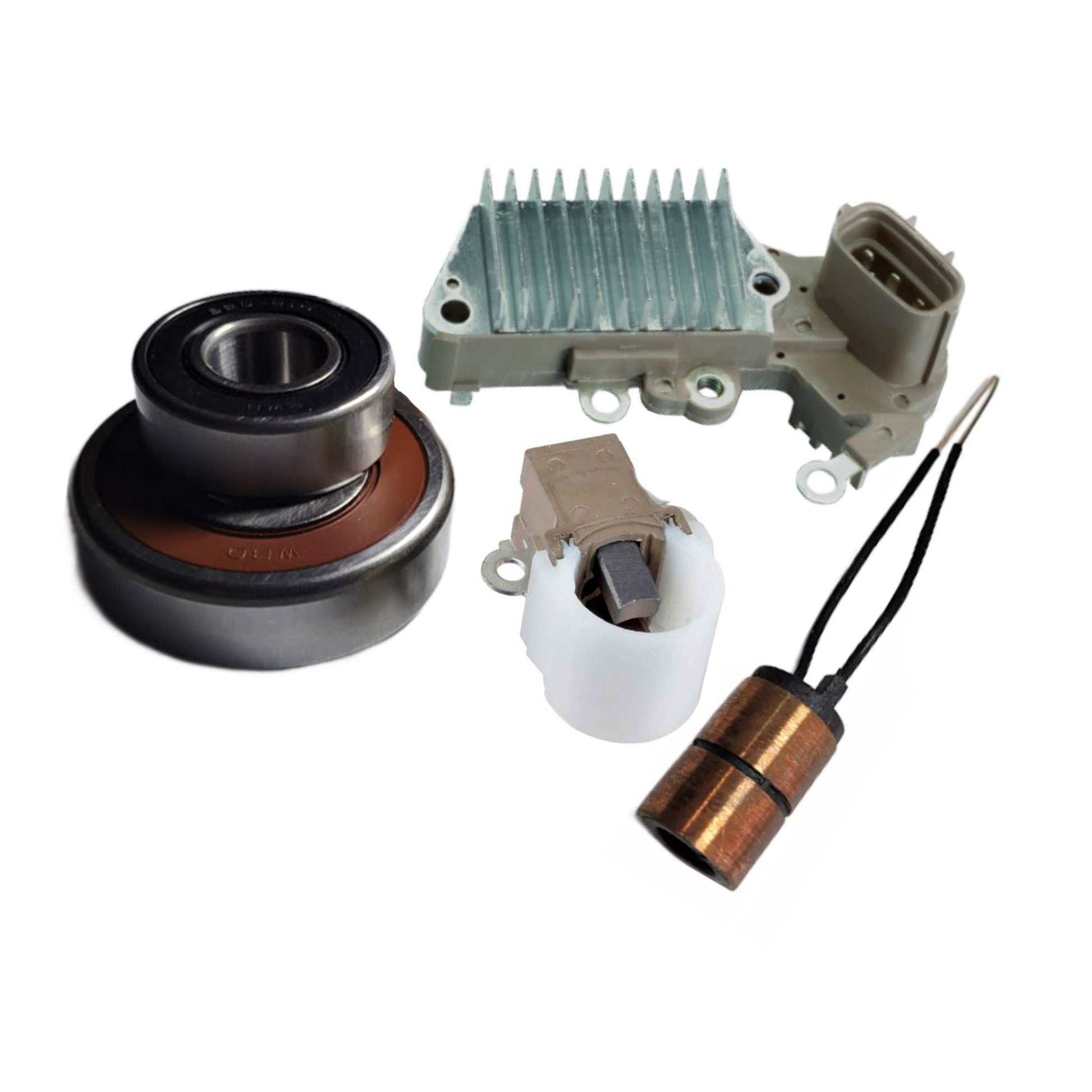

• Voltage Regulator, Replaces: Denso 126000-1960, 126000-2050, 126000-2200, Toyota 27700-50020, 27700-50030, 27700-62020, Other: 216-058, ND-393, T72017, W085-188, 230-52091, VRH2005-46A, MFVR02150, 8090-4428, IN453 Specifications: 12 Volt, A-Circuit, S-IG-L Terminals, 14.4 Voltage Set Point, w/o LRC, 63.5mm Mounting Length, Standard lamp function - no output.

• DE Bearing 55222 17x52x16mm Ref# 949100-3330, 949100-4370, 949100-5010 - 10-3042-4W

• SRE Bearing 53514 15x35x13mm Ref# 949100-2790, 949100-3980 - 10-2021-4W

• Brush Holder Assembly with Brushes Ref# 021620-2720 - 39-8203

• Slip Ring 8.9 ID 14.6 OD 23.9 Length 7190904A, 28-82853
