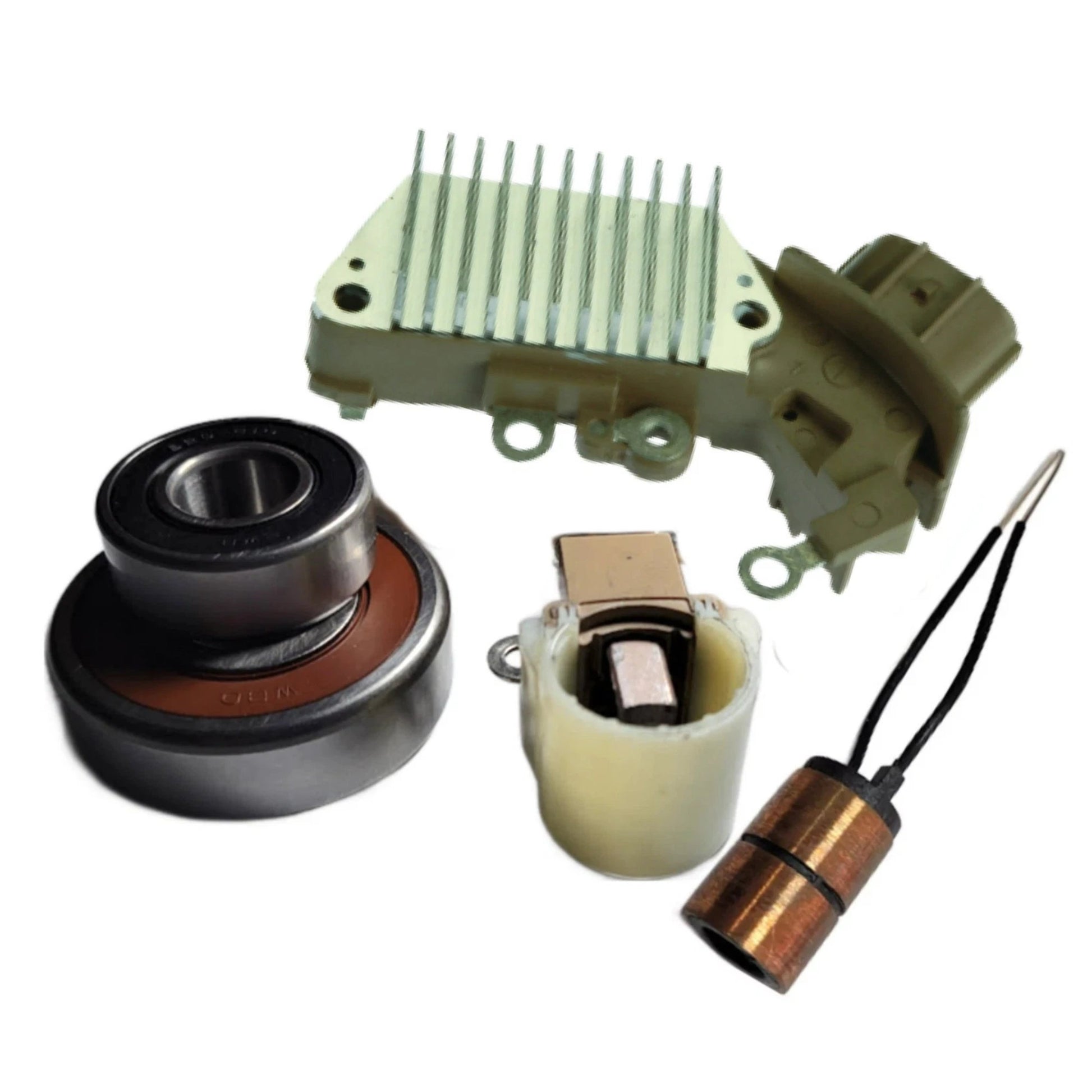

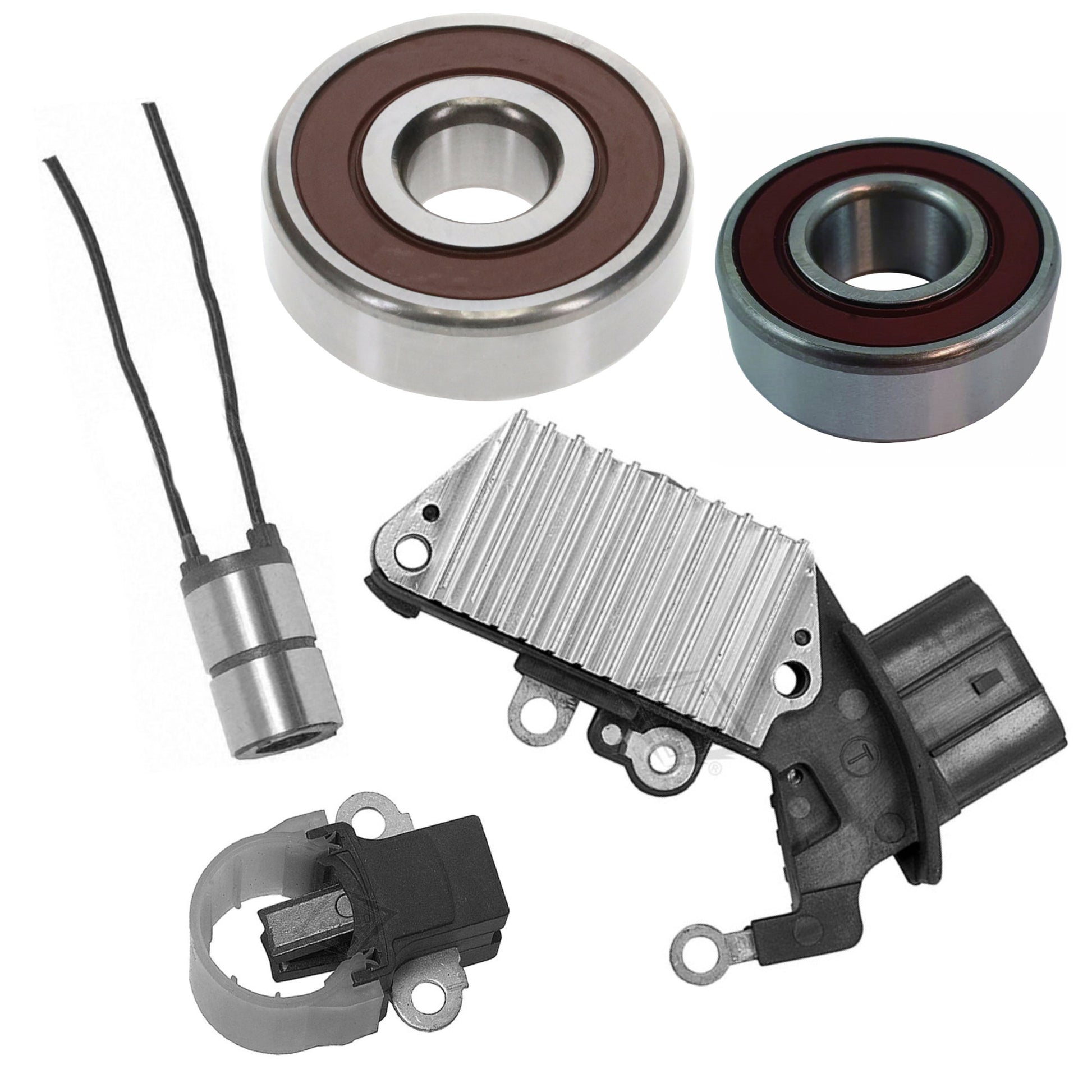

Alternator Rebuild Kit 1996-1998 Supra wo/Turbo, 1993-97 GS300, 1995-2000 SC300 - 13748RK-A

Need to rebuild your vehicle's alternator? This premium rebuild component kit is engineered to meet or exceed original factory specs, ensuring a perfect fit and long-lasting charging performance.

🚘 Vehicle Application Details

• Lexus: GS300 L6 3.0L (1993-1997), SC300 L6 3.0L (1995-2000)
• Toyota: Supra L6 3.0L 2997cc Non-Turbo (1996-1998)

🔍 Cross-Reference Alternator Assemblies (Fits These Units)

• Bosch Remanufactured: AL3267X, AL3289X (Old AL3286X)
• Denso: 101211-5450, 101211-9410, 9661219-941, 101211-9160, 9661219-916, 101211-9710, 101211-9711, 210-0290, 210-0169, 101211-9350
• Excel: 10251, 10405
• Hollander: 58655, 58704, 58713
• Lester: 13552, 13748 (Old 13667)
• Lexus / Toyota OE: 27060-46060, 27060-46060-84, 27060-46140, 27060-46140-84, 27060-46250, 27060-46250-84, 27060-46180, 27060-46180-84, 27060-46050, 27060-46050-84
• Remy Light Duty: 13437, 14373
• Wilson: 90-29-5364, 90-29-5211

📐 Component-Specific Technical Data

⚡ Voltage Regulator Specs

• Technical Specifications: 12 Volt, A-Circuit, S-IG-L Terminals, 14.6 Voltage Set Point, w/ LRC, Denso Alternators, 63.5mm Mounting Length
• Replaces OEM: Denso 126000-1810, 126000-1850, 126000-1870, 126000-2000, 126000-2260, M3S 126000-1810, M3S 126000-2260; Toyota 27700-20050, 27700-46060, 27700-62010, 27700-64130
• Aftermarket Crossovers: GNR-N003, VRH2005-63A, 216-044, W085-116, 80904418, 80904737, 80904738, 230-52075, 230-52196, T7441, IN441

⚡ Slip Ring Specs

• Dimensions: 8.9mm ID x 14.6mm OD x 23.9mm L
• Interchange Numbers: 7190904A, 28-82853

⚡ Drive End Bearing (Front) Specs

• Industry Number: 55222
• Dimensions: 17mm ID x 52mm OD x 16mm W
• Interchange Numbers: 10-3042-4W

⚡ Rotor SRE Bearing (Rear) Specs

• Industry Number: 53514
• Dimensions: 15mm ID x 35mm OD x 13mm W
• Interchange Numbers: 10-2021-4W

⚡ Brush Holder Assembly Specs

• Features: Includes Brushes
• Interchange Numbers: Replaces Denso 021620-2530, 021620-2720, 39-8203

❤️ Our Worry-Free Promise

Because automotive electrical parts are highly specific, we want you to buy with total confidence. If you tear down your alternator and realize you need a different size or configuration, don't sweat it. We offer easy, no-hassle returns and fast refunds. We are here to help your DIY build succeed!
