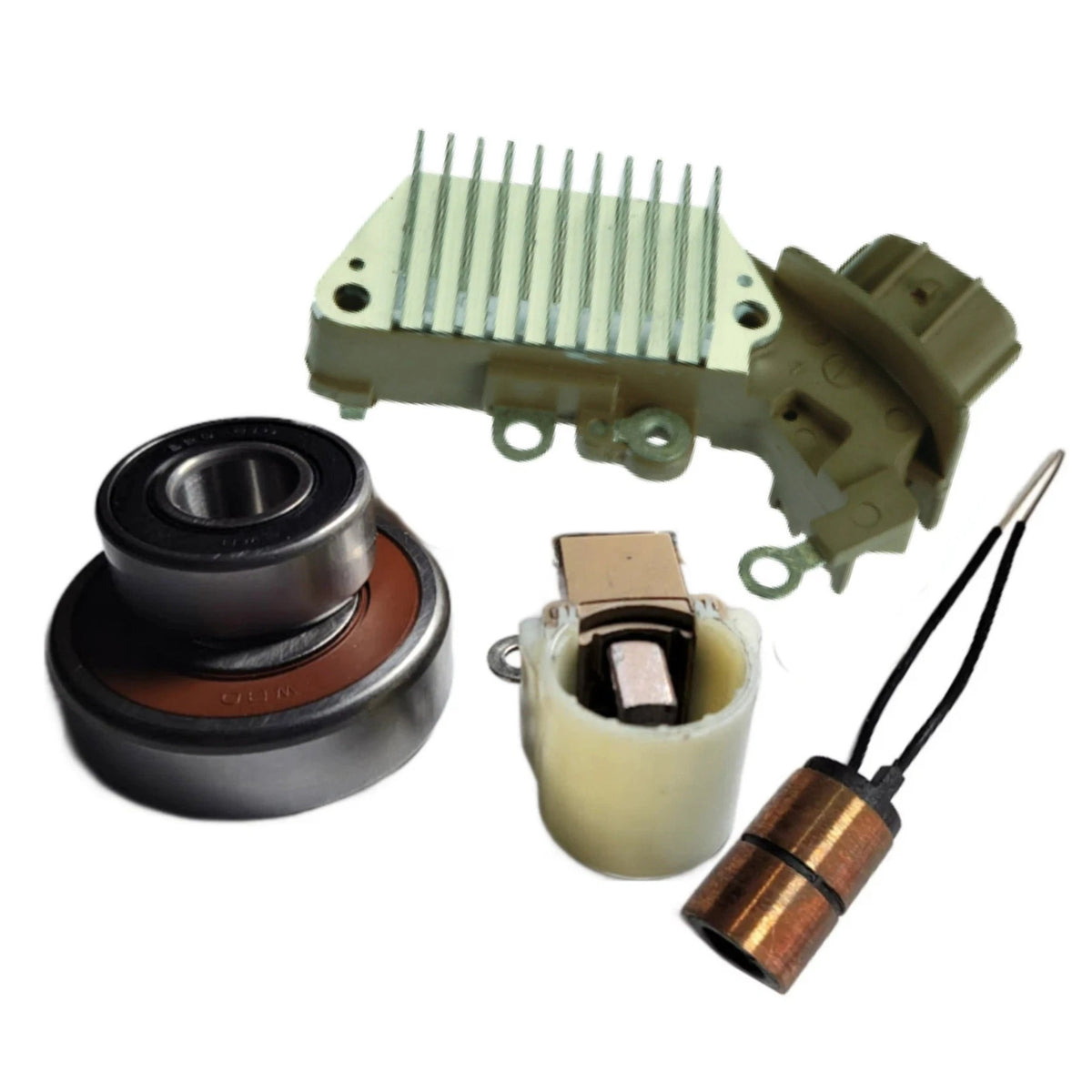

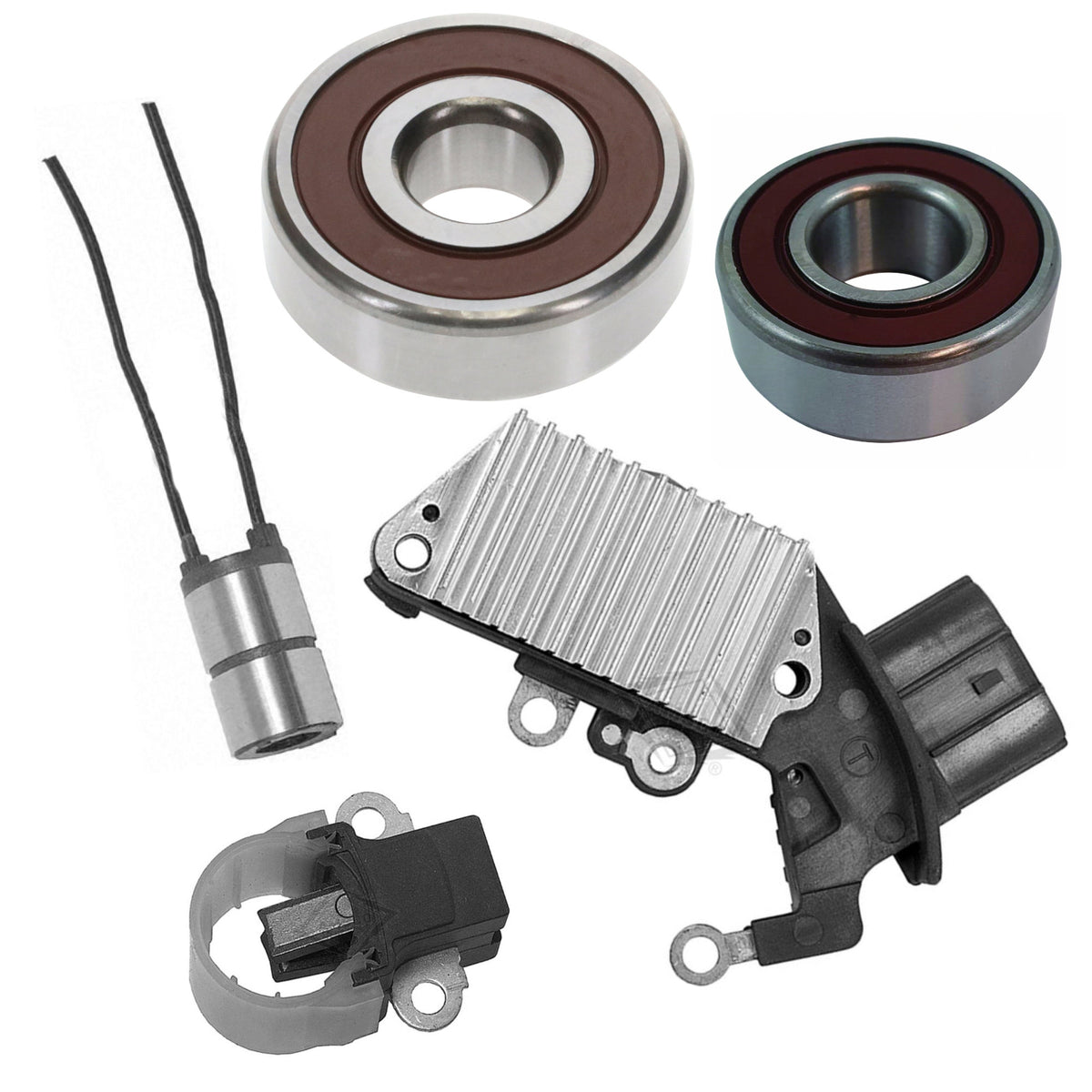

Alternator Rebuild Kit 1997-2001 Lexus ES300, 2000-2003 Solara, 2000-2001 Camry 3.0L - 13747RK-A

Need to rebuild your vehicle's alternator? This premium rebuild component kit is engineered to meet or exceed original factory specs, ensuring a perfect fit and long-lasting charging performance.

🚘 Vehicle Application Details

• Lexus: ES300 (1997-2001 V6 3.0L)
• Toyota: Camry (2000-2001 V6 3.0L), Solara (2000-2003 V6 3.0L)

🔍 Cross-Reference Alternator Assemblies (Fits These Units)

• Lexus / Toyota OE: 27060-20070, 27060-20070-84, 27060-20120, 27060-20120-84, 27060-0A090, 27060-0A090-84, 27060-20160
• Denso OE: 101211-9780, 102211-1620, 9662219-162, 101211-2690, 102211-2690, 102211-1870, 210-0166, 9661219-978 (80 Amp)
• Bosch Reman: AL3281X, AL3265X
• Lester / PIC References: Lester 13747 | PIC 290-5040, 290-5040C, 290-5040A, 290-5040E
• Other Crossovers: Beck Arnley 186-1000, Excel 10402, Hollander 58691, Wilson 90-29-5602

🔧 Component-Specific Technical Data

⚡ Voltage Regulator Specs

• Technical Specifications: 12 Volt, A-Circuit, S-IG-L Terminals, 14.6 Vset, w/ LRC, 63.5mm Mounting Length
• Design: For Denso Alternators
• Replaces OEM: Denso 126000-1810, 126000-1850, 126000-1870, 126000-2000, 126000-2260, M3S 126000-1810, M3S 126000-2260 | Mazda 88925208, KJ01-18-W70, KL47-18-W51, KL4718W70 | Toyota 27700-20050, 27700-46060, 27700-62010, 27700-64130
• Aftermarket Crossovers: IN441, GNR-N003, VRH2005-63A, 216-044, W085-116, 80904418, 80904737, 80904738, 230-52075, 230-52196, T7441

⚡ Brush Holder Assembly Specs

• Features: Includes Brushes
• Replaces OEM: Denso 021620-2530, 021620-2720
• Interchange Numbers: 39-8203

⚡ Drive End Bearing (Front) Specs

• Industry Number: 55222
• Dimensions: 17mm ID x 52mm OD x 16mm W
• Interchange Numbers: 10-3042-4W

⚡ Rotor SRE Bearing (Rear) Specs

• Industry Number: 53514
• Dimensions: 15mm ID x 35mm OD x 13mm W
• Interchange Numbers: 10-2021-4W

⚡ Slip Ring Specs

• Dimensions: 8.9mm ID x 14.6mm OD x 23.9mm L
• Interchange Numbers: 7190904A, 28-82853
