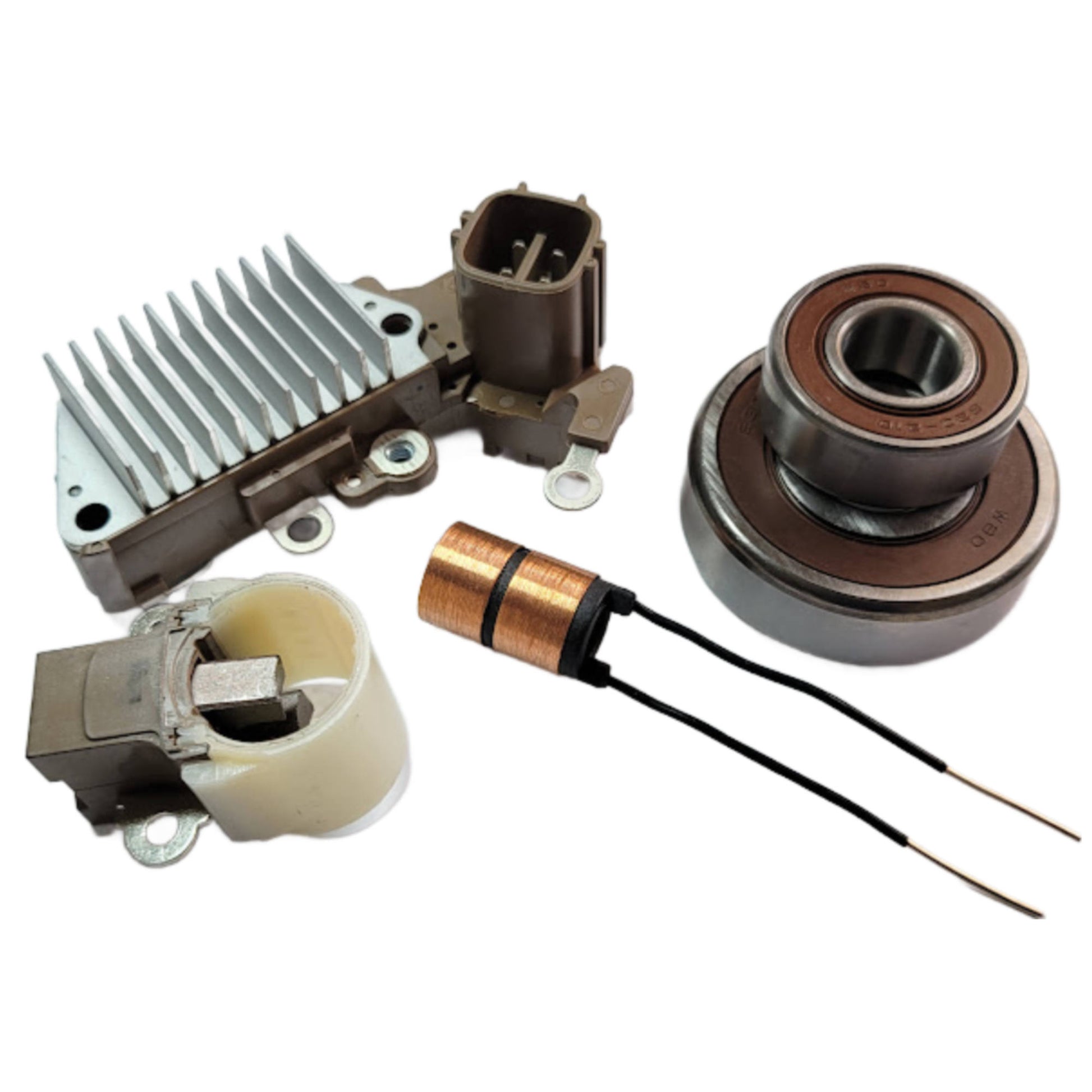

Alternator Rebuild Kit 1998-1999 Acura CL, 1998-2002 Accord 2.3L 102211-1010, 101211-9990 - 13767RK-A

Need to rebuild your vehicle's alternator? This premium rebuild component kit is engineered to meet or exceed original factory specs, ensuring a perfect fit and long-lasting charging performance.

🚗 Vehicle Application Details

• Fitment Details:
  • Acura CL L4 2.3L (1998-1999)
  • Honda Accord L4 2.3L (1998-2002)

🔍 Cross-Reference Alternator Assemblies (Fits These Units)

• Denso: 102211-101, 102211-1010, 101211-9990, 9761219-999, 210-0192, 210-0193
• Honda / Acura: 06311-PAA-506RM, 31100-PAA-L71RM, 31100-PAA-A010M, 31100-PAA-L71, 31100-PAA-L710, CJV01, 06311-PAA-505RM, 31100-PAA-A01, 31100-PAA-A01RM
• Bosch: AL1284X, 0-986-UR0-842
• ACDelco: 334-1318
• Arrowhead: AND0145
• Lester / PIC References: Lester 13767 | PIC 290-5018, 290-5019
• Other References: HC Cargo 113571, J&N 400-52038, Wilson 90-29-5335

📐 Component-Specific Technical Data

⚡ Voltage Regulator Specs

• Technical Specifications: 12 Volt, A-Circuit, C-FR-IG-L Terminals, 14.5 Voltage Set Point, 63.5mm Mounting Length
• Replaces OEM: Denso 126000-2090, 126000-2160, 126000-2170, 126000-2470, 126000-2610, 126000-3030 | Honda 31150-P2T-003, 31150-P2T-0030, 31150-PEA-A01, 31150-PRB-003, 31150-PV4-0030 | Marelli 940038097
• Interchange Numbers: IN445, 80904424, 80904445, 230-52089, VRH2005-40, GNR-N021, 216-053, T7445, W085-174, ND-521HD

⚡ Brush Holder Assembly Specs

• Design: Includes brushes
• Interchange Numbers: 021620-2530, 021620-2720, 39-8203

⚡ Slip Ring Specs

• Dimensions: 8.9mm ID x 14.6mm OD x 23.9mm Length
• Interchange Numbers: 7190904A, 28-82853

⚡ Drive End Bearing (Front) Specs

• Industry Number: 55222 / 333-2RS
• Dimensions: 17mm ID x 52mm OD x 16mm W
• Interchange Numbers: 10-3042-4W

⚡ Rotor SRE Bearing (Rear) Specs

• Industry Number: 53514 / 6202-D2RS
• Dimensions: 15mm ID x 35mm OD x 13mm W
• Interchange Numbers: 10-2021-4W

❤️ Our Worry-Free Promise

Because automotive electrical parts are highly specific, we want you to buy with total confidence. If you tear down your alternator and realize you need a different size or configuration, don't sweat it. We offer easy, no-hassle returns and fast refunds. We are here to help your DIY build succeed!
