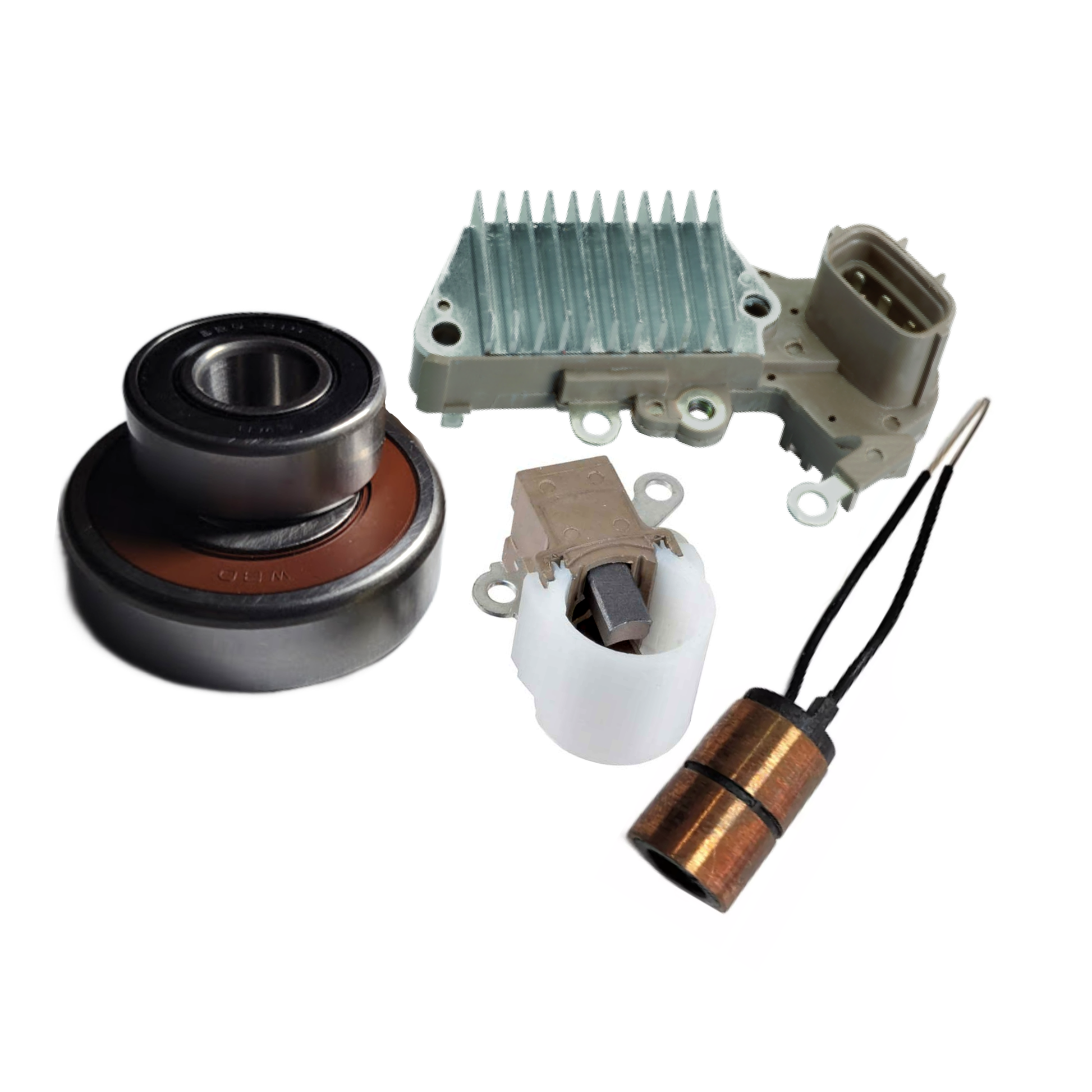

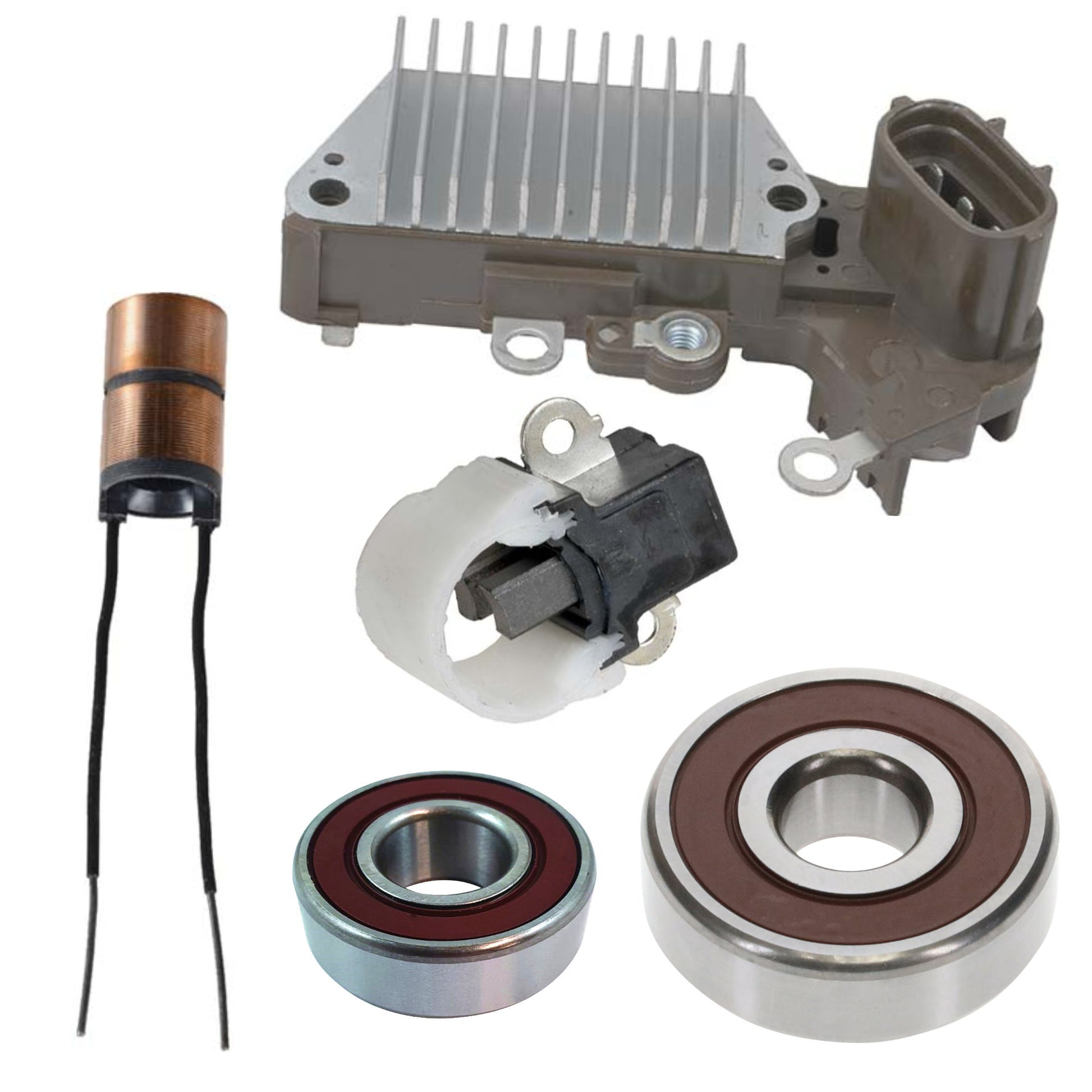

Alternator Rebuild Kit 1998-2002 Land Cruiser LX470 Regulator Bearings Brushes - 13856RK-A

Need to rebuild your vehicle's alternator? This premium rebuild component kit is engineered to meet or exceed original factory specs, ensuring a perfect fit and long-lasting charging performance.

🚘 Vehicle Application Details

• Lexus: LX470 (1998-2002 V8 4.7L)
• Toyota: Land Cruiser (1999-2002 V8 4.7L)

🔍 Cross-Reference Alternator Assemblies (Fits These Units)

• Lexus / Toyota OE: 27060-50260, 27060-50260-84
• Denso OE: 101211-7860, 101211-7861, 9661219-786
• Bosch Reman: AL3293X
• Other Crossovers: Delphi RM4166, Excel 10519, Hollander 58758, Lester 13856

📐 Component-Specific Technical Data

⚡ Voltage Regulator Specs

• Technical Specifications: 12 Volt, A-Circuit, S-IG-L Terminals, 14.4 Vset, w/o LRC, 63.5mm Mounting Length, Standard Lamp Function (No Output)
• Replaces OEM: Denso 126000-1960, 126000-2050, 126000-2200 | Toyota 27700-50020, 27700-50030, 27700-62020
• Aftermarket Crossovers: IN453, 216-058, ND-393, T72017, W085-188, 230-52091, VRH2005-46A, MFVR02150, 8090-4428

⚡ Brush Holder Assembly Specs

• Features: Includes Brushes
• Replaces OEM: Denso 021620-2720
• Interchange Numbers: 39-8203

⚡ Drive End Bearing (Front) Specs

• Industry Number: 55222
• Dimensions: 17mm ID x 52mm OD x 16mm W
• Interchange Numbers: Denso 949100-3330, 949100-4370, 949100-5010 | 10-3042-4W

⚡ Rotor SRE Bearing (Rear) Specs

• Industry Number: 53514
• Dimensions: 15mm ID x 35mm OD x 13mm W
• Interchange Numbers: Denso 949100-2790, 949100-3980 | 10-2021-4W

⚡ Slip Ring Specs

• Dimensions: 8.9mm ID x 14.6mm OD x 23.9mm L
• Interchange Numbers: 7190904A, 28-82853

💕 Our Worry-Free Promise

Because automotive electrical parts are highly specific, we want you to buy with total confidence. If you tear down your alternator and realize you need a different size or configuration, don't sweat it. We offer easy, no-hassle returns and fast refunds. We are here to help your DIY build succeed!
