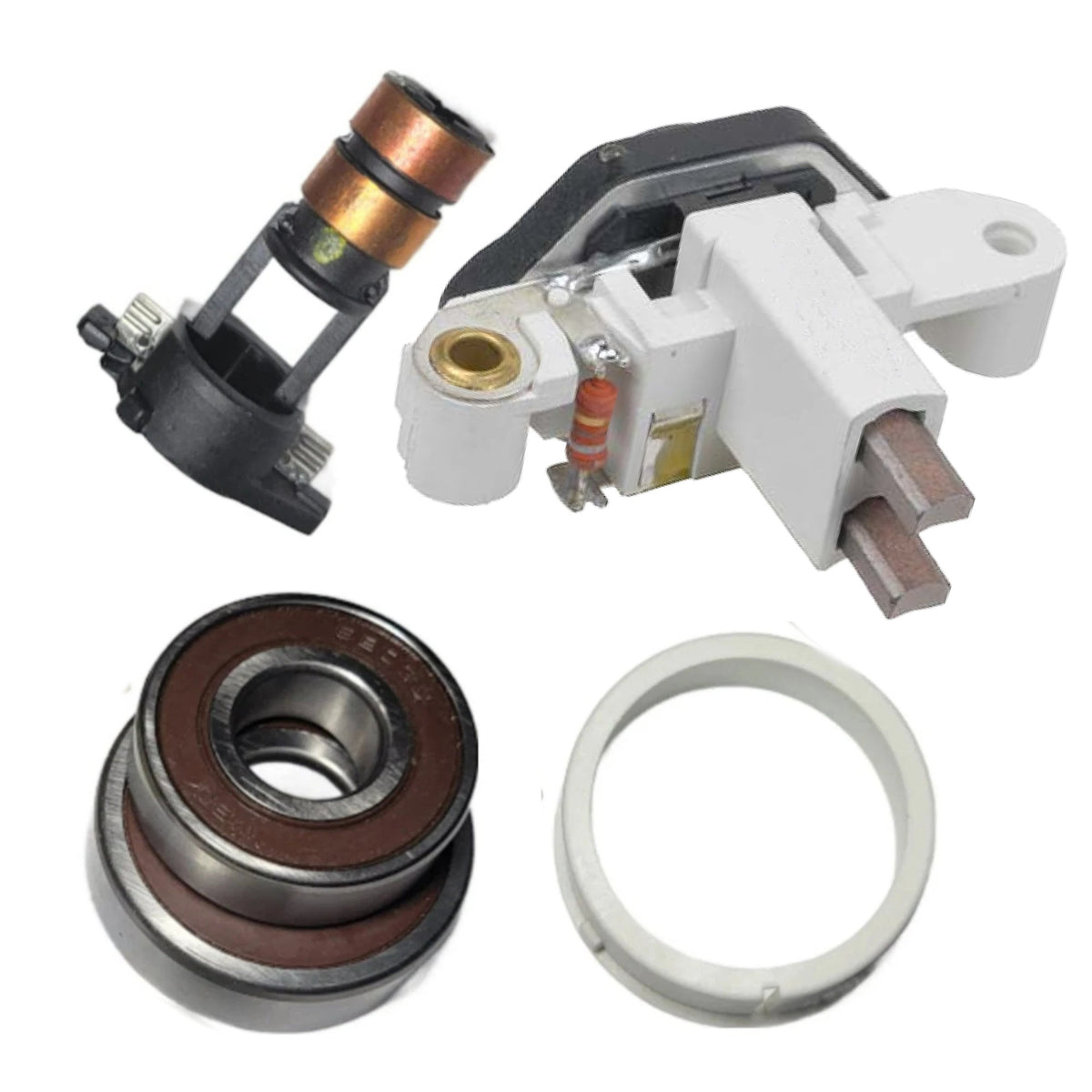

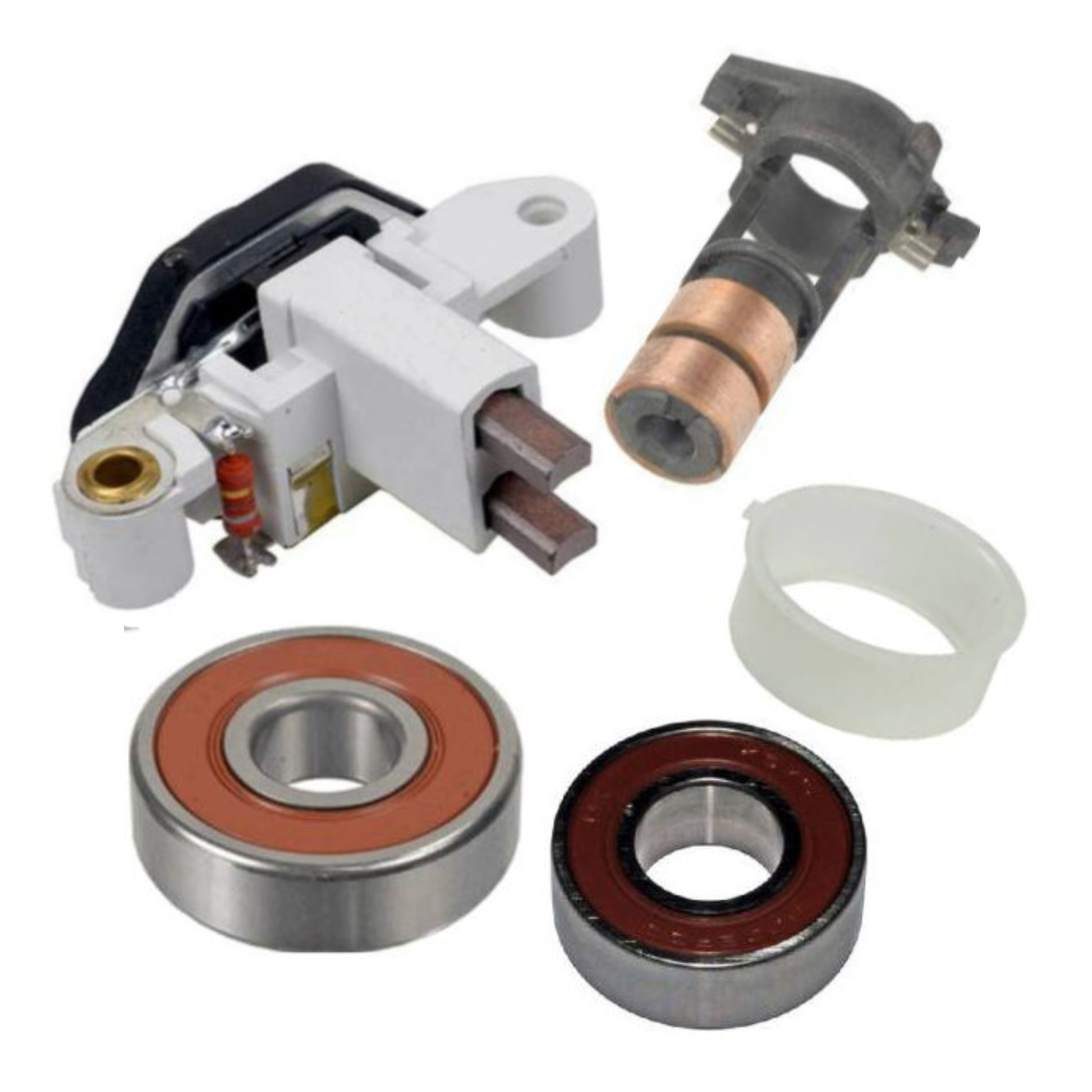

Alternator Rebuild kit 1998-2004 Mercedes SLK230 w/Bosch 0123320035 0123320058 - 13798RK-A

Need to rebuild your vehicle's alternator? This premium rebuild component kit is engineered to meet or exceed original factory specs, ensuring a perfect fit and long-lasting charging performance.

🚘 Vehicle Application Details

• Mercedes-Benz Car: SLK230 (1998-2004 L4 2.3L)

🔍 Cross-Reference Alternator Assemblies (Fits These Units)

• Mercedes-Benz OE: 009-154-76-02, A0091547602, 0091547602, 010-154-98-02, A0101549802
• Bosch OE & Reman: 0 123 320 035, 0 123 320 058, 0123320035, 0123320058, AL0761X (12 Volt, 90 Amp, S6 Pulley)
• Lester / PIC References: Lester 13798 | PIC 220-5055, 220-5055A
• Other Crossovers: Beck Arnley 186-0867, Delphi RM3298, ERA 209063, Excel 10527, Hollander 58726, J&N 400-24188, Remy Light Duty 13463, Wilson 90-15-6317

📐 Component-Specific Technical Data

⚡ Voltage Regulator with Brushes Specs

• Technical Specifications: 12 Volt, A-Circuit, 14.5 Voltage Set Point, 180 Ohm Resistor
• Replaces OEM: Bosch 1197311211, 1197311213, 1197311217, 1197311219, 1197311242, 1197311533, 1197311541, 1197311556
• Aftermarket Crossovers: IB387, 09107, 176-0111, W080-09, BO-324, 230-24032, VRB201H, VRB261, ABO6031

⚡ Drive End Bearing (Front) Specs

• Industry Number: 55224
• Dimensions: 17mm ID x 52mm OD x 17mm W
• Interchange Numbers: Bosch F00M990434 | 10-3043-4W

⚡ Rotor SRE Bearing (Rear) Specs

• Industry Number: 54000 / 6203-2RS
• Dimensions: 17mm ID x 40mm OD x 12mm W
• Interchange Numbers: Bosch 1120905525 | 6-203-4N, 6-203-4W

⚡ Bearing Tolerance Ring Specs

• Dimensions: 40mm ID x 43mm OD x 16.5mm Overall Length
• Replaces OEM: Bosch 1120591076, 1120591103
• Interchange Numbers: 46-91552, W110-39

⚡ Slip Ring Specs

• Dimensions: 7.1mm ID x 16.1mm OD x 52mm L
• Replaces OEM: Bosch 1124303007, F00M143019
• Interchange Numbers: 28-91852, 7120202, 313-24002

💕 Our Worry-Free Promise

Because automotive electrical parts are highly specific, we want you to buy with total confidence. If you tear down your alternator and realize you need a different size or configuration, don't sweat it. We offer easy, no-hassle returns and fast refunds. We are here to help your DIY build succeed!
