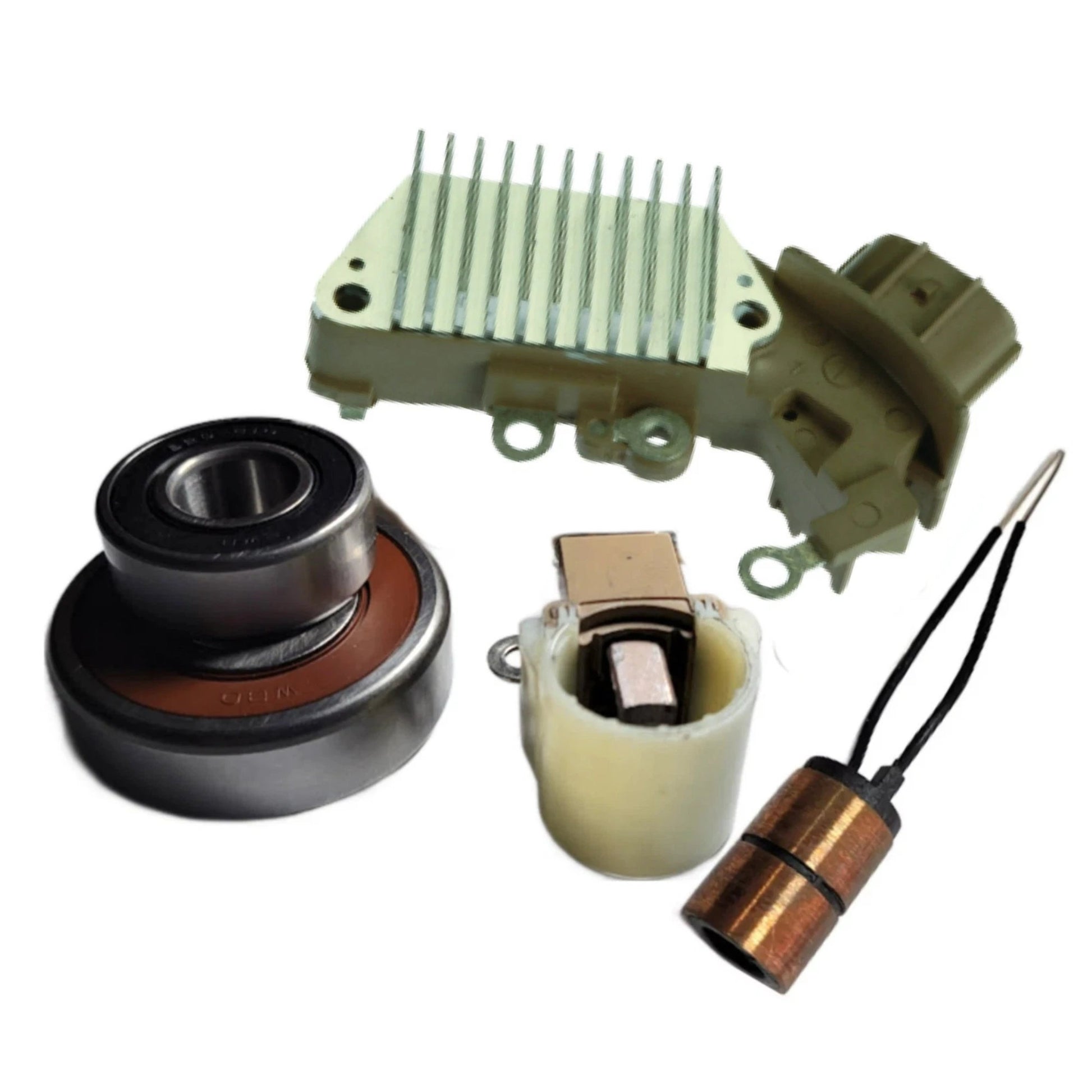

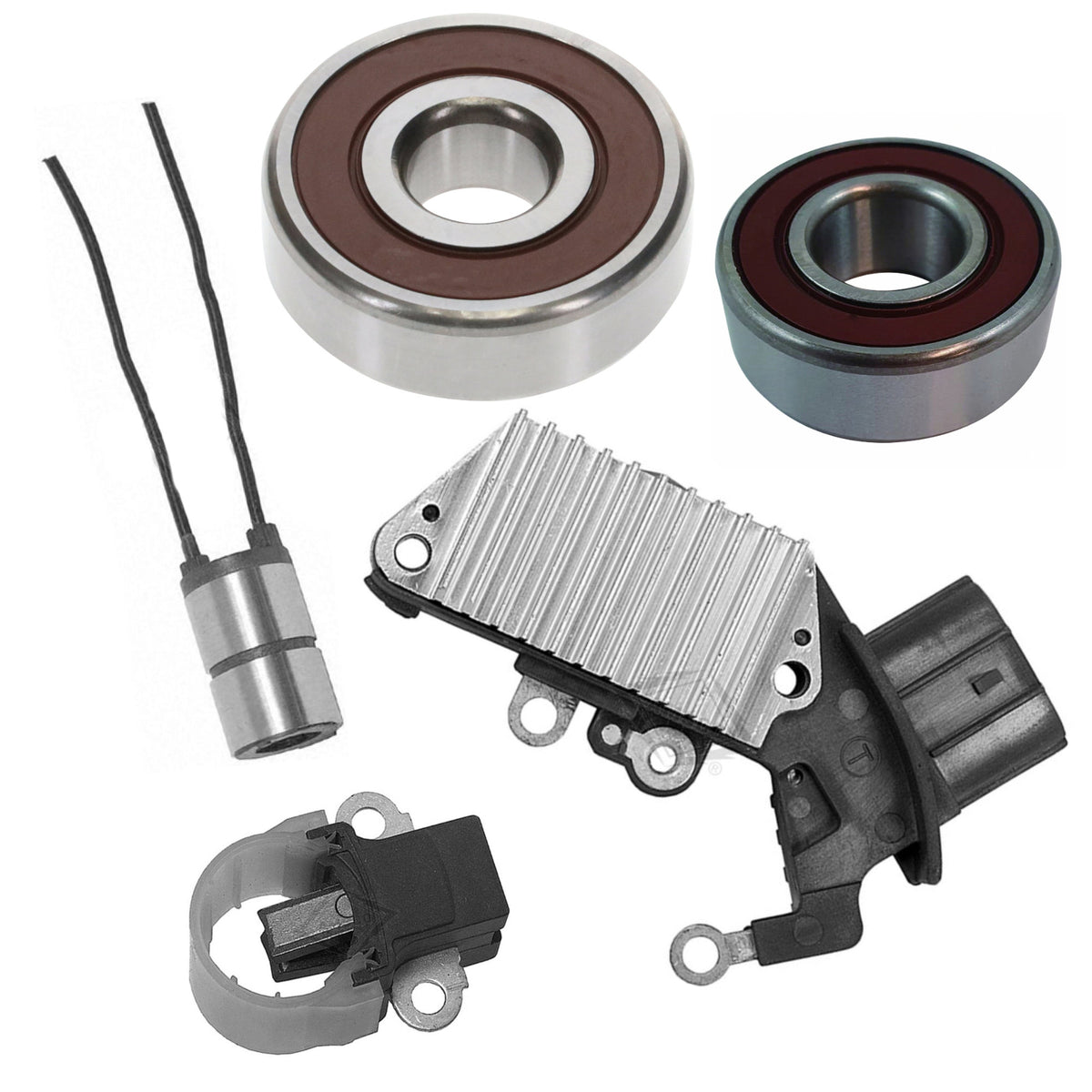

Alternator Rebuild Kit 1999-03 RX300 Highlander- Regulator, Brushes, Bearings, Sliprings - 13844RK-A

Lexus RX300 V6 3.0L 2995cc 1999-2003
Toyota Highlander V6 3.0L 2995cc 2001-2003

Alternator Manufacturer and Factory #s
Bosch Remanufactured AL3309X
Denso 101211-7840, 9661219-784, 102211-0590, 102211-0840
Excel 10520
Lester 13844
Lexus 27060-20110, 27060-20110-84, 27060-20140, 27060-20140-84
Hollander 60791

• Voltage Regulator 12 Volt, A-Circuit, S-IG-L Terminals, 14.6 Voltage Set Point, w/ LRC, Denso  Alternators, 63.5mm Mtg. Length / Replaces Denso 126000-1810, 126000-1850, 126000-1870, 126000-2000, 126000-2260, M3S 126000-1810, M3S 126000-2260, Mazda 88925208, KJ01-18-W70, KL47-18-W51, KL4718W70, Toyota 27700-20050, 27700-46060, 27700-62010, 27700-64130 // GNR-N003, VRH2005-63A, 216-044, W085-116, 80904418, 80904737, 80904738, 230-52075, 230-52196, T7441 - IN441

• Drive End DE 55222 Bearing 17x52x16mm - 10-3042-4W

• SRE Rotor 53514 Bearing 15x35x13mm - 10-2021-4W

• Brush Holder Assembly Brushes Replacing 021620-2530, 021620-2720 - 39-8203

• Slip Ring 8.9 ID 14.6 OD 23.9 Length 7190904A - 28-82853
