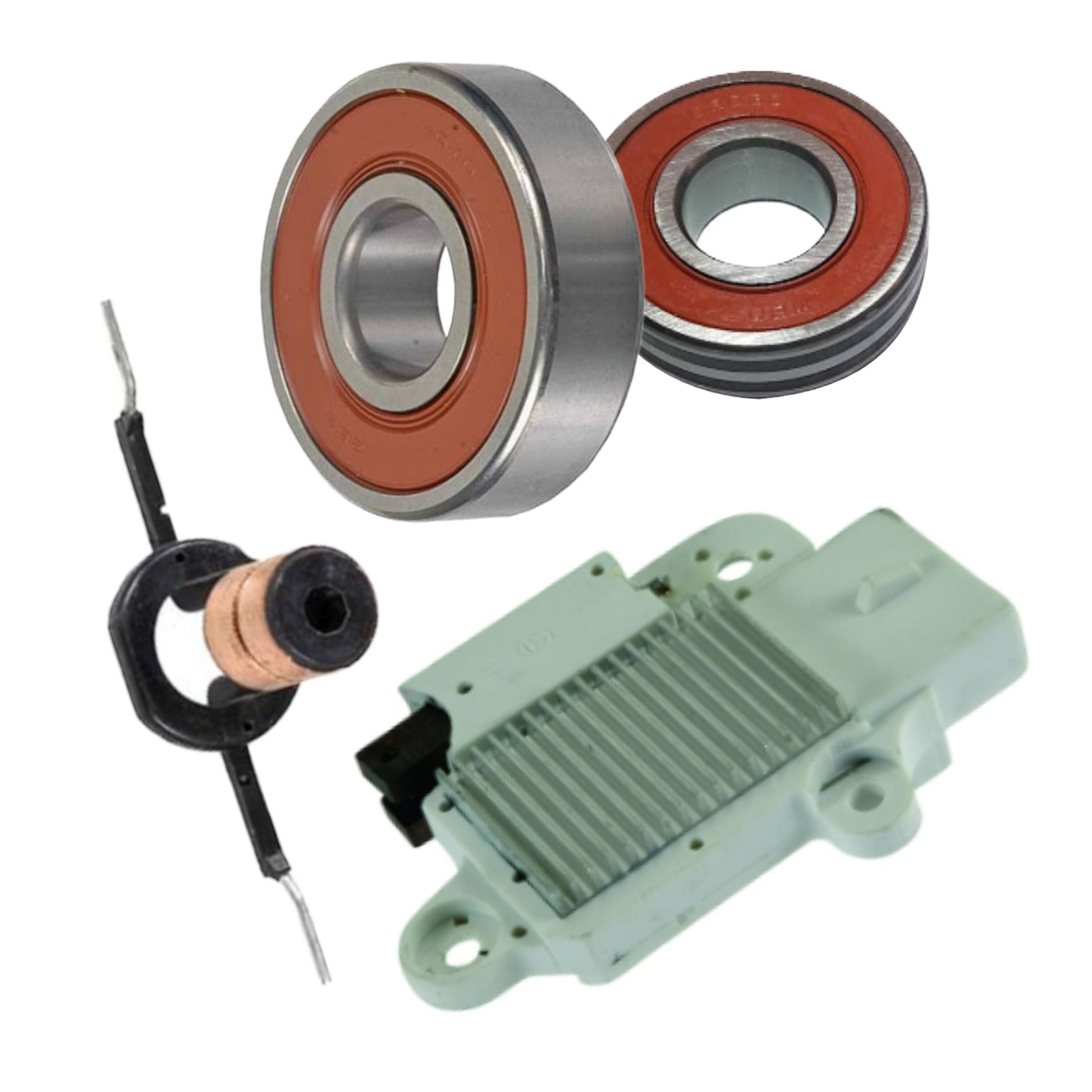

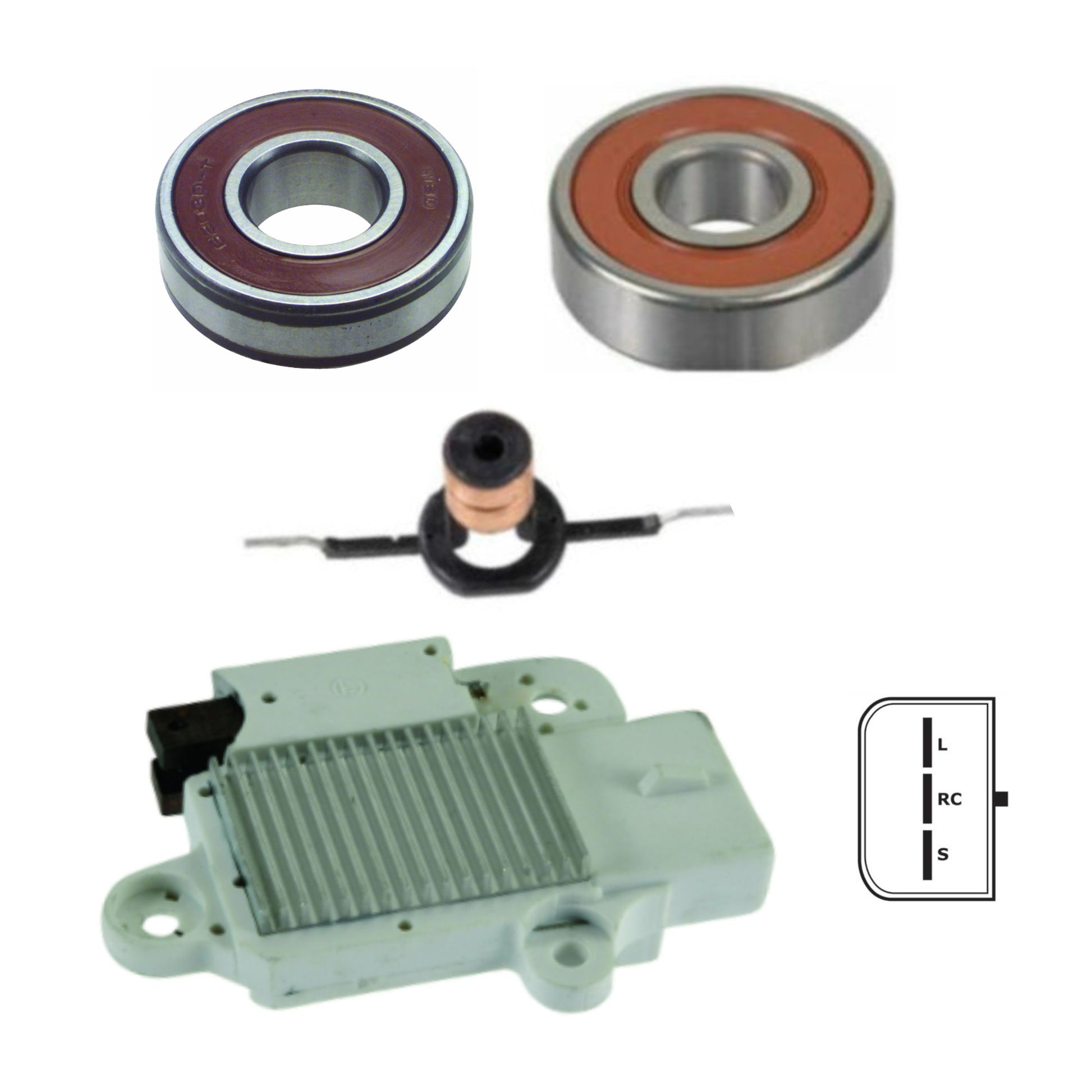

Alternator Rebuild Kit 2.3L Escape Tribute Mariner; Regulator, Brushes, Bearings and Sliprings - 8405RK-A

Need to rebuild your vehicle's alternator? This premium replacement rebuild kit is engineered to meet or exceed original factory specs, ensuring a perfect fit and long-lasting charging performance.

🚘 Vehicle Application Details

• Ford:
  • Escape L4 2.3L (2005-2007) A/T 130 Amp 4G
• Mazda:
  • Tribute L4 2.3L (2005-2006) A/T 130 Amp 4G
• Mercury:
  • Mariner L4 2.3L (2005-2007) A/T 130 Amp 4G

🔍 Cross-Reference Alternator Assemblies (Fits These Units)

• Ford OE: 5L8T-10300-LA, 5L8T-10300-LC, 5L8Z-10346-LA, 6L8T-10300-BB, 6L8Z-10346-AARM, 6L8Z-10346-BB, 6L8Z-10346-BBRM1, 6L8Z-10346-BCRM, 6L8Z-10346-LA, 6L8Z-10V346-BCRM, 5L8T-LA, 5L8T-LC, 6L8T-BB
• Mazda OE: L3H6-18-300A, ZZC1-18-300A, ZZC1-18-300D
• Motorcraft OE: GL-584, GL-681, GL-681-RM, GL-8809-RM, GLV-8734-RM, NGL8405N
• Bosch Reman: AL7624X
• Visteon OE: JH, JT
• Lester / PIC References: Lester 8405 | PIC 250-421
• Other Crossovers: Excel 8496, Hollander 1025

📐 Component-Specific Technical Data

⚡ Voltage Regulator with Brushes Specs

• Technical Specifications: Load (LI) - ECM Signal (RC) - Battery Sense (AS) Terminals, PCM controlled regulation voltage
• Replaces OEM: Ford F7RU-10C359-AA, YF1U-10C359-AA, F7RU10C359AA, VP3F1U10C359AA, VP6L8U10C359, VP6L8U10C359AA, YF1U10C359AA
• Aftermarket Crossovers: F797HD, 230-14046, 230-14063, GR820, GR822, T816, F08-23, F797

⚡ Rectifier Bridge Specs

• Technical Specifications: 8 Heavy Duty 50A press-fit avalanche diodes, OE validated, 133mm Diameter, 6mm B+ Post Terminal
• Interchange Numbers: FR3003

⚡ Drive End Bearing (Front) Specs

• Industry Number: 54700 / 6303-2RS
• Dimensions: 17mm ID x 47mm OD x 14mm W
• Replaces OEM: Ford F0JY10A303A
• Interchange Numbers: 6-303-4W

⚡ Rotor SRE Bearing (Rear) Specs

• Industry Number: 54002 / 6203-2HRLD
• Dimensions: 17mm ID x 40mm OD x 12mm W
• Replaces OEM: Ford F5OU-10A304-AA, F8DU-10A304-AA | Visteon ALT-C-128
• Interchange Numbers: 6-203-84W

⚡ Slip Ring Specs

• Dimensions: 6.0mm ID x 16.0mm OD x 34mm LL
• Replaces OEM: Ford F5OU-10328-BA | Visteon ALT-C-118
• Interchange Numbers: 28-2857
