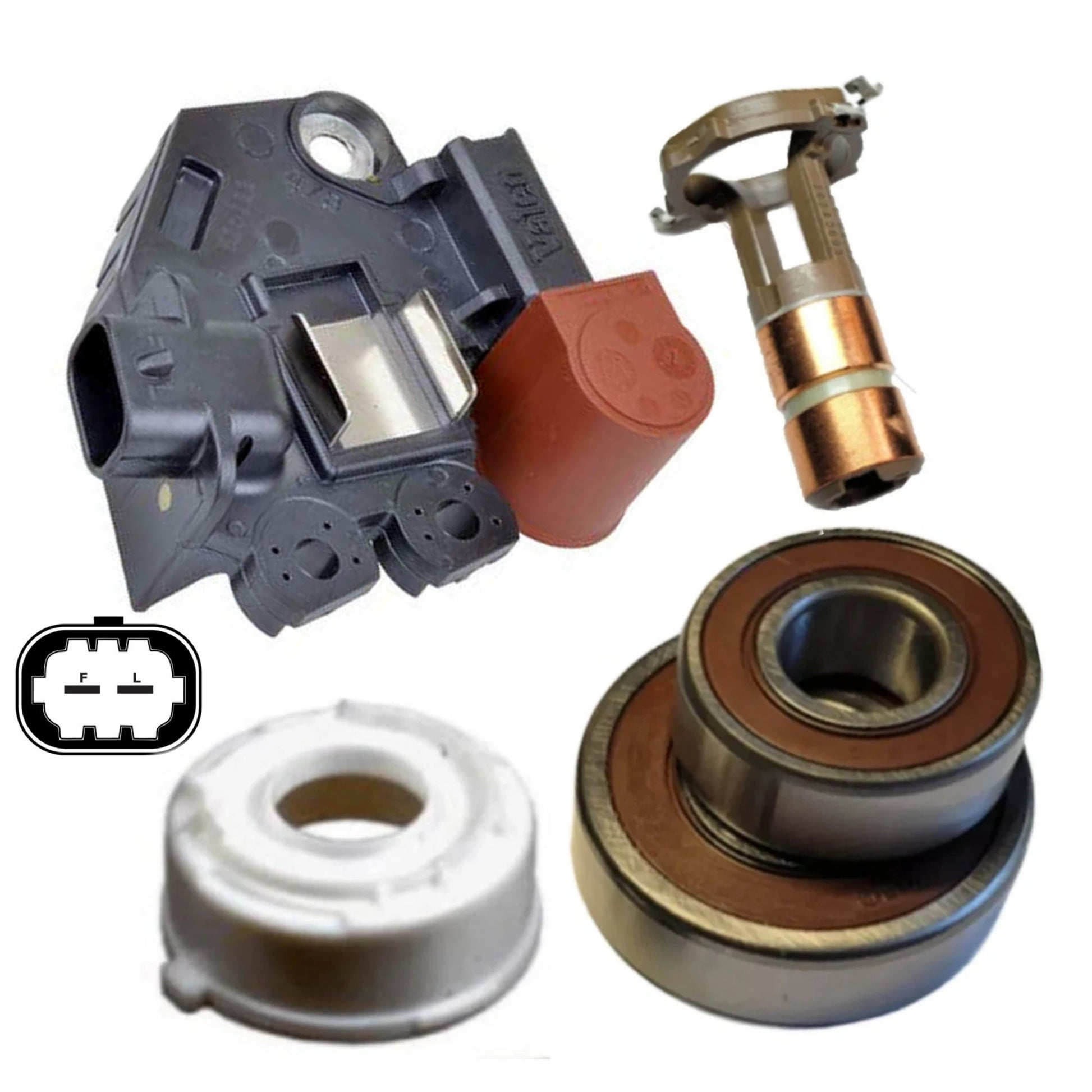

Alternator Rebuild Kit 2.4L Equinox Terrain Regal - 11459RK-A

Buick Regal L4 2.4L 2384cc 145cid VIN K 2012
Buick Regal L4 2.4L 2384cc 145cid VIN K 2015-2017
Chevrolet Equinox L4 2.4L 2384cc 145cid 2010-2017
GMC Terrain L4 2.4L 2384cc 145cid 2010-2017

• OEM Valeo Brand Voltage Regulator with Brushes - Replaces: 1127-114RS, WG1776063, Valeo 2616783, 599386, 702152, 702153 // M608 266-036, W082-69N T8608 -- Specifications: 12 Volt, B-Circuit, High Side Drive Regulator, F-L Terminals, 13.8 Voltage Set Point, for Valeo Alternators, Manufacturer VALEO, 14mm ID Brush Ring, Voltage Set Point controlled by Vehicle RVC system, Field Rating 5 Amps, Field Short Circuit Protection, Stator or RVC Activated - W082-69N - 2616783

• Drive End Bearing 54700 17x47x14mm 592858, 593563 6303-2RS - 6-303-4W

• SRE Rotor Bearing 53500 15x35x11mm 593564, 593684 6202-2RS - 6-202-4W

• Tolerance Ring / Bearing Cap 35mm ID x 37mm OD x 19mm OA Height Replacing 2545308, 591002, 46-94435

• Slip Ring, 48.3mm L / 9mm ID / 14.9mm OD Replaces Valeo 2606286, 28-94867

Alternator Manufacturer and Factory #s
Bosch Remanufactured AL8880X
GM 13500315, 13588328, 13512759
Lester 11459
PIC 208-213, 208-213A, 208-213B
NGK AL0084
Valeo TG12C067, 849114, 2605323A, TG12C174, 849114, 2620360B, TG12C288, 849114, 2714529
