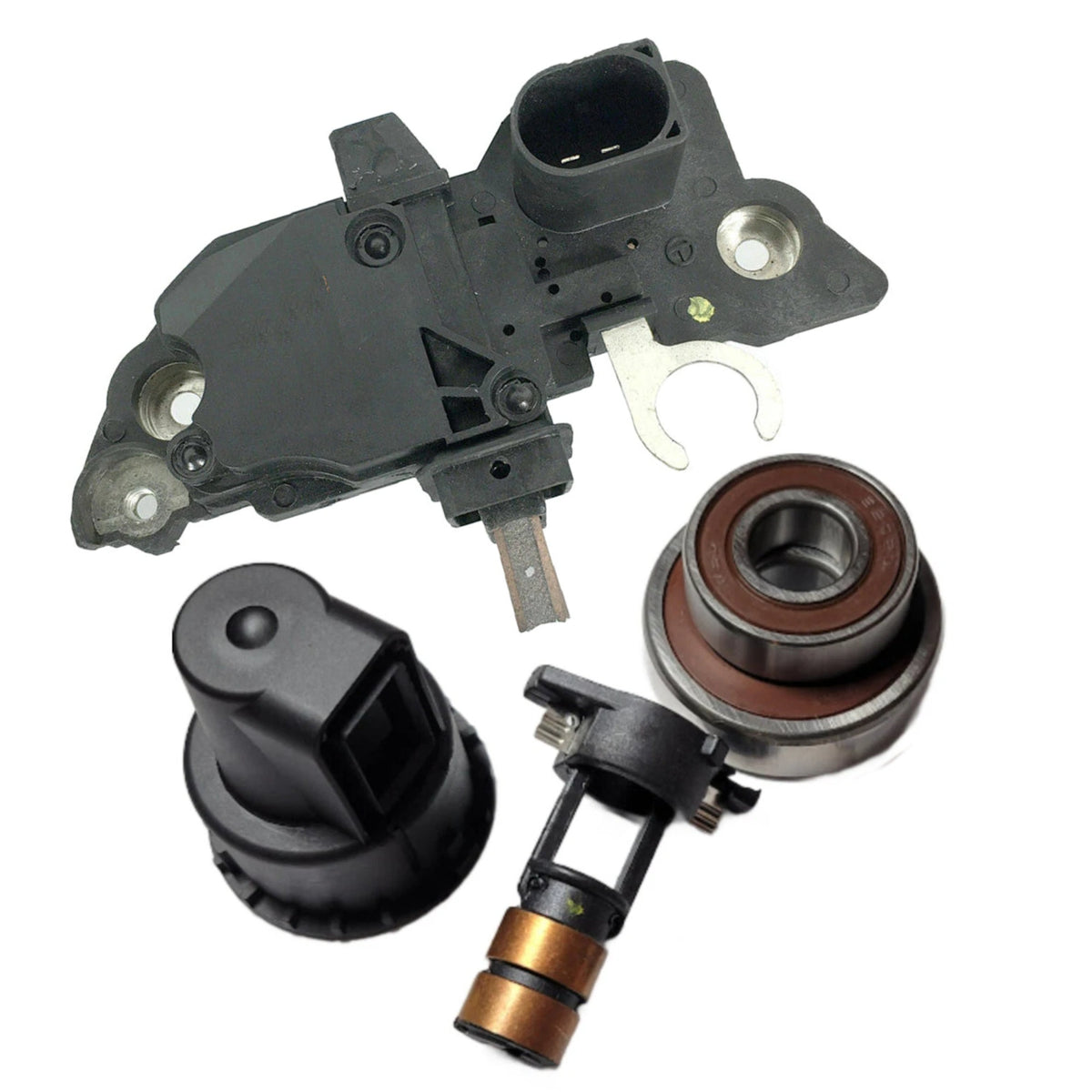

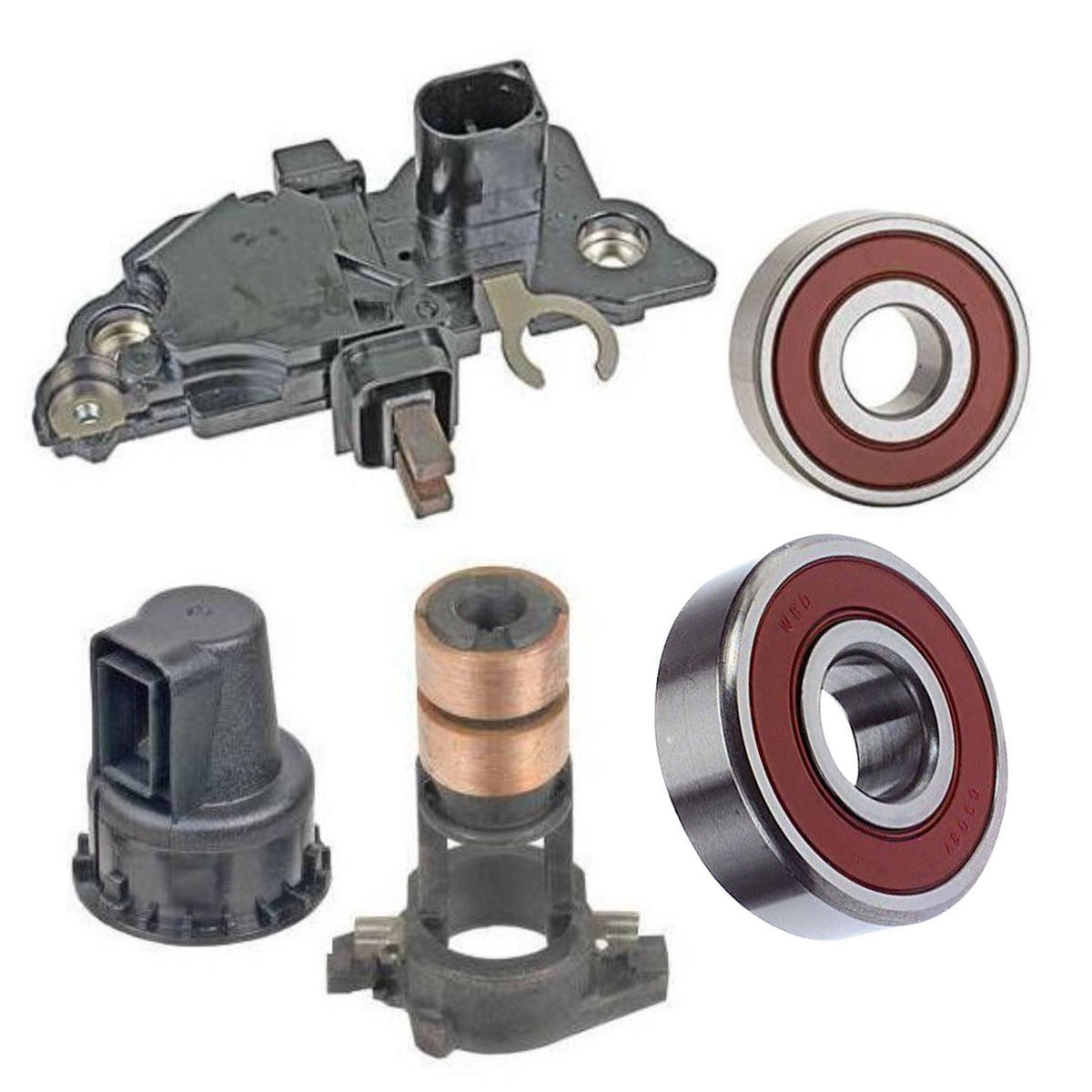

Alternator Rebuild Kit 2000-2006 Audi TT, VW Beetle Golf Jetta with 120A Bosch

Need to rebuild your vehicle's alternator? This premium replacement component kit is engineered to meet or exceed original factory specs, ensuring a perfect fit and long-lasting charging performance.

Note: Fits applications equipped with a 120 Amp Bosch alternator.

🚘 Vehicle Application Details

• Audi: TT (2000-2006 L4 1.8L 1781cc), TT Quattro (2000-2006 L4 1.8L 1781cc, 2004-2006 V6 3.2L 3189cc)
• Volkswagen: Beetle (1999-2001 L4 1.8L 1781cc, 1999-2006 L4 1.9L 1896cc Diesel, 1999-2005 L4 2.0L 1984cc, 2010 L5 2.5L 2480cc), Golf (2000-2006 L4 1.8L 1781cc, 1999-2006 L4 1.9L 1896cc Diesel, 1999-2006 L4 2.0L 1984cc), Jetta (2000-2005 L4 1.8L 1781cc, 1999-2005 L4 1.9L 1896cc Diesel, 1999-2003 L4 2.0L 1984cc)

🔍 Cross-Reference Alternator Assemblies (Fits These Units)

• Audi / Volkswagen OE: 028-903-028E, 028-903-030, 028-903-030A, 038-903-018Q, 038-903-018QX, 038-903-024F, 045-903-023A, 045-903-023AX, 028903028E, 028903030, 028903030A, 038903018Q, 038903018QX, 038903024F, 045903023A, 045903023AX
• Bosch OE & Reman: 0 124 515 010, 0 124 515 117, 0 124 515 121, 0 124 515 124, 0 124 515 125, 0 124 515 022, 0124515010, 0124515117, 0124515121, 0124515124, 0124515125, 0124515022, AL0189X (120 Amp)
• Ford OE: 1100712, 98VW 10300 EA
• Lester / PIC References: Lester 13853 | PIC 220-5104
• Other Crossovers: Canadian Tire 0195459, Delphi RM3314, DRI A/S Denmark 2111871202, 2113401202, Elpar Industries 0204036223, ERA 209393, 210247, Excel 10501, Friesen 9041860, HC Parts CA1394, CA1394IR, CA1644, CA1644IR, Hella 8EL 011 710-321, 8EL 737 593-001, Hollander 58827, J&N 400-24157, Wilson 90-15-6334

🔧 Component-Specific Technical Data

⚡ Voltage Regulator with Brushes Specs

• Technical Specifications: Heavy Duty, 12 Volt, Light 'L' - Frequency 'FR' Terminals
• Replaces OEM: Bosch F00M144136, F00M144154, F00M144175, F00M145200, F00M145209, F00M145225, F00M145261, F00M145296, F00M145315, F00M145337, F00M145341, F00M145350, F00M145384, F00M145396, F00M145397, F00M145862, F00M145876, F00M145891, F00MA45232, F00MA45300, F00MA45303
• Aftermarket Crossovers: IB5225, 230-24070, 230-24104, MFVR00450, VRB254, T9700, 176-024

⚡ Drive End Bearing (Front) Specs

• Industry Number: 54700 / 6303-2RS
• Dimensions: 17mm ID x 47mm OD x 14mm W
• Interchange Numbers: Bosch 1120905001, 1120905004, 1120905021, 1120905037, 1120905039, 1120905068, 1120905074, 1120905516, 1120905518, 1120905533, 1900905304, 1900905326, 1900905331, 1900905376, 1900905378, 1900905379, F00M990410, F00M990411, F00M990412 | 6-303-4N

⚡ Rotor SRE Bearing (Rear) Specs

• Industry Number: 53507 / 6003-2RS
• Dimensions: 17mm ID x 35mm OD x 10mm W
• Interchange Numbers: Bosch F00M990405, F00M990405370, F00M990432 | 6-103-4N

⚡ Slip Ring Specs

• Dimensions: 7.1mm ID x 16.1mm OD x 52mm L
• Replaces OEM: Bosch 1124303007, F00M143019
• Interchange Numbers: 28-91852, 7120202, 313-24002

⚡ Plastic Bearing Tolerance Ring Specs

• Dimensions: 35mm ID x 44mm OD x 50mm L
• Replaces OEM: Bosch F00M146900
• Interchange Numbers: 46-91553, 130-07023, 92202019, w110-61

💕 Our Worry-Free Promise

Because automotive electrical parts are highly specific, we want you to buy with total confidence. If you tear down your alternator and realize you need a different size or configuration, don't sweat it. We offer easy, no-hassle returns and fast refunds. We are here to help your DIY build succeed!
