Alternator Rebuild Kit 2001-2003 RX300 Highlander with 130 Amp Option Trailer Tow PKG - 13905RK-A

Lexus RX300 V6 3.0L 2995cc 2001-2003
Toyota Highlander V6 3.0L 2995cc 2001-2003

Alternator Manufacturer and Factory #s
Bosch Remanufactured AL3322X, AL3349X
Denso 104210-3040, 104210-3041, 104210-3042, 104210-3043, 9664219-304, 104210-3120, 104210-3121, 104210-3122, DAN1355, 210-0466, 210-0509
Excel 10724, 10635
Hollander 60791B, 60804
Lester 13927, 13905, 13927RK-A, 13905RK-A
MFR Series - Family Type HAIRPIN
Toyota 27060-20170, 27060-20170-84
Lexus 27060-20190, 27060-20190-84
J&N    400-52112, 400-52592R
Beck Arnley    186-1001, 186-1056
PIC Picture ID 290-5080, 290-5090
Remy Light Duty    12292, 12372
Wilson 90-29-5537, 90-29-5543

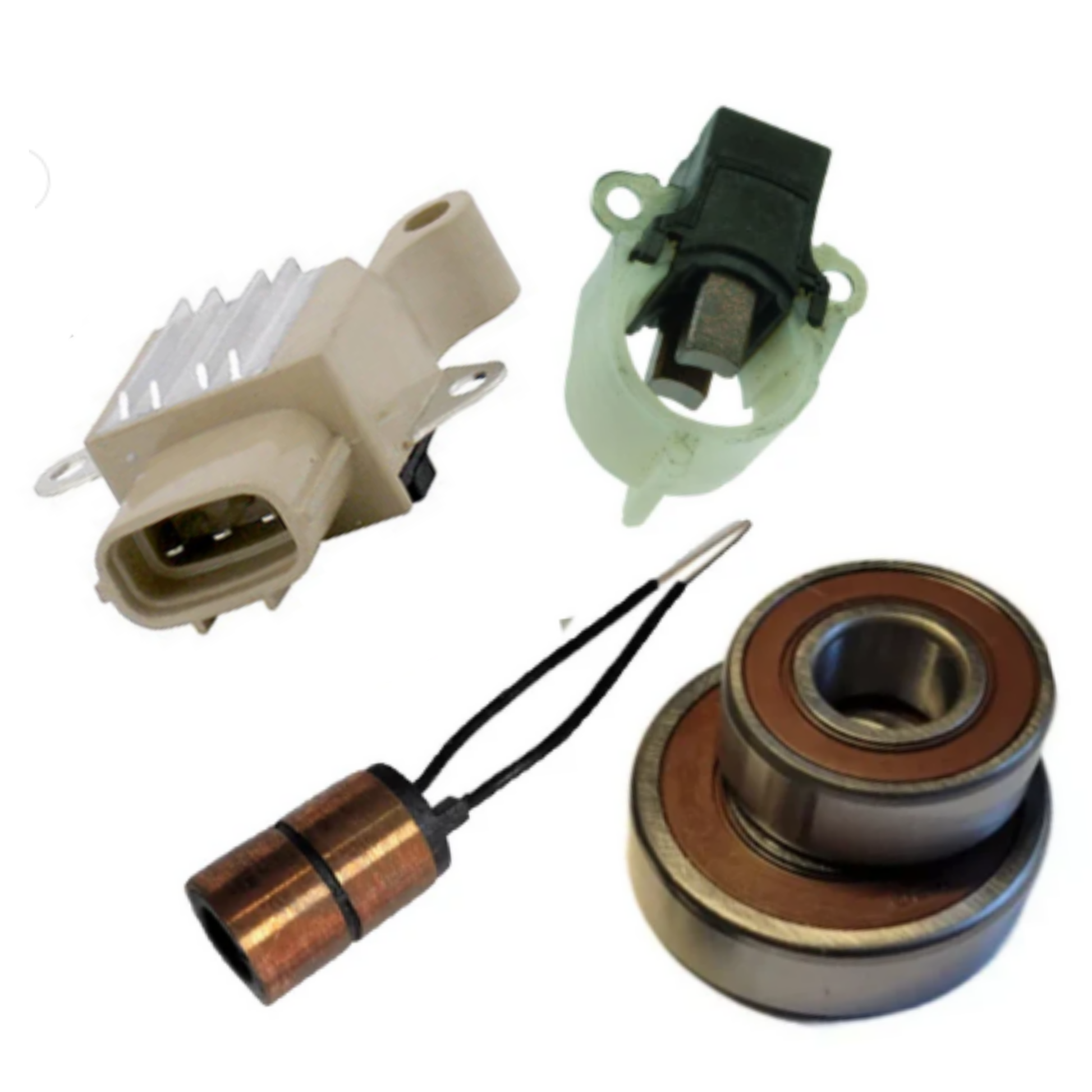

• Voltage Regulator - Specifications: 12 Volt, B-Circuit, S-IG-L Terminals, 14.2 Voltage Set Point, for Denso Alternators, Standard lamp function - no output. // Replaces Denso 0022, 0023, 126600-0020, 126600-0021, 126600-0022, 126600-0023, Toyota 27700-20060 Other: 80904460, ND-900, W085-275, GNR-N060, 26510, VRH2005-93A, 230-52107, 216-066 - IN6002

• Drive End Bearing 54700 17x47x14mm Ref# 6303-2RS, 949100-1010, 949100-2820 - 6-303-4W

• SRE Rotor Bearing 53514 15x35x13mm Ref# 279, 949100-2790, 949100-3980, 949100-4440 - 10-2021-4W

• Slip Ring 8.9 ID 14.6 OD 23.9 Length 7190904A, 28-82853

• Brush Holder Assembly with Brushes Replacing 021620-3001 39-8207
