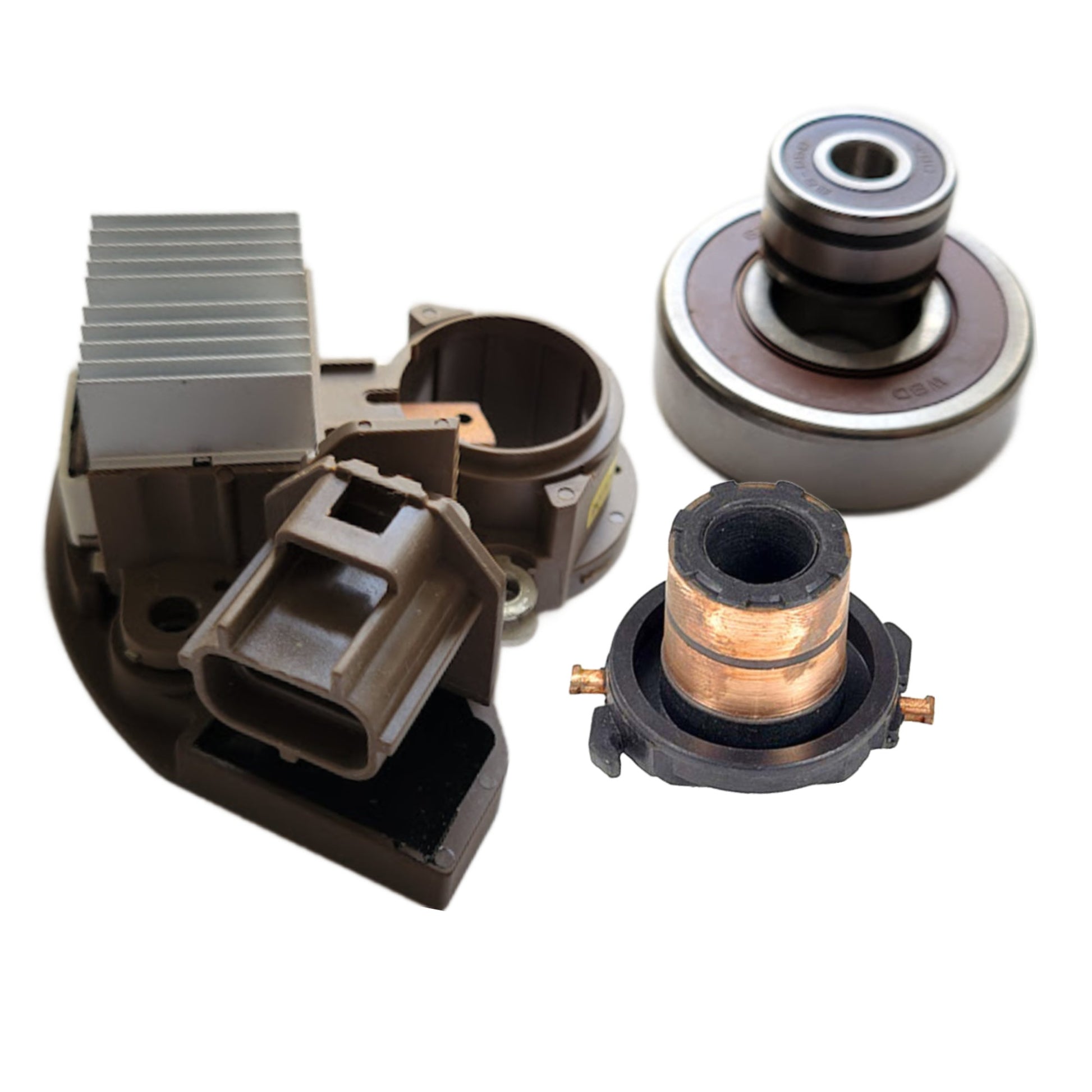

Alternator Rebuild Kit 2004-2006 Ford Crown Victoria w/200 Amp Mitsubishi - 11026RK-A

Need to rebuild your vehicle's alternator? This premium replacement component kit is engineered to meet or exceed original factory specs, ensuring a perfect fit and long-lasting charging performance.

🚙 Vehicle Application Details

• Ford Car:
  • Crown Victoria V8 4.6L (2004-2006) *200 Amp Mitsubishi Option

🔍 Cross-Reference Alternator Assemblies (Fits These Units)

• Mitsubishi: A004TJ0181, A004TJ0181ZC, A004TJ0182ZCKD, A004TJ018NC, A4TJ0181, A4TJ0181ZC
• Ford OE / Motorcraft: 4W73-10300-AC, 4W7Z-10346-AC, 4W7Z-10346-AD, 6W7Z-10346-AA, FW73-10346-AC, 4W73-AC, GL-598
• Bosch Reman: AL7601X
• Lester / PIC References: Lester 11026 | PIC 203-5075
• Other Crossovers: Excel 8481, Hollander 1015, New Generation 510260, Rayloc 138498, Ultima Select 394414

📐 Component-Specific Technical Data

⚡ Voltage Regulator with Brushes Specs

• Technical Specifications: 12 Volt, LI-RC-AS Terminals, 14.0 Voltage Set Point, PCM Controlled Regulation Voltage
• Replaces OEM: Mitsubishi 529, 624, A866T52970, 612, 6248710H
• Aftermarket Crossovers: IM529, T52015, W085-259, 196-006, 28661, 1J-60016, MT-522, VRH2009-98, 80033099

⚡ Slip Ring Specs

• Design: For Mitsubishi Alternators
• Dimensions: 13.5mm ID x 23mm OD
• Interchange Numbers: 28-83852

⚡ Drive End Bearing (Front) Specs

• Industry Number: 54700
• Dimensions: 17mm ID x 47mm OD x 14mm W
• Interchange Numbers: 6-303-4

⚡ Rotor SRE Bearing (Rear) Specs

• Industry Number: 52312
• Dimensions: 8mm ID x 23mm OD x 14mm W
• Interchange Numbers: 10-800-4

❤️ Our Worry-Free Promise

Because automotive electrical parts are highly specific, we want you to buy with total confidence. If you tear down your alternator and realize you need a different size or configuration, don't sweat it. We offer easy, no-hassle returns and fast refunds. We are here to help your DIY build succeed!
