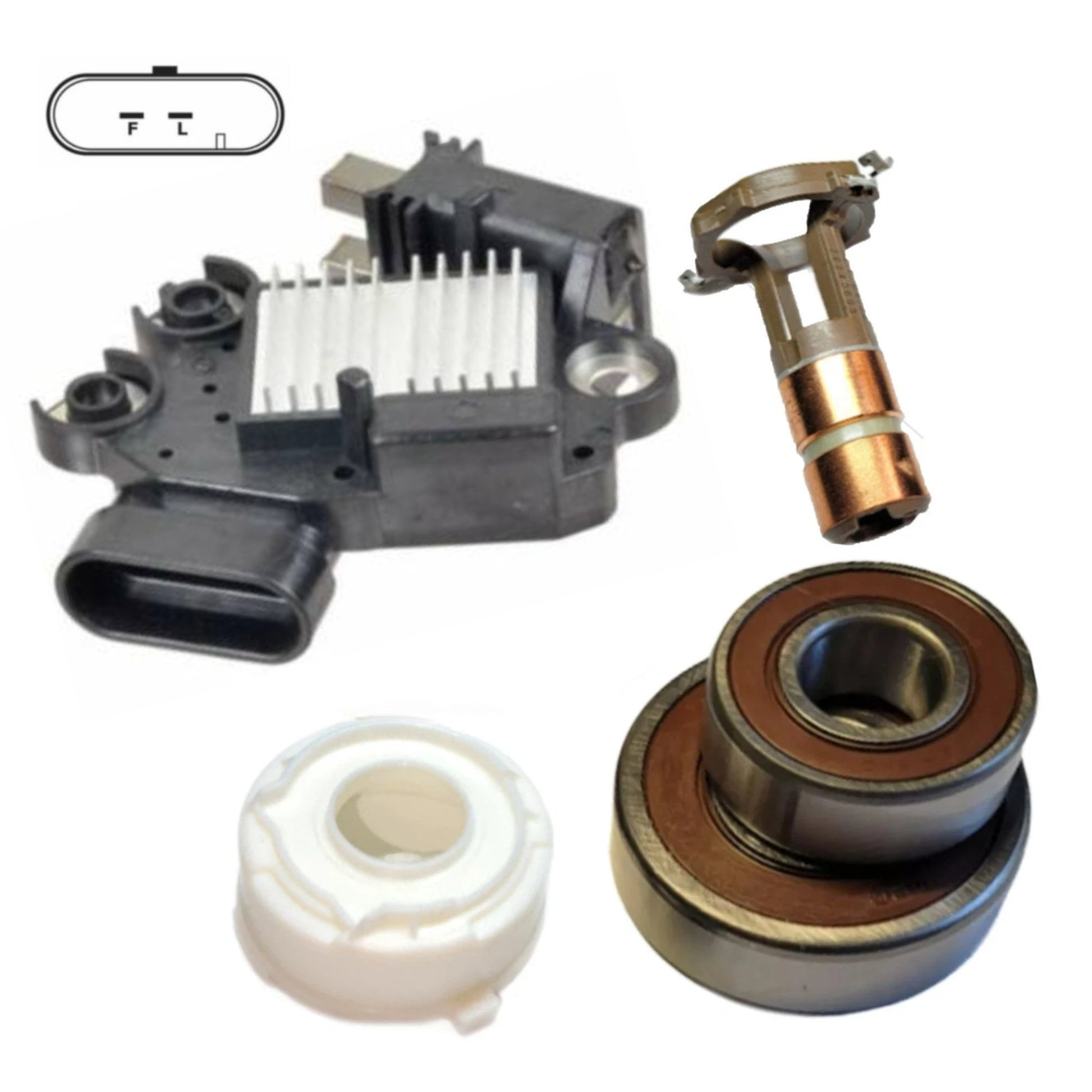

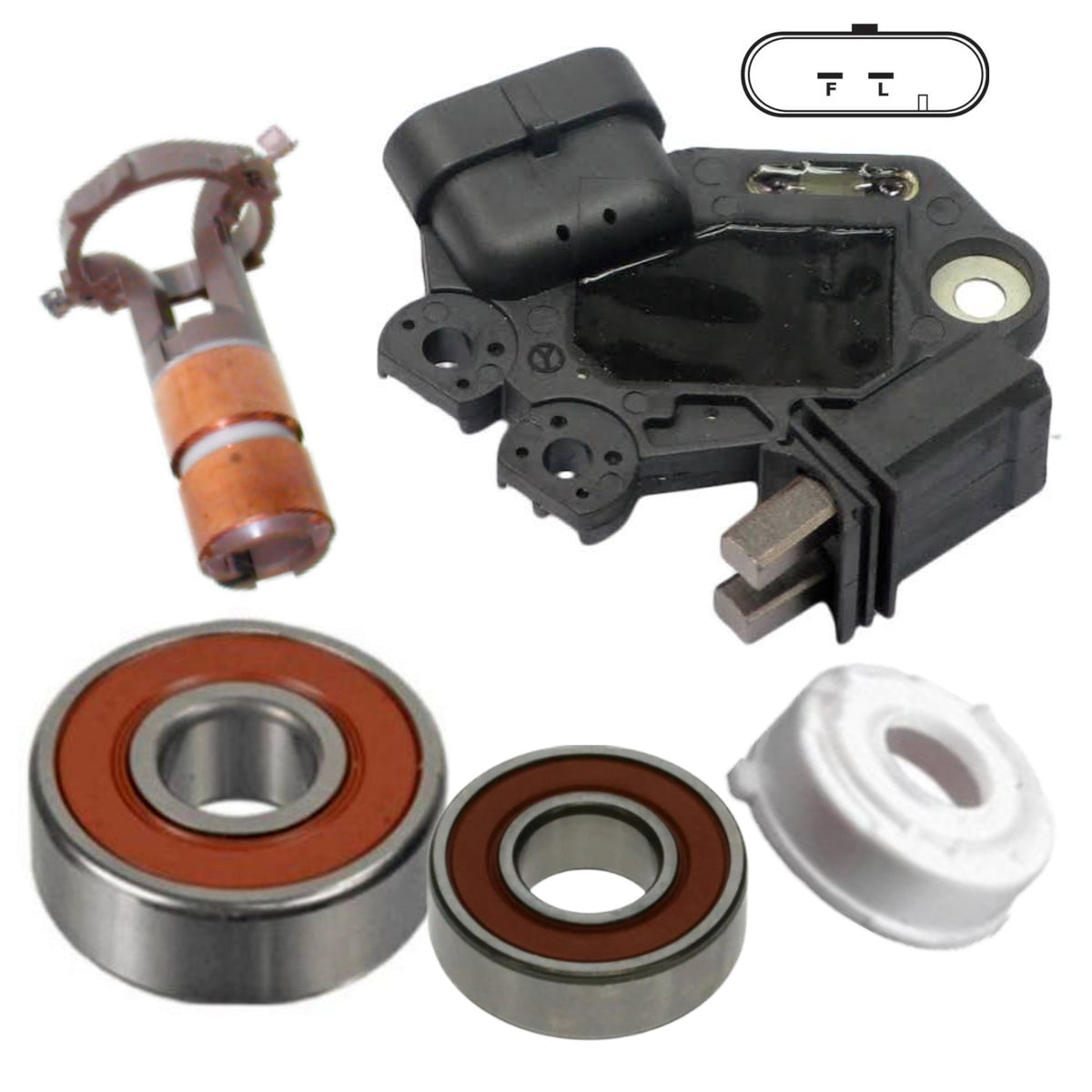

Alternator Rebuild Kit Rendezvous 3.6L w/ Valeo TG13S011, TG13S019, TG13S027 - 11022RK-A

Need to rebuild your vehicle's alternator? This premium rebuild component kit is engineered to meet or exceed original factory specs, ensuring a perfect fit and long-lasting charging performance.

🚘 Vehicle Application Details

• Buick: Rendezvous (2004-2006 V6 3.6L)

🔍 Cross-Reference Alternator Assemblies (Fits These Units)

• GM OE / Delco: 10320213, 10354847, 15283754, 15875992, 1X236476A
• Valeo OE: TG13S011, TG13S019, TG13S027, 2650077A, 2650375A, 849035
• Bosch Reman: AL8549X
• Lester / PIC References: Lester 11022 | PIC 208-725
• Other Crossovers: Excel 10721, Hollander 1003, 925, J&N 400-40066, Remy Light Duty 12565, Wilson 90-22-5535

🔧 Component-Specific Technical Data

⚡ Voltage Regulator with Brushes Specs

• Technical Specifications: 12 Volt
• Replaces OEM: Valeo 2542765, 2542765C, 2548154E, 2601726, 2650490, 2650655, 702157
• Aftermarket Crossovers: M524, 266-015, GNR-V008H, W082-24, T8524

⚡ Drive End Bearing (Front) Specs

• Industry Number: 54700 / 6303-2RS
• Dimensions: 17mm ID x 47mm OD x 14mm W
• Interchange Numbers: 6-303-4W

⚡ Rotor SRE Bearing (Rear) Specs

• Industry Number: 53500 / 6202-2RS
• Dimensions: 15mm ID x 35mm OD x 11mm W
• Interchange Numbers: 6-202-4W

⚡ Bearing Tolerance Ring / Cap Specs

• Dimensions: 35mm ID x 37mm OD x 19mm Overall Height
• Replaces OEM: Valeo 2545308, 591002
• Interchange Numbers: 46-94435

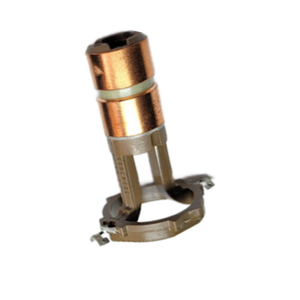

⚡ Slip Ring Specs

• Dimensions: 9mm ID x 14.9mm OD x 48.3mm L
• Replaces OEM: Valeo 2606286
• Interchange Numbers: 24-94867

💕 Our Worry-Free Promise

Because automotive electrical parts are highly specific, we want you to buy with total confidence. If you tear down your alternator and realize you need a different size or configuration, don't sweat it. We offer easy, no-hassle returns and fast refunds. We are here to help your DIY build succeed!
