Alternator Rebuild Kit 2004-2007 Accord V6 3.0L 104210-3500, 104210-4480, -4481 - 11030RK-A

Need to rebuild your vehicle's alternator? This premium replacement component kit is engineered to meet or exceed original factory specs, ensuring a perfect fit and long-lasting charging performance.

🚘 Vehicle Application Details

• Honda Car: Accord V6 3.0L (2004-2007)

🔍 Cross-Reference Alternator Assemblies (Fits These Units)

• Bosch Remanufactured: AL4057X
• Denso: 104210-3500, 104210-4480, 104210-4481
• Excel: 10772
• GM: 88861823
• Hollander: 60910
• Honda: 31100-RCB-Y01, 31100-RCB-Y02, 31100-RCB-505RM, 06311-RCB-505RM, CSC50, CSD48
• Lester: 11030
• J&N: 400-52368
• Beck Arnley: 186-1180
• PIC Picture ID: 290-5187
• Remy Light Duty: 12638
• Wilson: 90-29-5581

📐 Component-Specific Technical Data

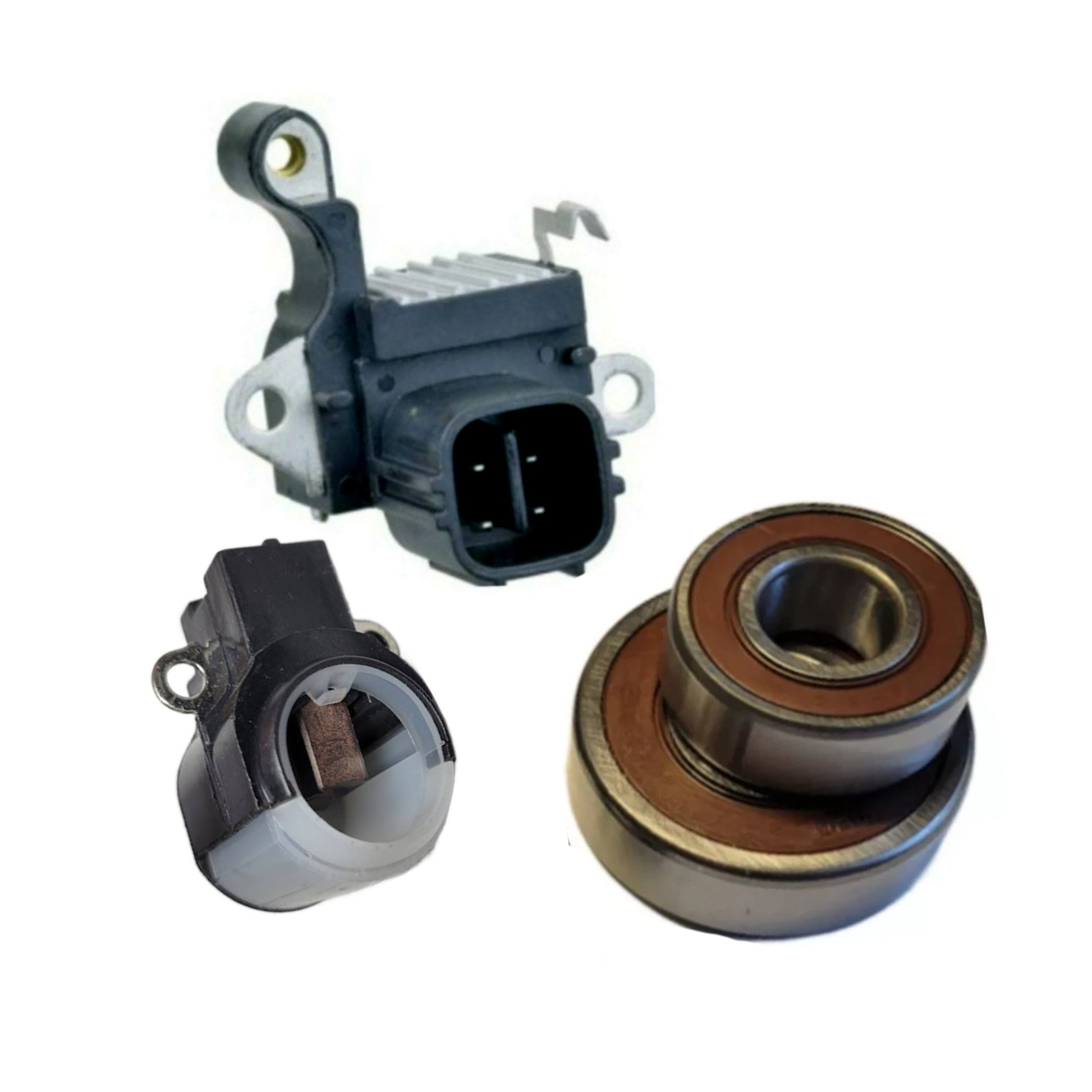

⚡ Voltage Regulator Specs

• Technical Specifications: 12 Volt, B-Circuit, IG-C-L-FR Terminals, 14.35 Voltage Set Point, For Denso IR/IF Alternators, Standard lamp function - no output, Ignition activated, OE compliant C-function, Short-circuit protection (lamp, field)
• Replaces OEM: Denso 126600-3070, 126600-3150, 3070, 3150, GA13070, GA13150
• Aftermarket Crossovers: IN6315, 8090-4472, 107315, T7315, W085-283, 230-52133, 230-52163, 1K-60011, 216-078, 26517, ND-942, ND-942P

⚡ Drive End Bearing (Front) Specs

• Industry Number: 54700 / 6303-2RS
• Dimensions: 17mm ID x 47mm OD x 14mm W
• Interchange Numbers: 1900905164

⚡ Rotor SRE Bearing (Rear) Specs

• Industry Number: 53514 / 279
• Dimensions: 15mm ID x 35mm OD x 13mm W
• Interchange Numbers: 949100-2790, 949100-3980, 949100-4440

⚡ Brush Holder Assembly with Brushes Specs

• Interchange Numbers: 021620-3020, 021660-0390, 021660-0510, 39-8206

❤️ Our Worry-Free Promise

Because automotive electrical parts are highly specific, we want you duly to buy with total confidence. If you tear down your alternator and realize you need a different size or configuration, don't sweat it. We offer easy, no-hassle returns and fast refunds. We are here to help your DIY build succeed!
