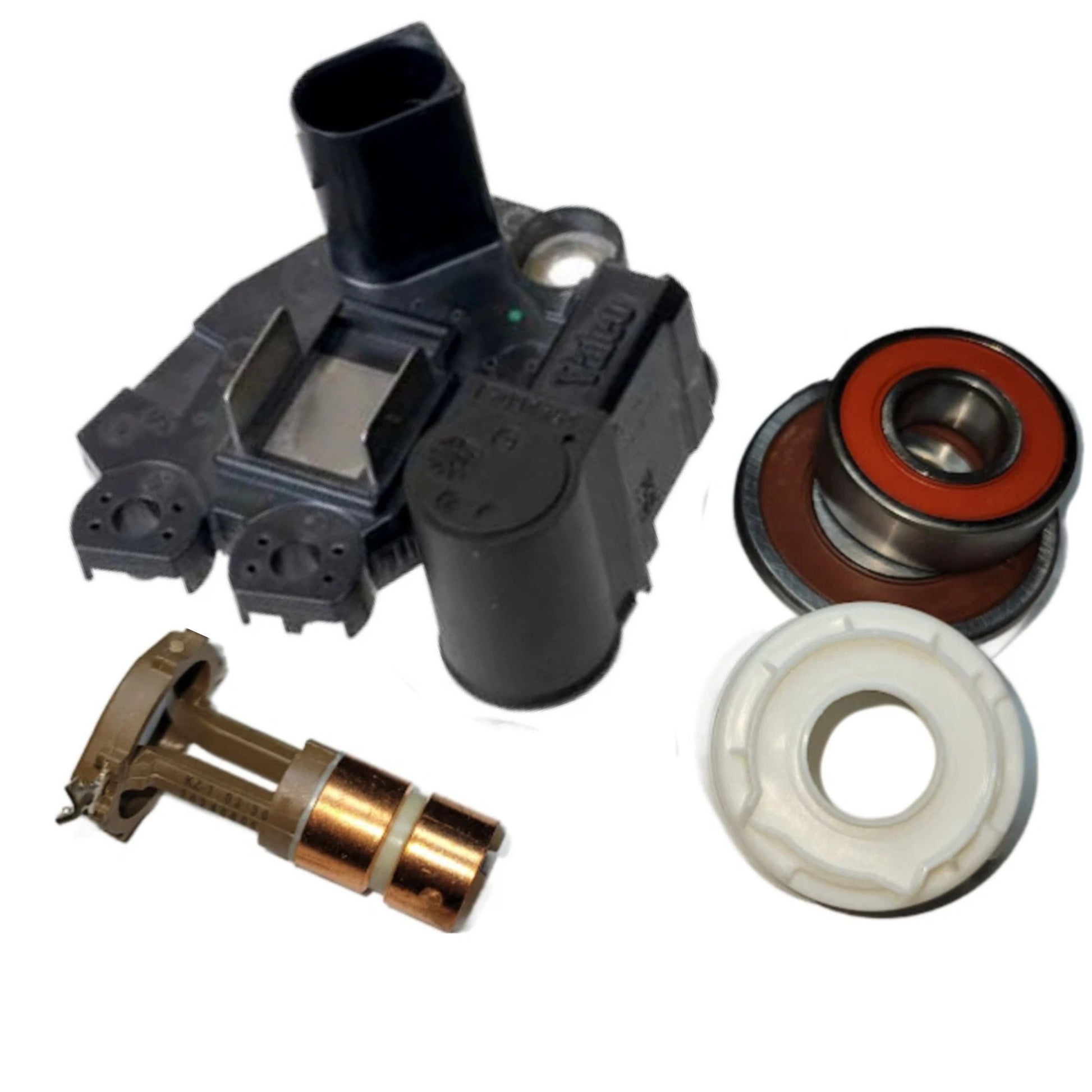

Alternator Rebuild Kit 2006-2007 Volkswagen Passat 3.6L 180 Amp TG17C019 - 11257RK-A

Alternator Manufacturer and Factory #s
Audi, Volkswagen 021-903-026-L, 021-903-026-LX, 021-903-026L, 021-903-026LX; 021903026L, 021903026LX, 021903026L, 021903026LX
ERA 210898
Excel 10907
Hollander 50122
Lester 11257
Valeo TG17C019, FG18T033, 439558, 437555, 2542783D

** must match the 180 Amp Valeo TG17C019 Option
Volkswagen Passat V6 3.6L 3597CC 219CID 2006-2007
** Also options on these models
for 180 Amp Bosch see Alternator # 11221
for 140 Amp Valeo see Alternator # 11149
for 140 Amp Bosch see Alternator # 11134

• Voltage Regulator with Brushes - Specifications: 12 Volt, B-Citcuit, 14.5 Vset, L-DFM Terminals, Valeo IR/IF Alternators // Replaces Audi, Volkswagen 06E 903 803M, 06E903803C, 06E903803M,  Valeo 2591674, 2606138, 593998, 595339, Other M605, 80084059, 09709OE, W082-124N

• Drive End Bearing 54700 17x47x14mm / Ref#s 6303-2RS 17x47x14mm Ref 593563

• SRE Rear Rotor Bearing 53500 15x35x11mm / Ref#s 6202DWS 15x35x11mm Ref 593684

• Tolerance Ring / Bearing Cap 35mm ID x 37.3mm OD x 19.3mm OA Height Ref 46-94435

• SlipRing, 48.3mm L / 9mm ID / 14.9mm OD Replaces Valeo 2606286 - 28-94867
