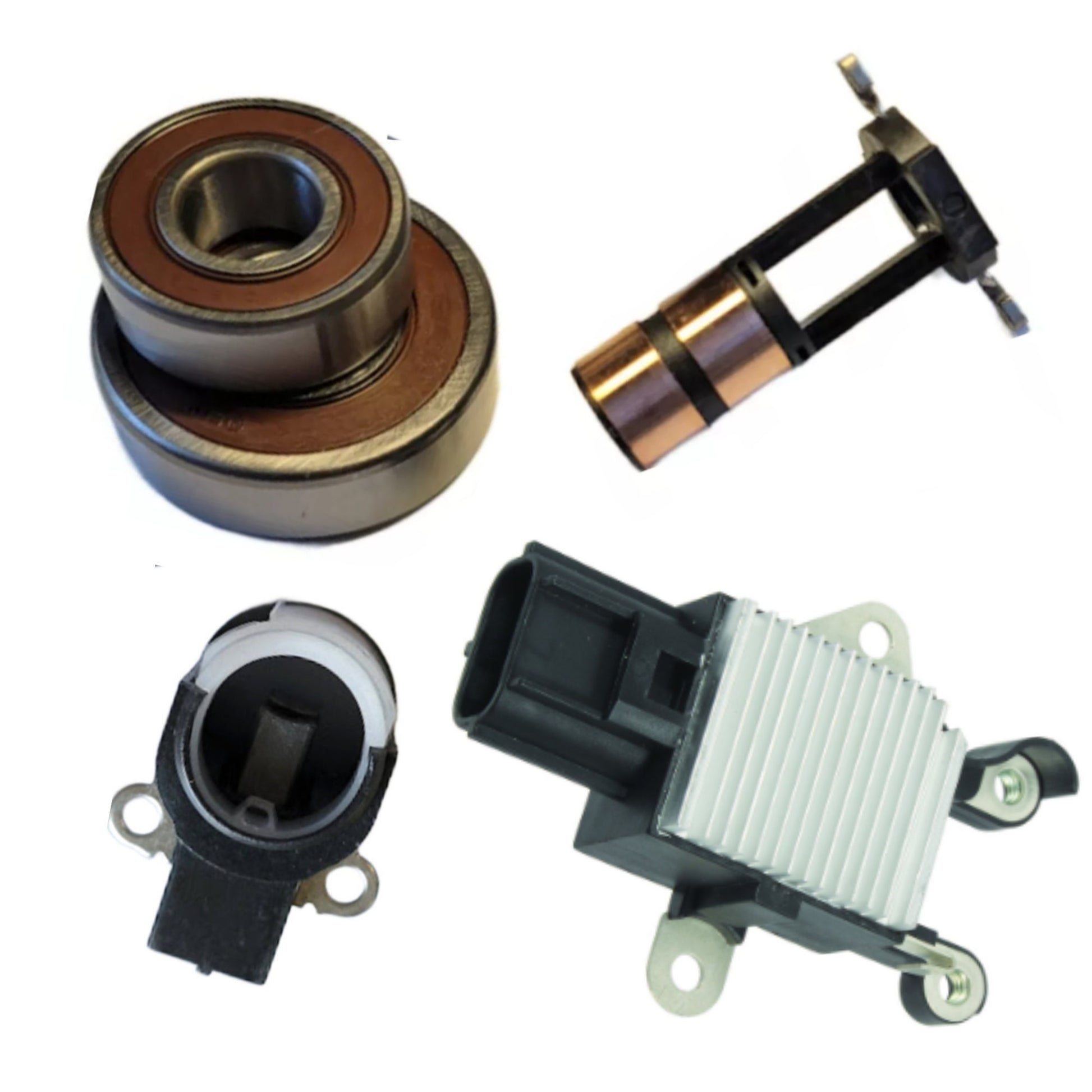

Alternator Rebuild Kit 2006 Navigator Expedition with 150A Denso 104210-4700 - 11430RK-A

Ford Expedition V8 5.4L 330cid 2006 with 150 Amp Denso Option
Lincoln Navigator V8 5.4L 330cid 2006 with 150 Amp Denso Option
WILL NOT FIT THE FORD 6G ALTERNATORS SEEN ON THESE MODELS

Alternator Manufacturer and Factory #s
Bosch Remanufactured AL7666X
Denso 104210-4700
Ford 7L7T-10300-AB, 7L7Z-10346-A, 7L7T-AB, 7L7T10300AB, 7L7Z10346A, GL918
Lester 11430
MFR Series - Family Type HAIRPIN
Motorcraft GL-918, GLV8626RM
J&N 400-52386
PIC Picture ID 290-5296
Remy Light Duty 12921
Wilson 90-29-5733

• Voltage Regulator, Specifications: 12 Volt, A-Circuit, BVS-RC-LI Terminals, 14.0 Voltage Set Point, Regulation voltage controlled by vehicle PCM., Vehicle lamp controlled by vehicle PCM. / Replaces Denso 126600-3460, 126600-7140, 041005, PCM01, Other 80904478,VRH2005-88, 230-52120, W085-290, GNR-N079, 216-071, ND-896HD - IN6601

• SRE Rotor Bearing 53514 15x35x13mm 279, Replacing 949100-2790, 949100-3980, 949100-4440 - 10-2021-4W

• DE Drive End Bearing 54700 17x47x14mm 6303-2RS, Replacing 1900905164 - 6-303-4W

• Brush Holder Assembly with Brushes Ref# 021620-3020, -3030, -3040 - 39-8206

• Slipring 5.8mm ID • 14.3mm OD Slip Ring • 11mm LL // s Denso ... Other 7190-904B, 313-52004, W165-11, W16511, AND3505 - 28-82854
