Alternator Rebuild Kit 2008-2010 Town&Country Caravan 3.3 3.8, 2009-2011 Wrangler 3.8L 140 Amp - 11294RK-A

Chrysler Town & Country V6 3.3L 2008-2010 140 Amp
Chrysler Town & Country V6 3.8L 2008-2010 140 Amp
Dodge Grand Caravan V6 3.3L 2008-2010 140 Amp
Dodge Grand Caravan V6 3.8L 2008-2010 140 Amp
Jeep Wrangler V6 3.8L 2007-2011 140 Amp

Alternator Manufacturer and Factory #s
Bosch Remanufactured AL6477X, AL6462X
Chrysler 04727865AB, 4727865AB, R4727865AB, RX727865AB, 04801304AC, 4801304AC
Denso 421000-0560, 421000-0540, 421000-0541, 421000-0542
Excel 10964, 10963
Lester 11294, 11243

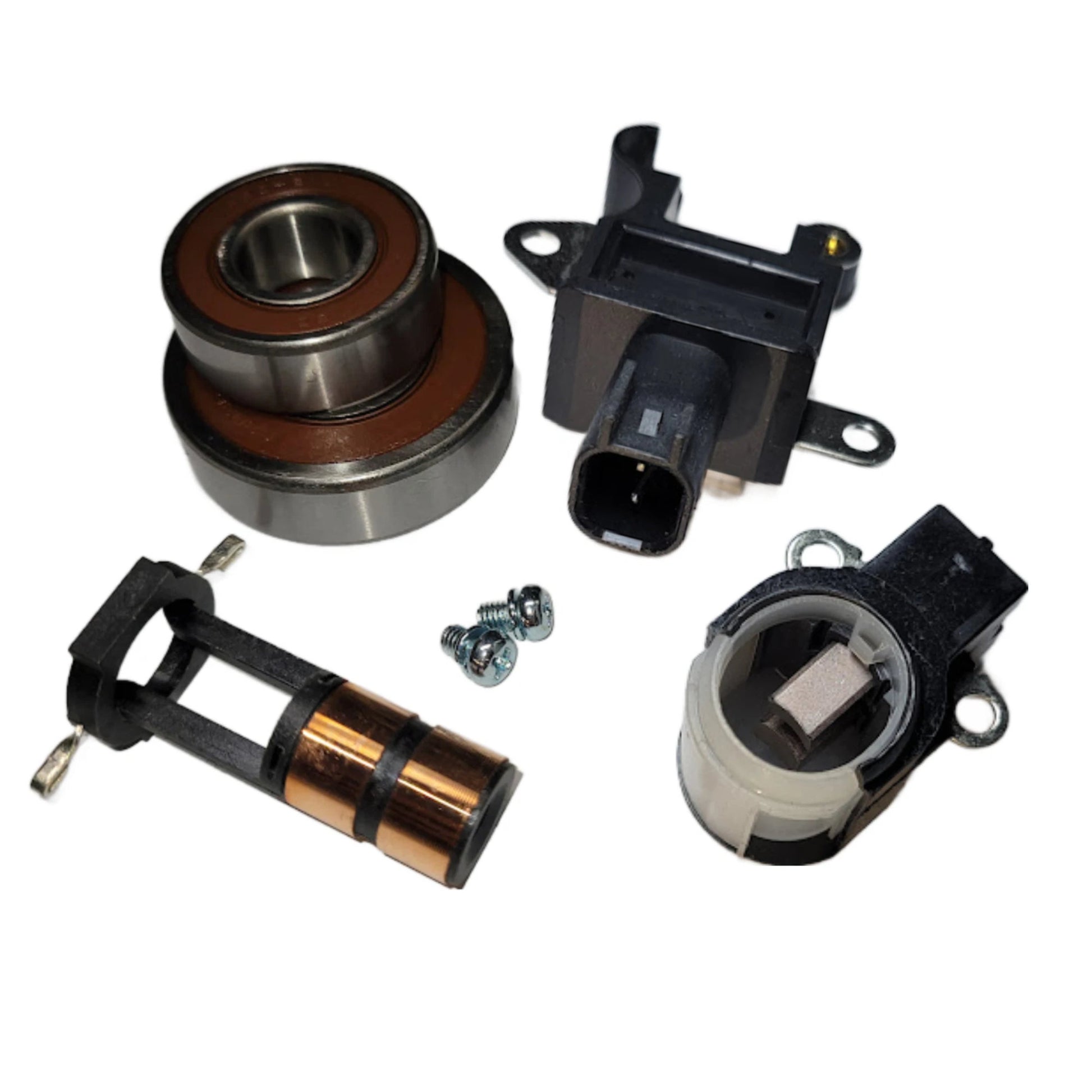

• Alternator Terminal Connector, Specifications: ECU Operated Terminal, F (FLD), B+ Terminals, Denso 136-160A Alternators, provides an interface between the alternator and vehicle ECU. The design incorporates an EMI 4.7uF capacitor, a rectifier B+ terminal with series resistor, and a field circuit terminal, :B+ terminal with 2.4 kOhm resistor, EMI capacitor Replaces 211-608, 170-52006, W115-202, 99901009, TBND165 - 46-82208

• SRE Rotor Bearing 15x35x13mm 279, Replacing 949100-2790, 949100-3980, 949100-4440, 53514 - 10-2021-4W

• Drive End Bearing 17x47x14mm Ref# 6303-2RS, 949100-1010, 949100-2820, 54700 - 6-303-4W

• Brush Holder Assembly with Brushes, Replacing 021620-3030 - 39-8206

• Slip Ring for Hairpin Denso 5.8mm ID • 14.3mm OD Slip Ring • 11mm LL - 28-82854
• 85-1205x2
