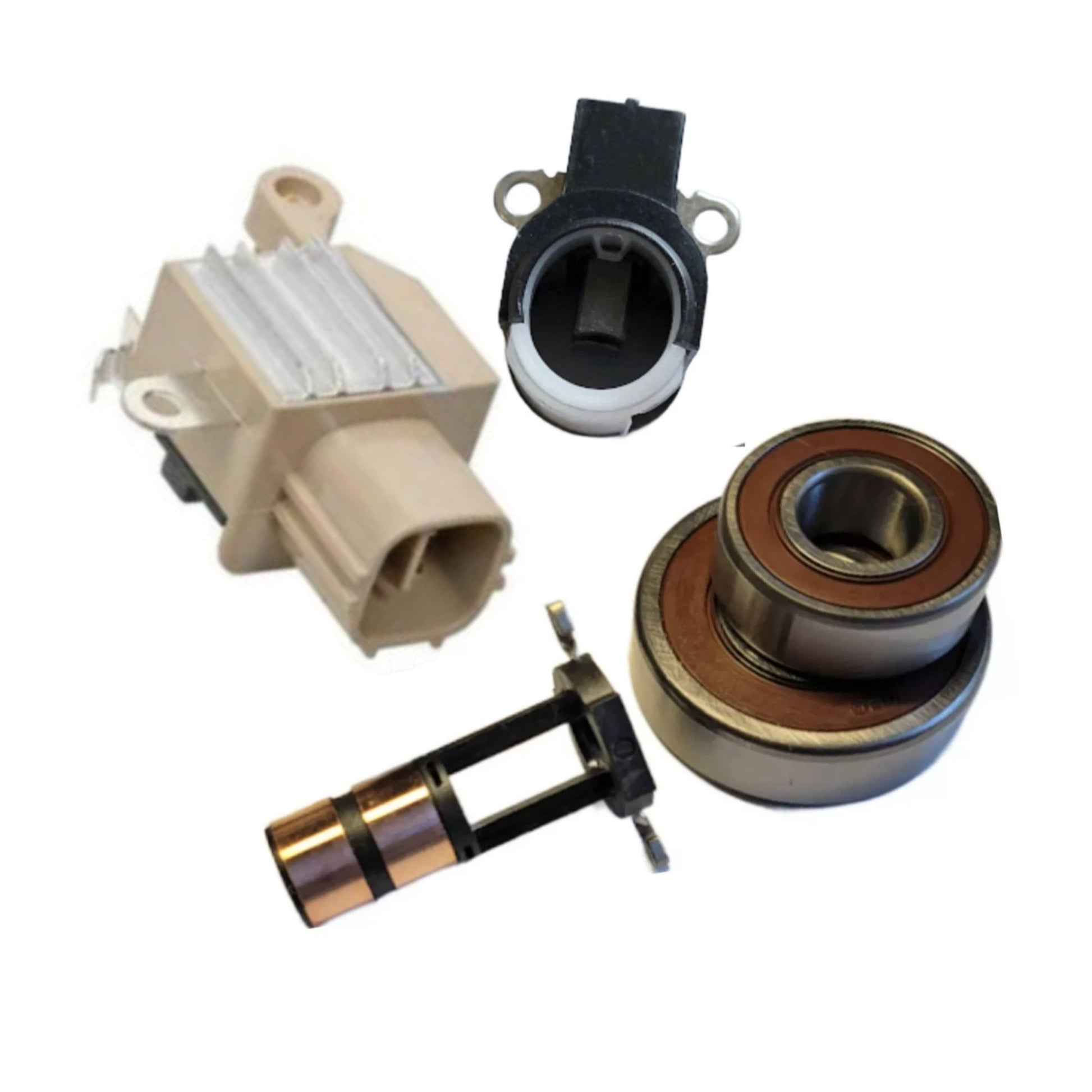

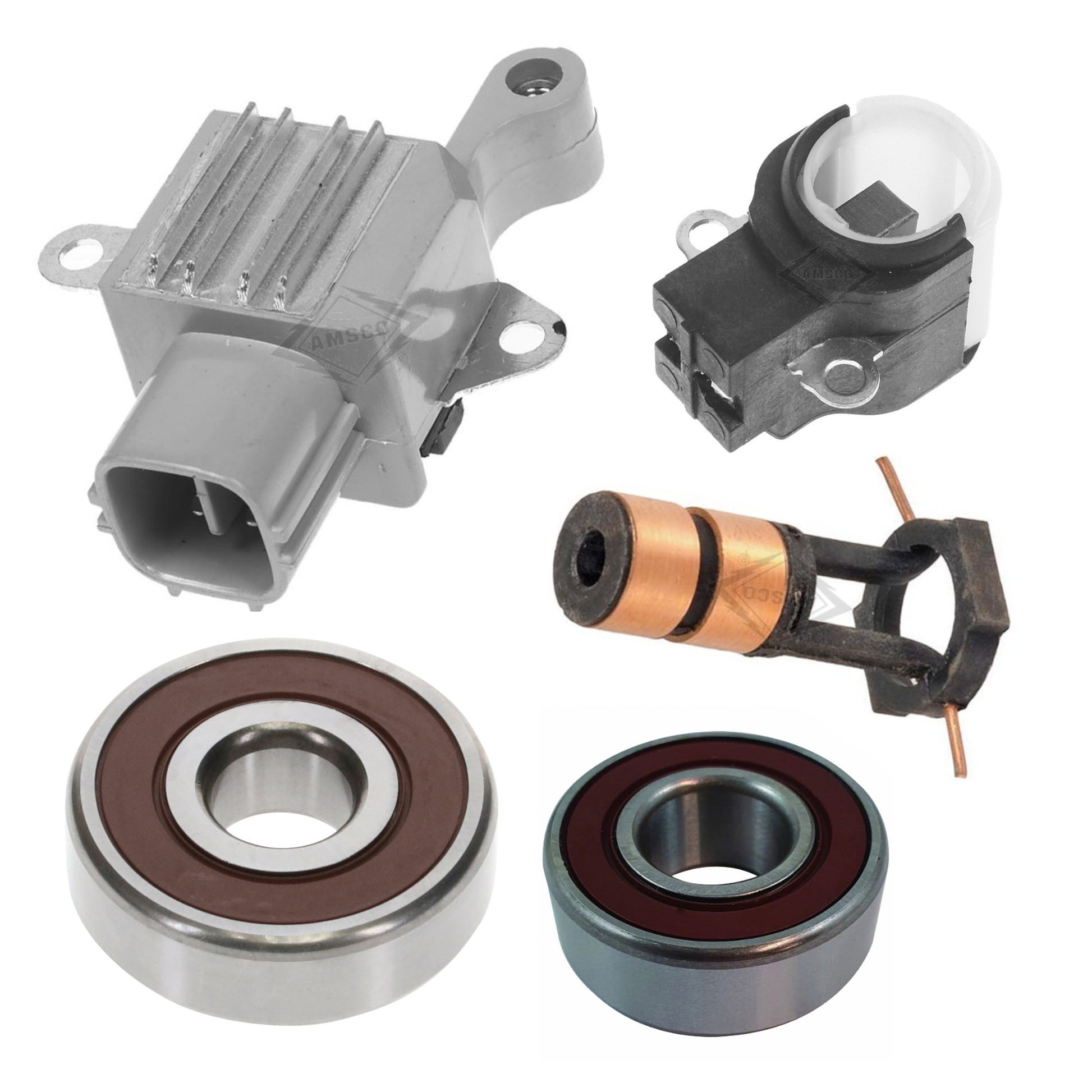

Alternator Rebuild Kit 2008-2016 LX570 Landcruiser, 2008-2022 Sequoia 104210-6140 - 11405RK-A

Need to rebuild your vehicle's alternator? This premium rebuild component kit is engineered to meet or exceed original factory specs, ensuring a perfect fit and long-lasting charging performance.

🚘 Vehicle Application Details

• Lexus: LX570 V8 5.7L (2008-2011, 2013-2016)
• Toyota: Land Cruiser V8 5.7L (2008-2011, 2013-2016), Sequoia V8 4.6L (2010-2012), Sequoia V8 5.7L (2008-2022)

🔍 Cross-Reference Alternator Assemblies (Fits These Units)

• Bosch Remanufactured: AL3375X
• Denso: 27060-38050, 104210-6140, 210-0719
• Excel: 10936
• J&N: 400-52324
• Lester: 11405
• Lexus / Toyota OE: 27060-38050
• PIC: 290-5548
• Remy Light Duty: 12898
• Wilson: 90-29-5728

📐 Component-Specific Technical Data

⚡ Voltage Regulator Specs

• Technical Specifications: B-Circuit, IG-S-L-M(FR) Terminals, 14.1 Voltage Set Point
• Replaces OEM: Denso 126600-3010, 126600-3040, 126600-3360, 126600-3361, 126600-3390, 126600-3391, 126600-4340, 3040, GS2M3361; GS2M3010, GS2M3040, GS3M3390; Toyota 27700-20090, 27700-20100
• Aftermarket Crossovers: 80904446, 80904476, 80904452, 80904593, 230-52164, 230-52113, T7301, 216-065, 26511, IN6301

⚡ Slip Ring Specs

• Design: For Hairpin Denso Alternators
• Dimensions: 5.8mm ID x 14.3mm OD x 11mm L
• Interchange Numbers: 28-82854

⚡ Drive End Bearing (Front) Specs

• Industry Number: 55222
• Dimensions: 17mm ID x 52mm OD x 16mm W
• Interchange Numbers: 949100-3330, 949100-4370, 949100-5010, 10-3042-4W

⚡ Rotor SRE Bearing (Rear) Specs

• Industry Number: 53514
• Dimensions: 15mm ID x 35mm OD x 13mm W
• Interchange Numbers: 279, 949100-2790, 949100-3980, 949100-4440, 10-2021-4W

⚡ Brush Holder Assembly Specs

• Features: Includes Brushes
• Interchange Numbers: 021620-3020, 021620-3030, 021620-3040, 39-8206

❤️ Our Worry-Free Promise

Because automotive electrical parts are highly specific, we want you to buy with total confidence. If you tear down your alternator and realize you need a different size or configuration, don't sweat it. We offer easy, no-hassle returns and fast refunds. We are here to help your DIY build succeed!
