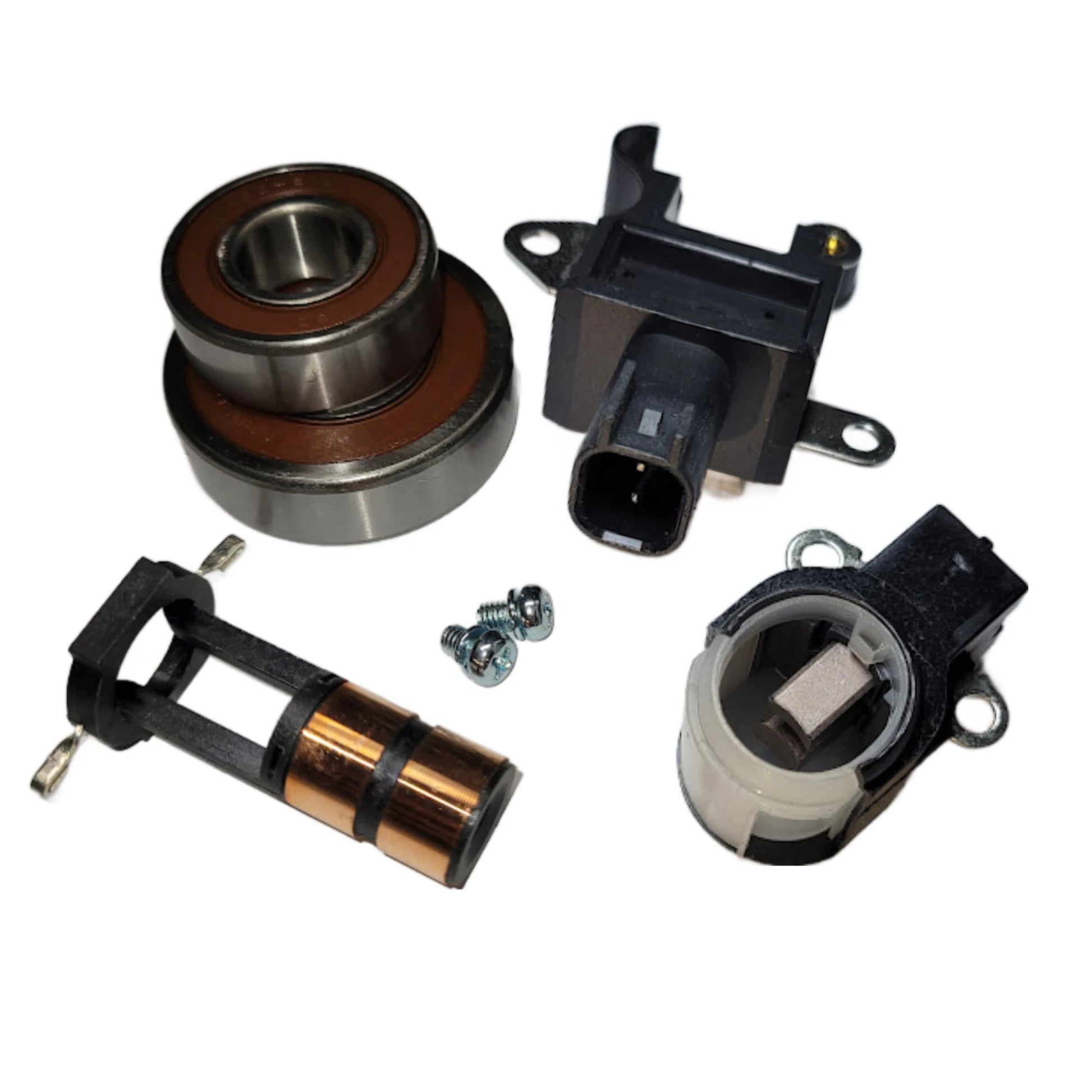

Alternator Rebuild Kit 2009-2018 Ram 5.7L Hemi 160 Amp - 11299RK-A

Dodge Ram 1500 V8 5.7L 345cid 2009-2010 160 Amp
Dodge Ram 2500 V8 5.7L 345cid 2010 160 Amp
Ram 1500 V8 5.7L 345cid 2011-2012 160 Amp
Ram 2500 V8 5.7L 345cid 2011-2018 160 Amp
Ram 3500 V8 5.7L 345cid 2011-2018 160 Amp

Alternator Manufacturer and Factory #s
Bosch Remanufactured AL6476X
Chrysler 56028697AM, 56028697AP, R6028697AP, 56028697AO, 56028697AQ, P56028697AO, 56028697AL
Denso 421000-0730, 421000-0731, TN421000-0730, TN421000-0731, 421000-0722, TN421000-0722, 421000-0721
Lester 11299, 11389
Lester Old 11756, 11389
Excel 10968
MFR Series - Family Type HAIRPIN
PIC# 290-5139E, 290-5519, 290-5567

• Alternator Terminal Connector, Specifications: ECU Operated Terminal, F (FLD), B+ Terminals, Denso 136-160A Alternators, provides an interface between the alternator and vehicle ECU. The design incorporates an EMI 4.7uF capacitor, a rectifier B+ terminal with series resistor, and a field circuit terminal, :B+ terminal with 2.4 kOhm resistor, EMI capacitor Replaces 211-608, 170-52006, W115-202, 99901009, TBND165 - 46-82208

• Drive End DE Bearing 54700 17x47x14mm 6303-2RS, Replacing 1900905164 - 6-303-4W
• Drive End Bearing 55222 17x52x16mm Ref# 333-2RS, Replacing 949100-3330, 949100-4370, 949100-5010 -10-3042-4W

• Brush Holder Assembly with Brushes, Replacing 021620-3020, 021620-3030 - 39-8206

• Slip Ring for Hairpin Denso 5.8mm ID • 14.3mm OD Slip Ring • 11mm LL - 28-82854

• Attaching Screws - 85-1205x2
