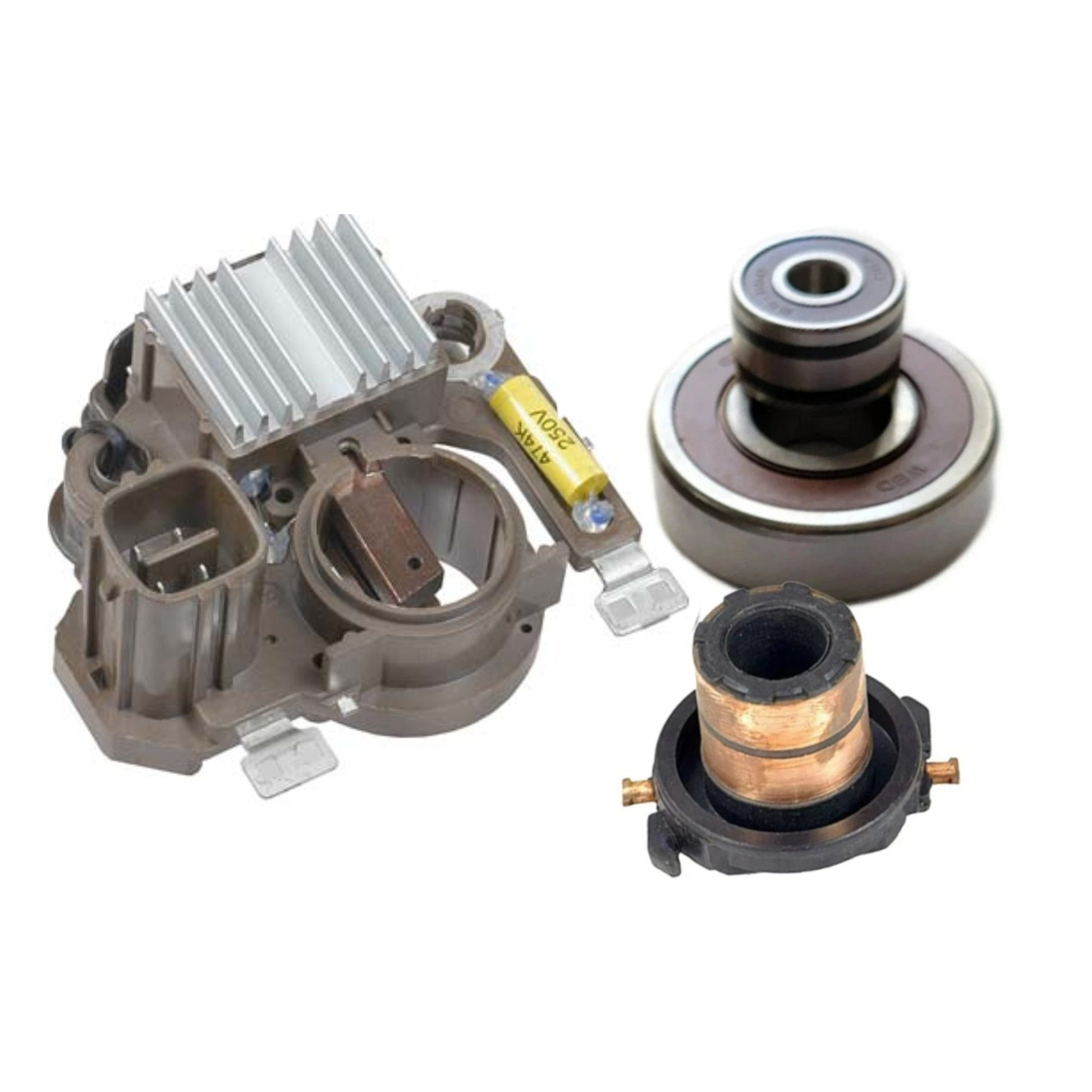

Alternator Rebuild Kit 2010-2013 Suzuki SX4 with Auto CVT Transmission with A5TG1881 - 11564RK-A

Suzuki SX4 L4 2.0L 2010-2013
Suzuki SX4 Crossover L4 2.0L 2012

Alternator Manufacturer and Factory #s
Bosch Aftermarket AL4514X (Reman)
Bosch Service Europe 0-986-CR6-321, 0-986-UR6-321
DENSO Auto Parts Aftermarket 210-4242
Lester 11564
Lester Old 11619
Mitsubishi A005TG1881, A5TG1881, A5TG1881A, A5TG1881B
Suzuki 31400-78K20, 31400-78K21, 31400-78K22
PIC# 203-5467
PIC Old 203-5466

• Voltage Regulator with Brushes - Specifications: 12 Volt, A-Circuit, G-C-L-FR Terminals, 14.6 Voltage Set Point, for Mitsubishi IR/IF Alternators, Standard lamp function - no output., G-terminal = IG, Soft start, LRC, System Voltage: 12 // Replaces: Honda 31150-RSH-004, Mitsubishi 582, 5828206C, 5828219G, Other: IM582, VRH2009-119, 230-48128, 80033117, W085-305, 196-105 - IM582

• Drive End Bearing 54700 17x47x14mm 6303-2RS - 6-303-4W

• SRE Rotor Bearing 52312 8x23x14mm B8-23D - 10-800-4

• Slip Rings for Mitsubishi Alternators 13.5mm ID x 22.7mm OD Replaces: 710312, 313-48001, W165-10, 193-501 - 28-83852
