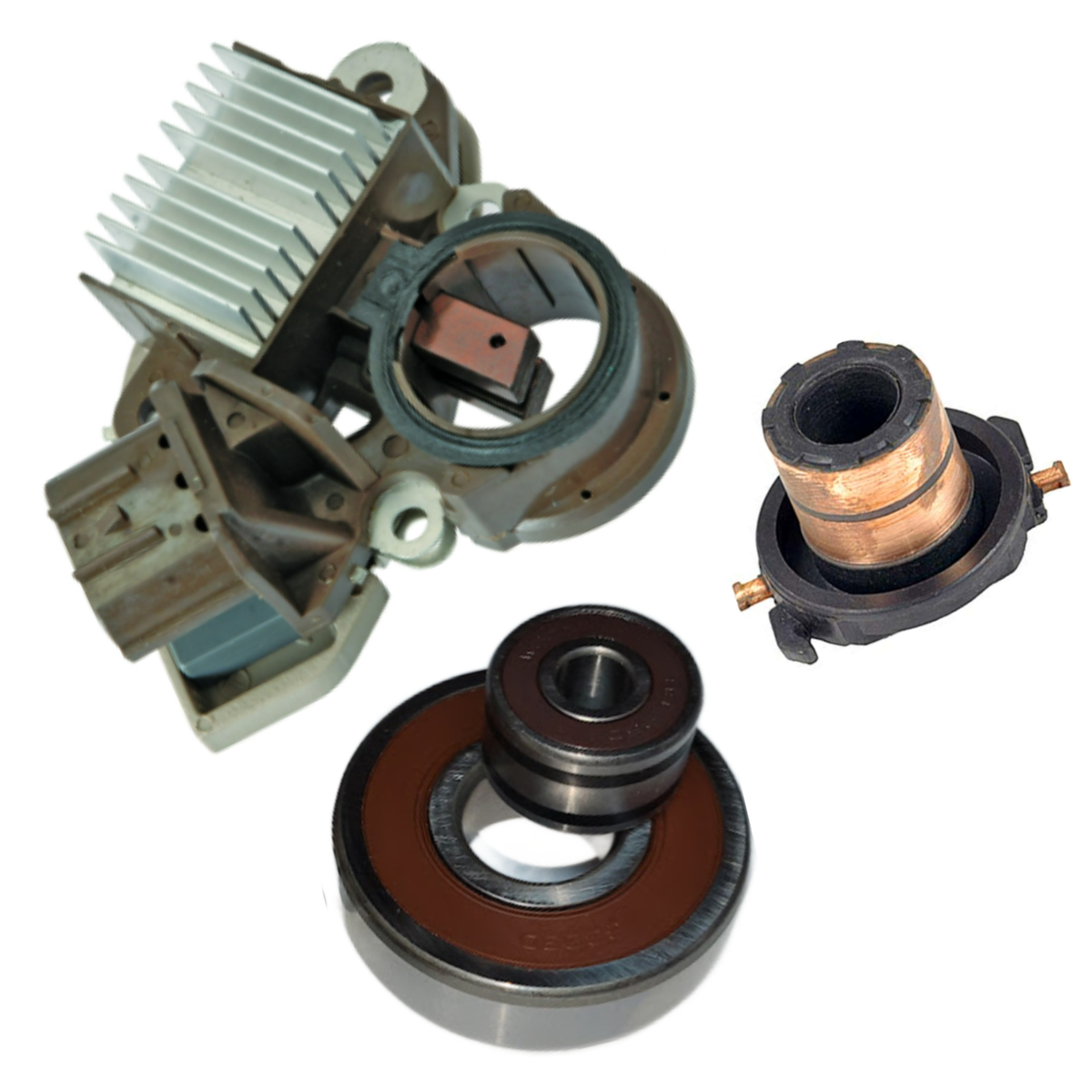

Alternator Rebuild Kit 2012-2013 Mazda 3 2.0L A2TJ1591 - 11635RK-A

Need to rebuild your vehicle's alternator? This premium rebuild component kit is engineered to meet or exceed original factory specs, ensuring a perfect fit and long-lasting charging performance.

🚘 Vehicle Application Details

• Mazda: 3 (2012-2013 L4 2.0L 1998cc)

🔍 Cross-Reference Alternator Assemblies (Fits These Units)

• Mazda OE: PE07-18-300
• Mitsubishi OE: A002TJ1591, A2TJ1591
• Bosch Reman / Service Europe: AL4242X, 0986UR6090
• Lester / PIC References: Lester 11635 | PIC 203-5477

🔧 Component-Specific Technical Data

⚡ Voltage Regulator Specs

• Technical Specifications: 12 Volt, A-Circuit, (N/C)-D-P Terminals, 14.4 Vset, Stator Activated, with Capacitor Plate

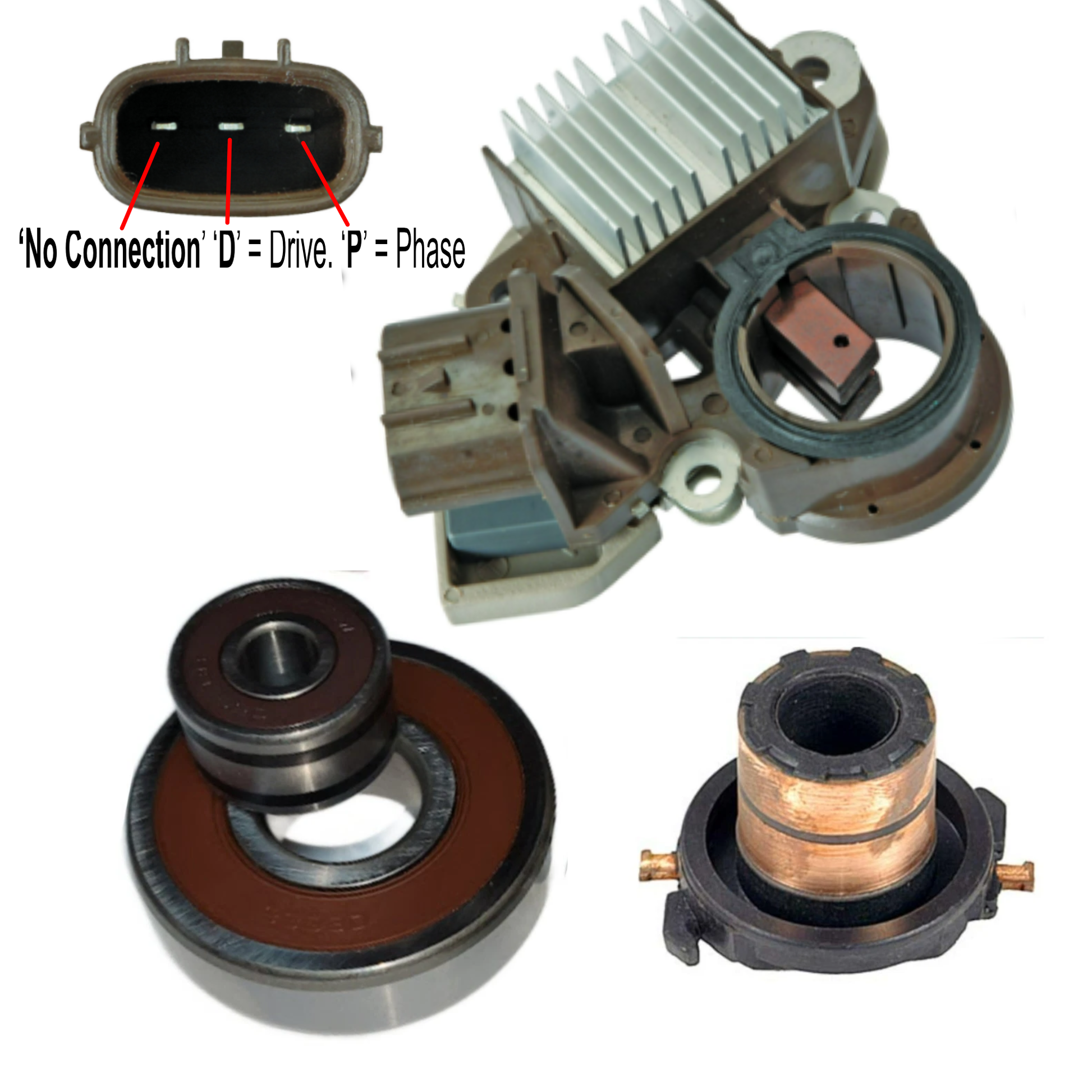

• Notes: 3-pin connector (only D-P are used; N/C = No connection, D = Drive, P = Phase). Field control unit that works with PCM to control voltage/output. Traditional test methods will damage D-P type regulators.
• Replaces OEM: Mazda AJ51-18-W70 | Mitsubishi A866X50572, 505, 592-8630T
• Aftermarket Crossovers: IM505, 230-48122, VRH2009-114, T52017, W085-270, 196-104, GNR-M063, 80033106

⚡ Slip Ring Specs

• Dimensions: 13.5mm ID x 22.7mm OD
• Interchange Numbers: W165-10, 193-501, 28-83852

⚡ Drive End Bearing (Front) Specs

• Industry Number: 54700 / 6303-2RS
• Dimensions: 17mm ID x 47mm OD x 14mm W
• Interchange Numbers: 6-303-4

⚡ Rotor SRE Bearing (Rear) Specs

• Industry Number: 52312 / SC8A05LHI
• Dimensions: 8mm ID x 23mm OD x 14mm W
• Interchange Numbers: 10-800-4
