Alternator Rebuild Kit 2013-16 3.6L SRX Equinox Terrain 104211-8160 -8161 -8162 - 11647RK-A

Cadillac SRX V6 3.6L 2013-2016
Chevrolet Equinox V6 3.6L 2013-2016 155 Amp, Clutch Pulley
GMC Terrain V6 3.6L 2013-2016 155 Amp, Clutch Pulley

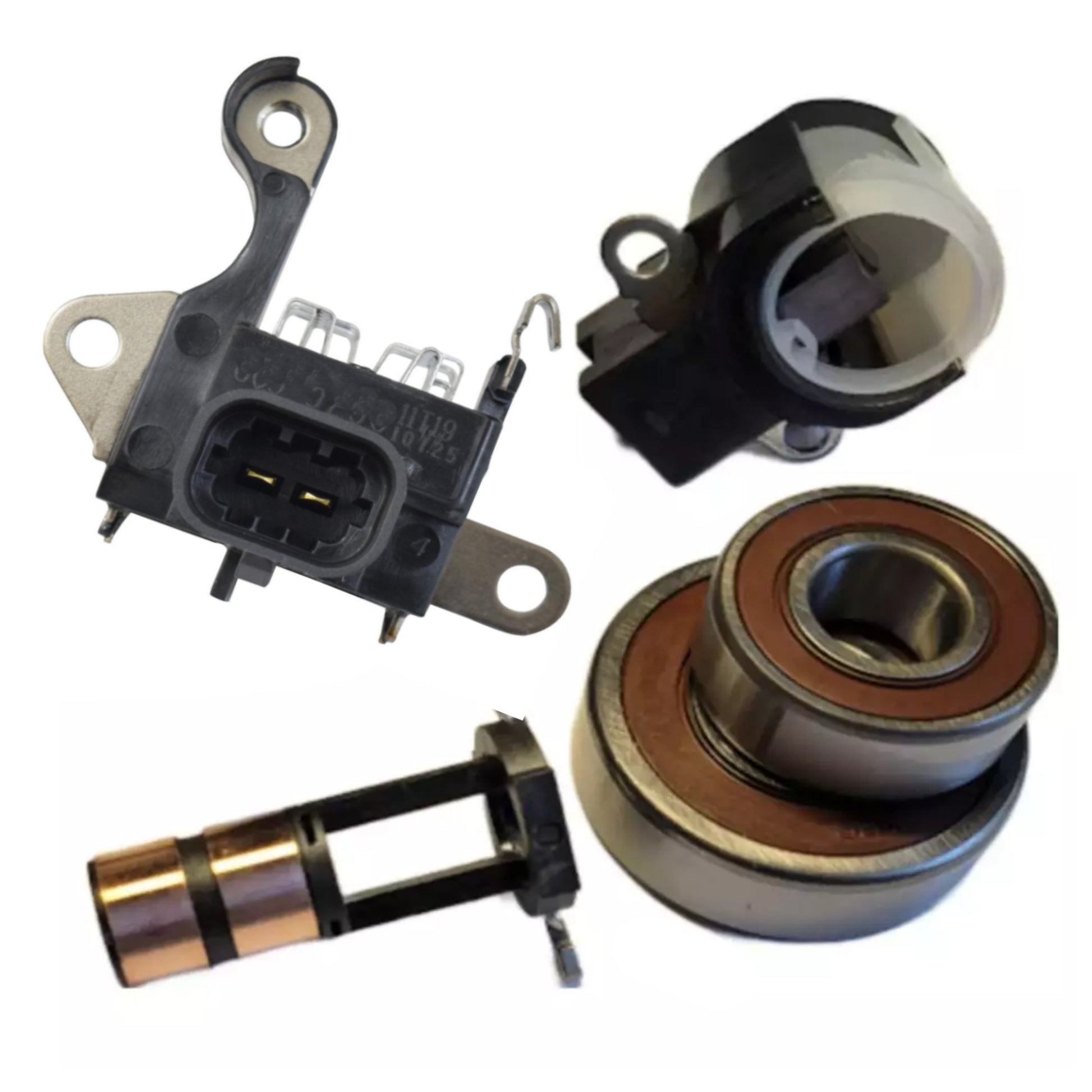

• Voltage Regulator • L is not traditional lamp terminal • Voltage set controlled by vehicle RVC system • L(RC) terminal is computer RVC(PWM) connection, not Lamp (Regulator damage if tested as Lamp connection) Replacing Denso 126600-3290, 126600-3580, 3290, GC3 3290, GC3A 3580, Other 8008-4721, 8008-4509, GNR-N088, T7329, 216-076, 230-52143, AND6172, VRH2005-163, W085-320 - IN6329

• DE Drive End Bearing 54700 17x47x14mm 6303-2RS, Replacing 1900905164 - 6-303-4W

• SRE Rotor Bearing 53514 15x35x13mm 279, Replacing 949100-2790, 949100-3980, 949100-4440 - 10-2021-4W

• Brush Holder Assembly with Brushes Ref# 021620-3020, -3030, -3040 - 39-8206

• Slipring 5.8mm ID • 14.3mm OD Slip Ring • 11mm LL // Denso ... Other  7190-904B, 313-52004, W165-11, W16511, AND3505 - 28-82854

Alternator Manufacturer and Factory #s
Bosch Remanufactured AL8838X
Denso 104211-8160, 104211-8161, 104211-8162
GM 22865612, 22988006
Lester 11647
J&N 400-52492
PIC Picture ID 290-5681
Remy Light Duty 20016
Wilson 90-29-5823
